UBNT UISP Fiber XG

UBNT UISP FIBER XG is CPE on the XGS/XG-Pon solution. The device separately is used to convert optics on metalics and can only Bridge mode, not router mode.More information

Producer

Ubiquiti

Part No.

UISP-FIBER-XG

Code

00073939

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

88.49 EUR exc. VAT

VAT

21%

Your price inc. VAT

107.07 EUR inc. VAT

Ask for a better price

Description

UBNT UISP FIBER XG is a CPE on the XGS/XG-Pon solution. The device separately is used to convert optics on metalics and can only Bridge mode, not router mode.
For connecting XGS/XG-Pon network, a 1x SC connector with grinding APC and a maximum speed of 9.95 GB/s downstream and 2.44 GB/s upstream at a distance of up to 20 km.
Transmitting power is in the range of 2 to 7 dbm and reception sensitivity-9 to-27 dBm. The LAN is used 2.5G LAN port with 24V POE-in support. The unit management is done using the UISP application. The unit comes with 5 V/3 and USB-C adapter.

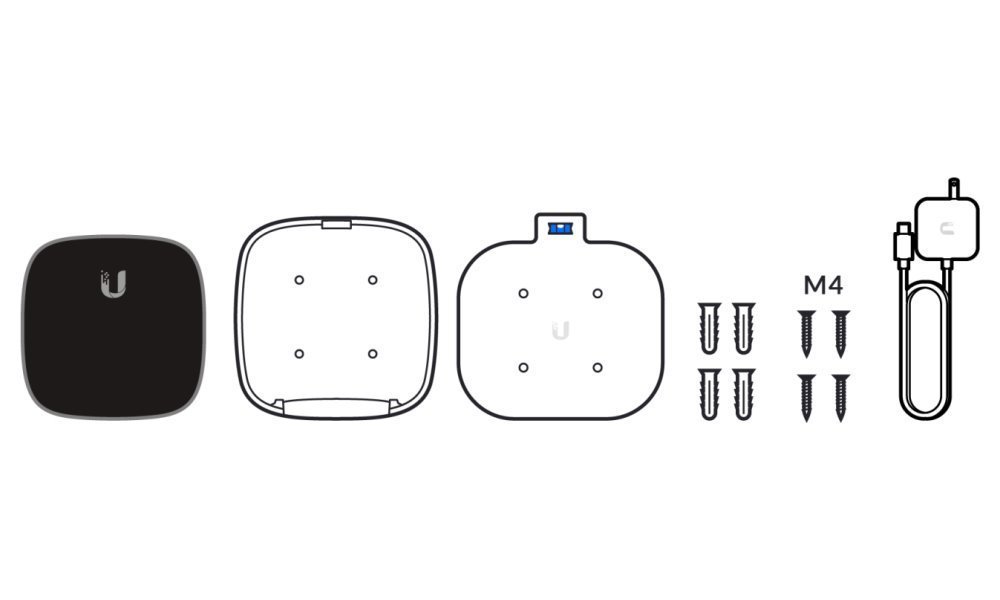

Package content:

unit
USB-C 5 power adapter in DC/3 and
holder and mounting set

Parameters

Ethernet parameters
Consumption	6
PoE Type	Input
Power Supply	PoE
RAM	256 MB
Transmitting power (dBm)	2 až 7
Gigabit LAN	yes
Network interface (Mbps)	100/1000/2500
Number od RJ45 ports	1
Optical parameters
Downstream (Mbps)	9950
Optical connector type	SC
Počet PON portů	1
Polishing type	APC
Reach (km)	20
Upstream (Mbps)	2440
Wavelength RX (nm)	1577
Wavelength TX (nm)	1270

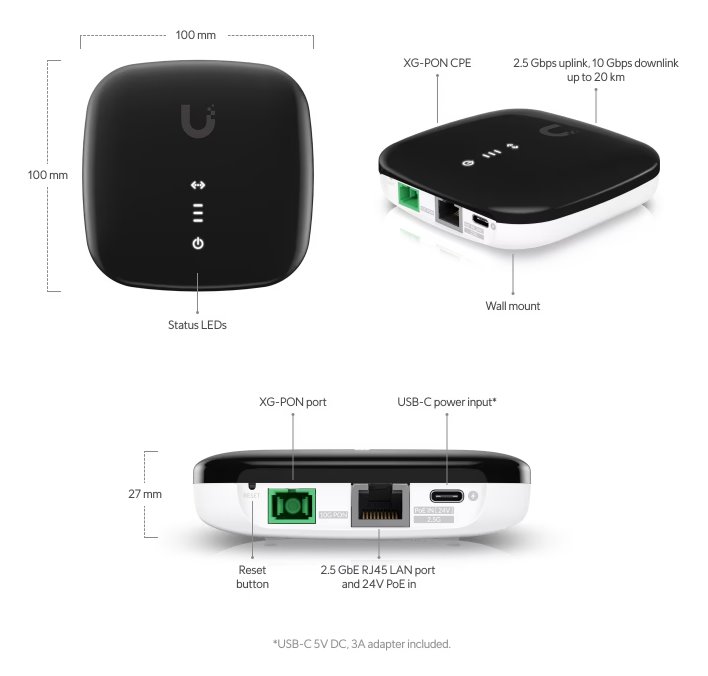

Physical parameters
Depth (mm)	100
Height (mm)	27
Operating Temperature	-15° až +45 °C
Weight (kg)	0.220
Width (mm)	100
