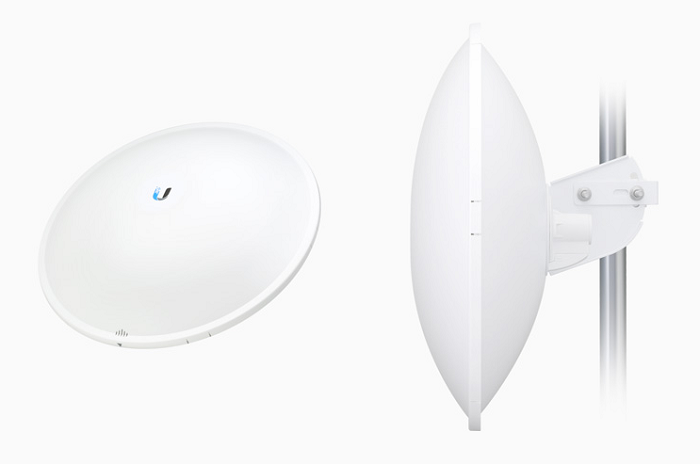

UBNT PowerBeam5 AC ISO, 400 mm, airMAX, 5 GHz AC, 2x 25 dBi

PBE-5AC-400-ISO It is a suitable device for PTP connections with the 25 dBi line that achieves very high transfer speeds and stable connections even in a guaranteed environment. It is only compatible with other Airmax AC products and of course for outdoor use, ideally in combination with direction antennas. Thanks to the possible settings Channel width 10/20/30/40/50/60 and 80 MHz You can achieve real permeability to 450 Mbps+ when using 256 qam

Inside the powerbeam, there is a powerful MIPS processor ATHEROS 74KC with a 560 MHz frequency, which is seconded by 64 MB DD2 and 16 MB flash memory. The network port supports 10/100/1000 Ethernet and can be powered by the passive Gigabit PoE 24 V/0, and an adapter included (active POE according to 802.3AF is not supported).

A new operating system Airos 7 is also a novelty for all Airmax AC Protocol products. This system renders the constellation diagram and SNR in real time.

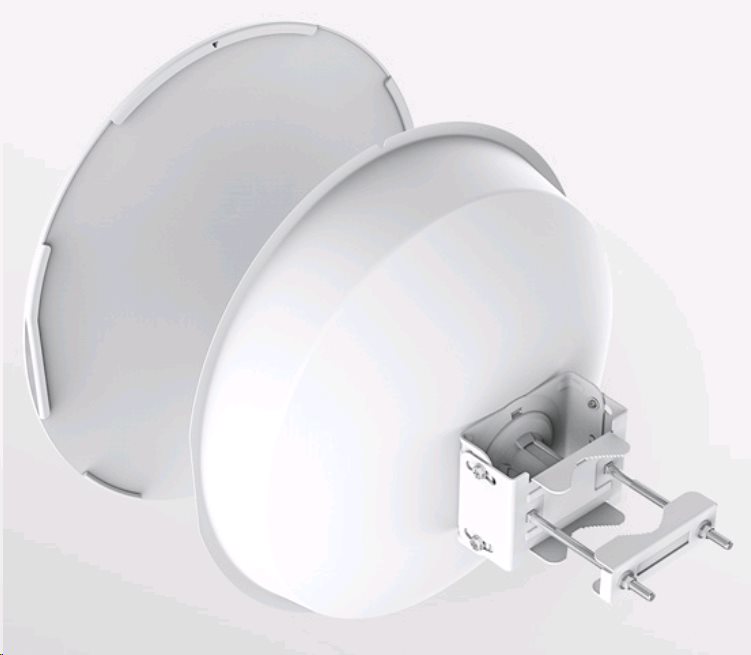

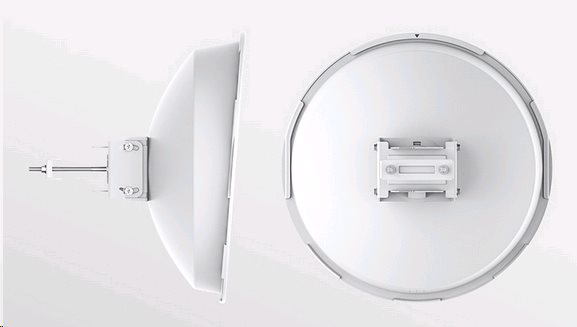

Thanks to the innovative mechanical construction, the antenna has a more robust holder, collar and a plastic plastic part for the racking of the emitter. Everything is maximized for an even better signal/noise distance to highly guaranteed areas.

parameters:

name	value
CPU:	560 MHz (MIPS 74kc)
Frequency[GHZ]:	5
Gigabit LAN:	Yes
depth[mm]:	261
Weight[g]:	3 220
LAN:	(1) 10/100/1000 Mbps
collar:	Yes
Max. Energy consumption[W]:	8.5
Power via POE:	20 .. 26 in DC
Operational mode:	Client, Repeater, AP Router, Access Point, Client Router (Wisp)
Number of LAN ports:	1
Number of built-in antennas:	2
IPv6 support:	transparent (Bridge mode)
POE:	Input
operating temperature[° C]:	-40 to 70
WIFI transfer speed-5 GHz[mb/s]:	866
encryption:	WPA2 AES
width[mm]:	459
buttons:	Reset
Antenna type:	built-in
Memory Size[MB]:	64
Outdoor use:	Yes
default IP address:	192.168.1.20
default and password:	UBNT/UBNT
Output power 5 GHz[dbm]:	25
height[mm]:	459
WiFi Standards:	Airmax AC
antenna profit[dbi]:	25

Package content

device

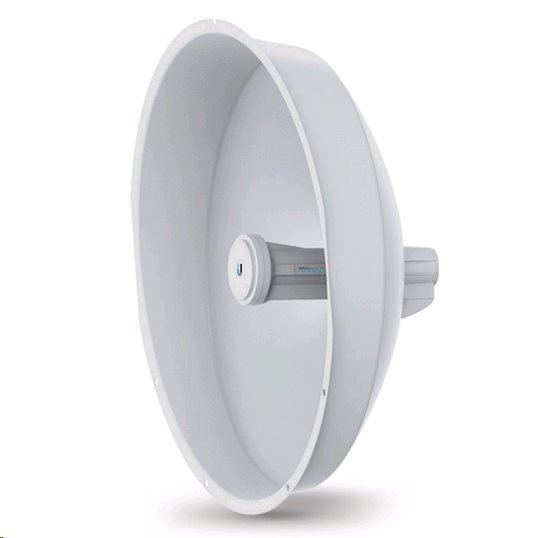

parabola

POE Power Source

power cable

plastic part for attaching the emitter

holder

Radom cover
