UBNT Horn-5-90, Sector PrimsAP antenna, 5GHz, 13dBi, 90°

Compare Facebook Set Watchdog

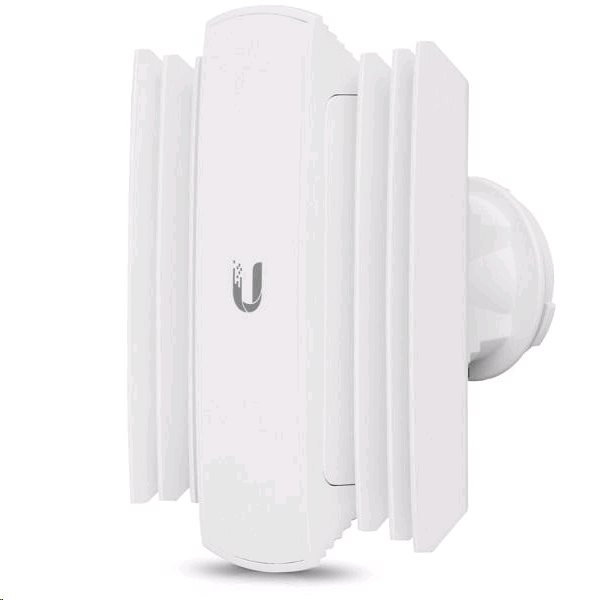

UBNT Horn-5-90, Sector PrimsAP antenna, 5GHz, 13dBi, 90°

; The PrismAP-5-90 sector antenna contains 13 dBi MIMO 2x2 antennas for the 5 GHz band with a symmetric 90 ° beam angle. Thanks to its excellent radiation characteristics and isolation of the surrounding signals, it is suitable for a disturbed urban ...More information

Producer

Ubiquiti

Part No.

Horn-5-90

Code

00033801

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

60.57 EUR exc. VAT

VAT

21%

Your price inc. VAT

73.29 EUR inc. VAT

Ask for a better price

Description

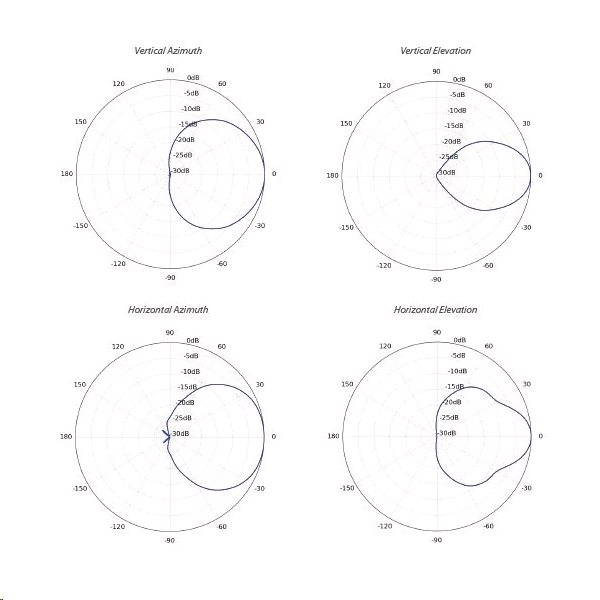

Sector antenna Prismap-5-90 contains 13 dBi antenna outside 2x2 for 5 GHz band with a symmetrical radiation angle 90 ° . Thanks to the great radiation characteristics and insulation of the surrounding signals, it is suitable for a guaranteed urban environment.

The antennas have suppressed side and rear radiation lobes, no additional shading elements are needed. You will appreciate this when installing multiple units per mast.

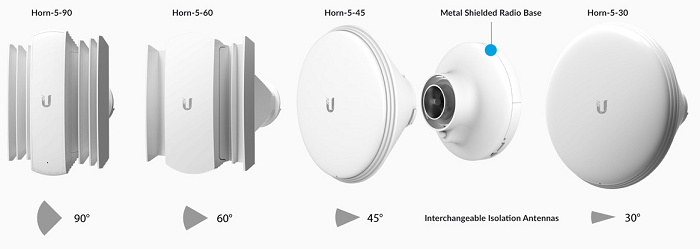

The Prismap antennas offer a scalable solution for any installation. The antennas can be easily and quickly replaced according to the location of the client units.

parameters:

name	value
Frequency (GHz):	5
Profit (DBI):	13
polarization:	V/H

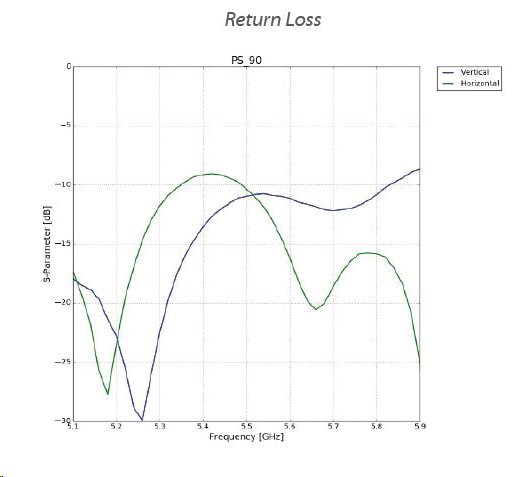

PSV:	<1,7
SPEED. angle-H/V. (°):	90 /90
Weight (kg):	0.92
Dimensions (mm):	152 x 187 x 113

Parameters

Physical parameters
Antenna gain 5 GHz (dBi)	13
Beam angle horizontal (°)	90
Beam angle vertical (°)	90
Connectors	Direct mount
Polarization	Horizontal / Vertical
VSWR	2.0
Depth (mm)	113.2
Design	Outdoor, Na stožár
Height (mm)	186.8
Weight (kg)	0.92
Width (mm)	152.1
Wireless parameters
Antenna type	Sector
Frequency	5 GHz
MIMO (5 GHz)	2x2
