UBNT Fiber XGS

Ubnt Fiber XGS is a CPE on the unit for XGS/XG-Pon solution with which you upload your network to 10 Gbit. The device separately is used to convert optics on metalics and can only Bridge mode, not router mode.More information

Producer

Ubiquiti

Part No.

UISP-FIBER-XGS

Code

00073940

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

125.74 EUR exc. VAT

VAT

21%

Your price inc. VAT

152.14 EUR inc. VAT

Ask for a better price

Description

Ubnt Fiber XGS ( UISP-FIBER-XGS) is the CPE on the XGS/XG-Pon solution with which you upload your network to 10 Gbit. The device separately is used to convert optics on metalics and can only Bridge mode, not router mode.
For connecting XGS/XG-Pon network, a 1x SC connector with grinding APC and a maximum speed of 9.95 GB/s downstream and 9.95 GB/s upstream at a distance of up to 20 km.
Transmitting power is in the range of 4 to 9 dbm and reception sensitivity-9 to-26 dBm. The unit management is done using the UISP application. The unit comes with 5 V/3 and USB-C adapter.

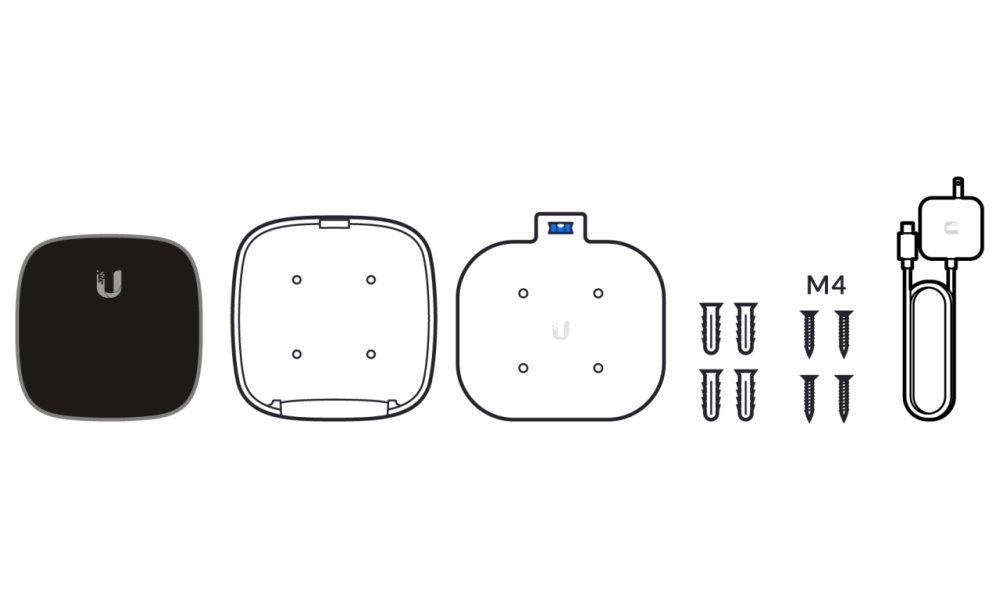

Package content:

unit
USB-C 5 power adapter in DC/3 and
holder and mounting set

Parameters

Ethernet parameters
Consumption	8
RAM	256 MB
Transmitting power (dBm)	4 až 9
Gigabit LAN	yes
Network interface (Mbps)	100/1000/2500/5000/10000
Number od RJ45 ports	1
Optical parameters
Downstream (Mbps)	9950
Optical connector type	SC
Počet PON portů	1
Polishing type	APC
Reach (km)	20
Upstream (Mbps)	9950
Wavelength RX (nm)	1577
Wavelength TX (nm)	1270

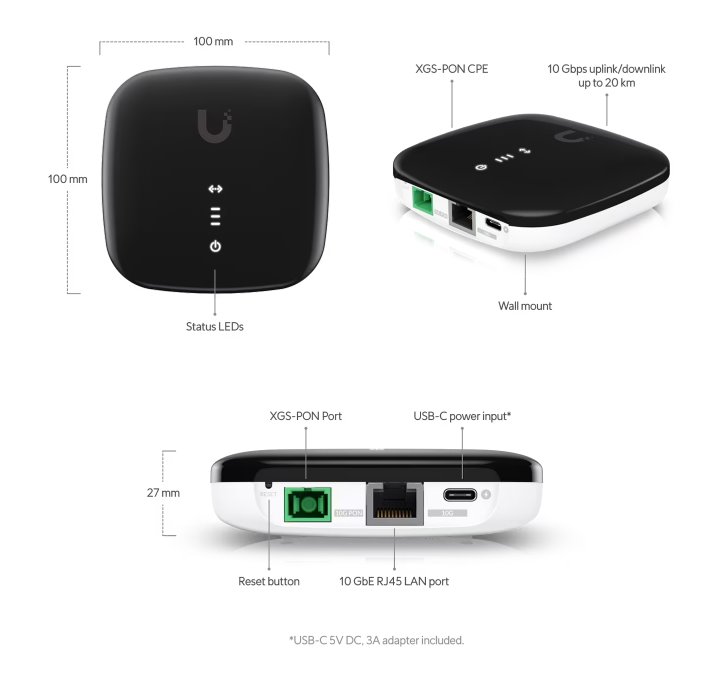

Physical parameters
Depth (mm)	100
Height (mm)	27
Operating Temperature	-15° až +45 °C
Weight (kg)	0.220
Width (mm)	100
