UBNT AM-5G20-90, Sector antenna AirMAX, 5GHz, 2x2 MIMO, 20dBi, 90°
Compare Set Watchdog

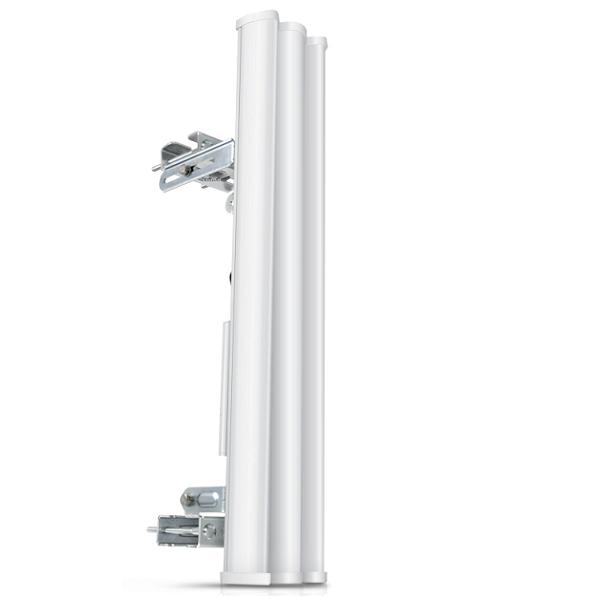

UBNT AM-5G20-90, Sector antenna AirMAX, 5GHz, 2x2 MIMO, 20dBi, 90°

Two-polarization sector antenna for 5 GHz band with the possibility of easy fastening the unit thanks to the Rocket Kit.More information

Producer
  Ubiquiti

Part No.


AM-5G20-90


Code
 00010955
Warranty
24 Month
Your price exc. VAT
104.03 EUR exc. VAT
VAT
21%
Your price inc. VAT
125.88 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    It uses both horizontal and vertical polarization, thus replacing two separate antennas and can be easily created, for example, an access point with high permeability. The antenna is also supplied with accessories for installation and waterproof connection with the Rocket M5.

    Thanks to the built-in mounting system, the so-called rocket kit can be mounted directly on this antenna without the need to install additional accessories. Installation is designed for a mast with a diameter of 30 to 80 mm.

    Parameters

    Antenna gain (dBi) 20
    Beam angle horizontal (°) 91
    Beam angle vertical (°) 85

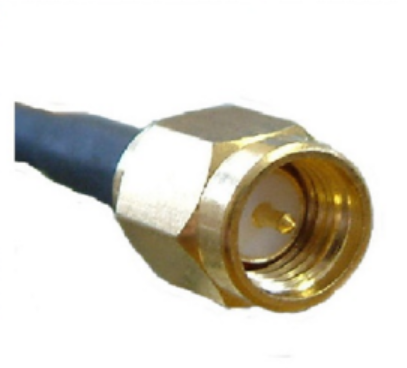

    Connector type RSMA female
    Polarization Horizontal / Vertical
    Properties Rocket Kit
    Radom no
    VSWR 1.5

    Physical parameters

    Depth (mm) 70
    Design Outdoor, Na stožár
    Height (mm) 700
    Weight (kg) 5.9
    Width (mm) 135

    Wireless parameters

    Antenna type Sector
    Frequency 5 GHz
    MIMO 2x2
    WiFi Standards airMAX
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads2

    Datasheet.pdf Format pdf (7 258.6 kB) Download
    Uživatelská příručka.pdf Format pdf (1 891.6 kB) Download
