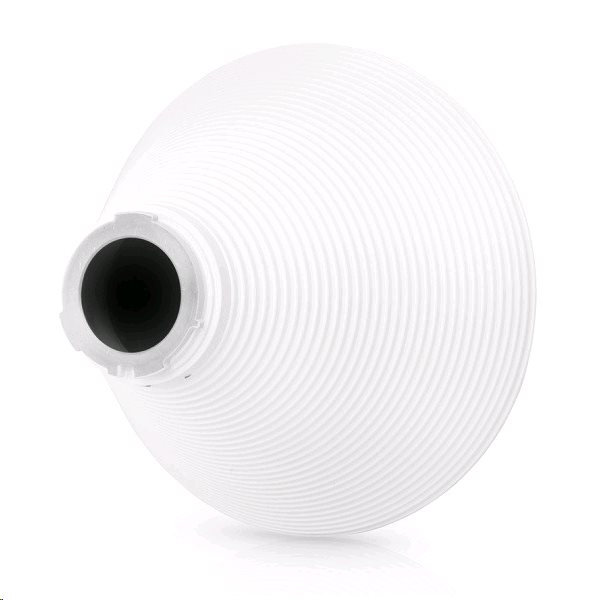

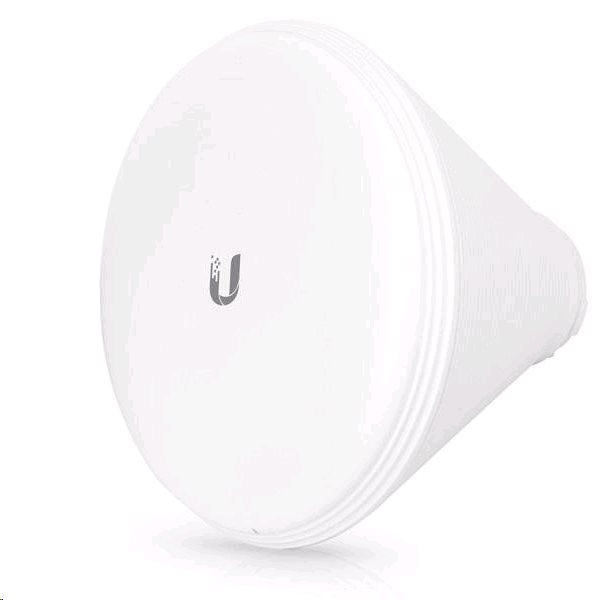

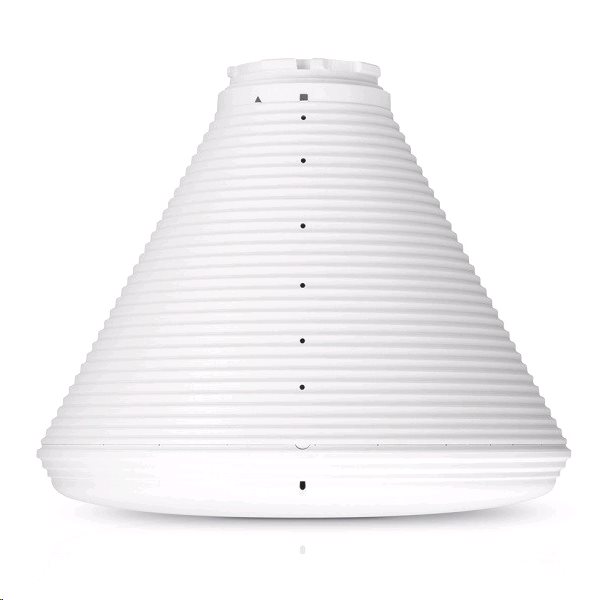

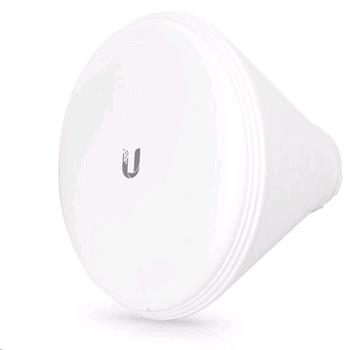

UBNT airMAX PrismStation Horn

UBNT Airmax PrismStation Horn is a sector antenna with a profit of 19 dBI outside 2x2 for 5 GHz band with a symmetrical radiation angle of 30 °. Thanks to the great radiation characteristics and insulation of the surrounding signals, it is suitable for a guaranteed urban environment.More information

Producer

Ubiquiti

Part No.

Horn-5-30

Code

00033799

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

60.57 EUR exc. VAT

VAT

21%

Your price inc. VAT

73.29 EUR inc. VAT

Ask for a better price

Description

Ubnt Airmax PrismStation Horn (Horn-5-3) is a sector antenna with 19 dBi antenna outside 2x2 for 5 GHz with a symmetrical radiation angle 30 ° . Thanks to the great radiation characteristics and insulation of the surrounding signals, it is suitable for a guaranteed urban environment.

The antennas have suppressed side and rear radiation lobes, so no additional shading elements are needed. You will appreciate this when installing multiple units per mast.

The Prismap antennas offer a scalable solution for any installation. Antennas can be easily and quickly replaced according to the client units.

Parameters

Physical parameters
Antenna gain 5 GHz (dBi)	19

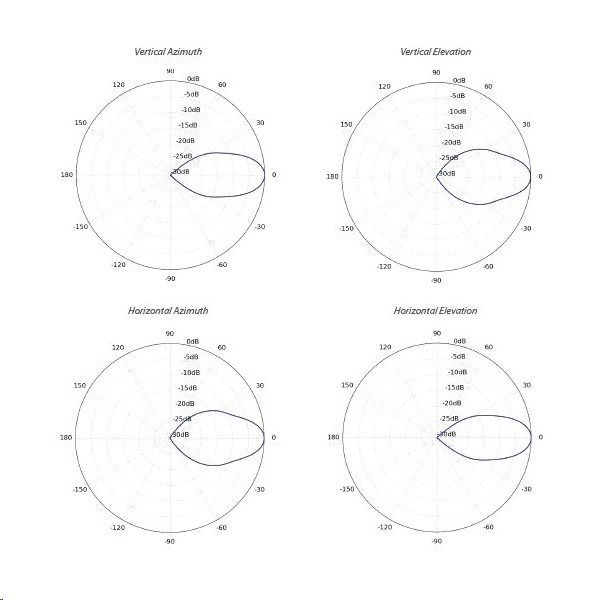

Beam angle horizontal (°)	30
Beam angle vertical (°)	30
Connectors	Direct mount
Polarization	Horizontal / Vertical

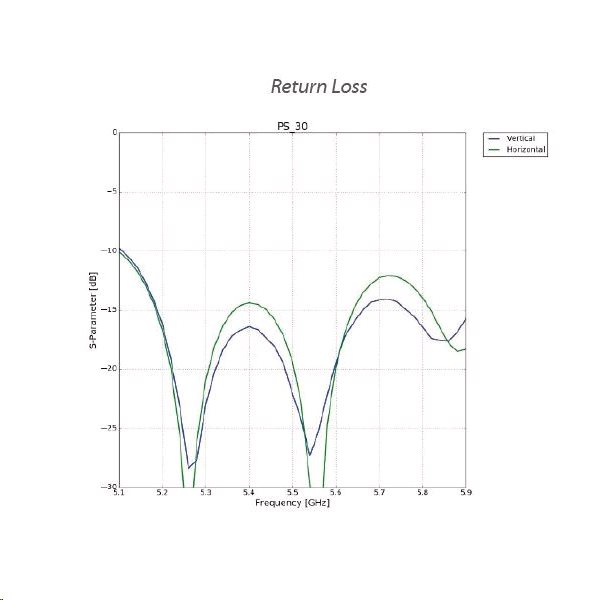

VSWR	1,7
Depth (mm)	184.2
Design	Outdoor, Na stožár
Height (mm)	221.4
Weight (kg)	1.1
Width (mm)	221.4
Wireless parameters
Antenna type	Sector
Frequency	5 GHz
MIMO (5 GHz)	2x2
