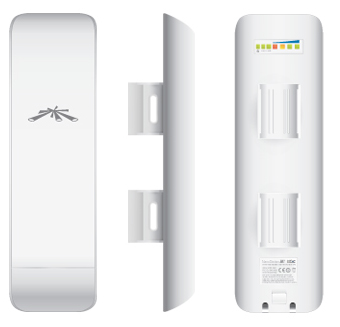

UBNT airMAX NanoStation M5, 5 GHz
UBNT Airmax Nanostation M5 is a high-performance outdoor unit for 5 GHz zone with 2 integrated antennas and 802.11 support.More information
NSM5
Ask for a better price
Parameters
| Antenna gain 5 GHz (dBi) | 16 |
| Consumption | 8 |
| CPU - frequency (MHz) | 400 |
| Encryption | WPA2 AES |
| IPv6 support | Transparent (Bridge mode) |
| Operating systém | airOS |
| Počet vestavěných antén | 2 |
| Polarization | Horizontal / Vertical |
| Power Supply | PoE |
| Processor | Atheros MIPS 24KC |
| RAM | 32 MB |
| Speciální funkce | PoE out |
|
Ethernet parameters |
|
|---|---|
| Network interface (Mbps) | 10/100 |
|
Physical parameters |
|
| Depth (mm) | 31 |
| Design | Outdoor |
| Height (mm) | 294 |
| Operating Temperature | -30° až +75°C |
| Počet LAN portů | 2 |
| Weight (kg) | 0.4 |
| Width (mm) | 80 |
|
Powering |
|
| Počet PoE Out portů | 1 |
|
Wireless parameters |
|
| Antenna type | Vestavěná, Sector |
| Frequency | 5 GHz |
| MIMO (5 GHz) | 2x2 |
| Operating mode | AP, Client, Client Router (wisp), AP Router |
| Vysílací výkon 5 GHz [dBm] | 23 |
| WiFi Standards | airMAX, WiFi 4 (802.11n) |
Do you need help?
We will help you with product selection or technical problems.
Ing. Jan Stejskal
Product managerProducts classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
Ing. Jan Stejskal
Product managerDownloads2
Related products4
Related products
UbiBracket universal positioning bracket for wall or mast for all Loco and NanoStation
UbiBracket universal adjustable wall mount or pole for all NanoStation and LocoStation Home; Džák can be attached to the pipe diameter up to 60 mm
exc. VAT
inc. VAT
UBNT window or wall mount for NanoStation
Excellent plastic holder intended to places where it is not possible to drill through the suction cup so it can be mounted on the window. The bracket can be locked in all directions.
inc. VAT
exc. VAT
inc. VAT
UBNT universal antenna holder for all NanoStations and LocoStations
Introducing universal arm bracket (UB-AM) by Ubiquiti. Designed for mounting on walls or poles, UB-AM provides a versatile and robust solution for mounting all your devices.
exc. VAT
inc. VAT
UBNT ETH-SP-G2-Ethernet surge protector
UBNT ETH-SP-G2 is an overvoltage protection from Ubiquiti Networks for outdoor units. This is the effective protection of the device (including POE-powered devices) with a connection speed of up to 1 GBPS that allows you to redirect harmful electrostatic discharges and for example ...
inc. VAT
exc. VAT
inc. VAT
GPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel, Netherlands
support@ui.com
You could also need these products
| Code | Article name | Producer | Status | Availability | Price exc. VAT | Price inc. VAT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
00030836 | UBNT CRM point-Centralized device management AirMAX | Ubiquiti |
|
84.53 EUR exc. VAT | 102.28 EUR |
|
Last visited
Description
In all outdoor installations, it is necessary to use the shielded CAT5E cabling (FTP, SFTP) to guide the signal, and the Ethernet overvoltage protection is also recommended.

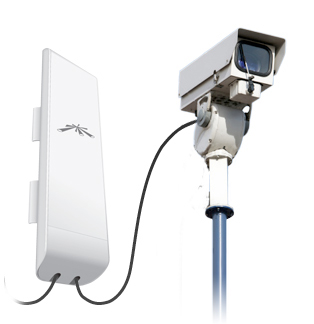

The device is powered by POE and can also supply other POE power devices using the second Ethernet port. It is possible to easily power remote devices such as cameras, AP/routers, sensors, etc. Power on the second port is adjustable in the user interface of the unit
Package content
alert
Ubiquiti does not apply to the device warranty damaged by electrostatic overvoltage.
The device should be adequately protected against induced electrostatic overvoltage or current shock waves by grounding so that the manufacturer integrated overvoltage protection is effective.
You do not respect the risk:
