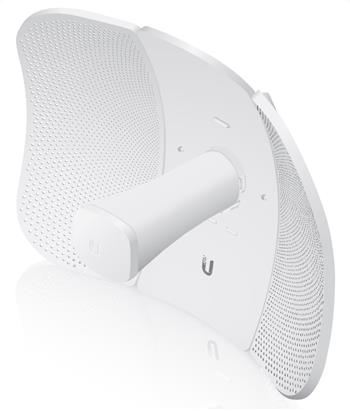

UBNT airMAX LiteBeam 5AC Gen2

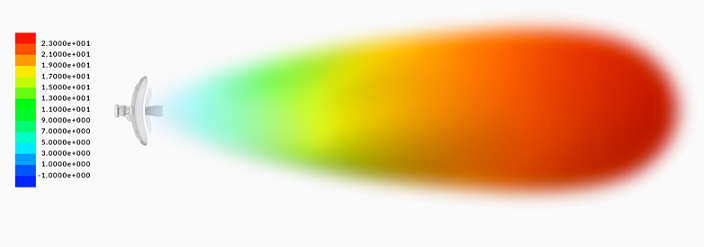

Ubnt Airmax Litebeam 5AC Gen2 is 2x2 outside the client station AC series for 5 GHz with 23 dBI , which achieves transfer rates to 867 Mbps. Airmax AC A is designed for outdoor use with the best price /power ratio in the 5 GHz band.



Inside the Litebeam is powerful MIPS processor ATHEROS 74KC , which is seconded 64 MB of memory . The network port supports 10/100/1000 Ethernet and can be powered by the passive Gigabit PoE 24 V/0.3 and the adapter included (active POE according to 802.3AF is not supported).

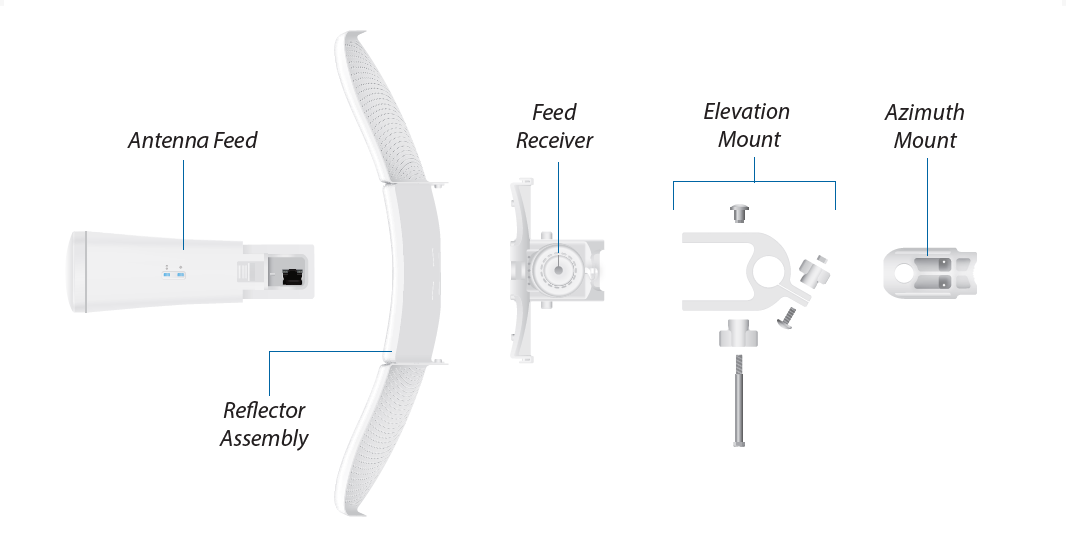

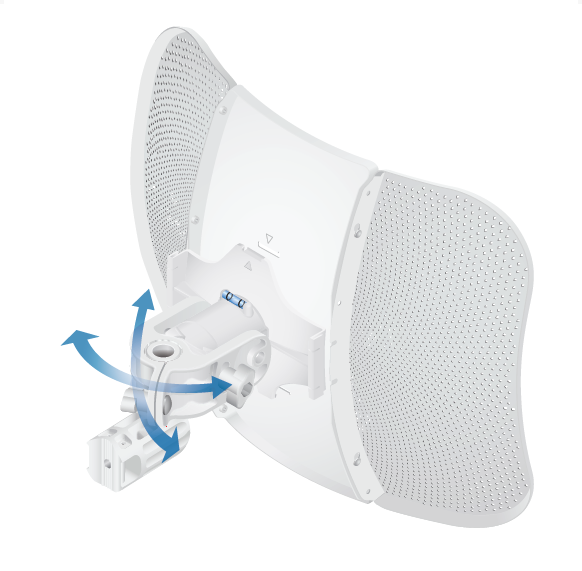

The 5AC-GEN2 Litebeam combines proprietary hardware and software technologies into a cost-available device. The advantages include InnerFeed technology, Airmax TDMA protocol, improved bracket and built-in spirit level allowing very fast and correct deployment, as well as very compact dimensions to save costs.

Technicians will appreciate the newly contained 2.4 GHz WiFi interface , which is used to adminit through mobile devices. There is a application of the nasobile for Android and iOS.

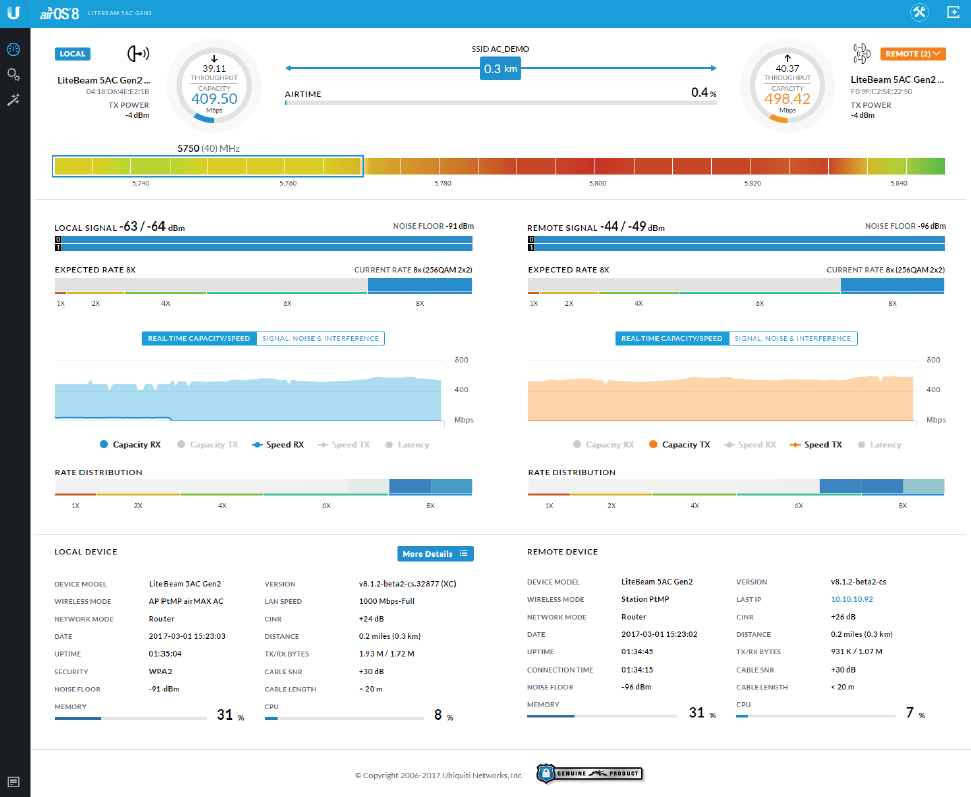

A new operating system Airos 8 is also a novelty for all GEN2 products with Airmax AC protocol. This system draws a constellation diagram and SNR value in real time.




Package content

• device
• antenna
• antenna holder
• POE Power Source (24 V DC /0.3 A)
• power cable
• Metal tightening tape
