UBNT airMAX AC 5 GHz, 31 dBi RocketDish
Compare Set Watchdog

UBNT airMAX AC 5 GHz, 31 dBi RocketDish

Ubnt Airmax AC 5 GHz, 31 dBi Rocketdish is an original two-dollarization 31 dBi antenna suitable for rocket units.More information

Producer
  Ubiquiti

Part No.


RD-5G31-AC


Code
 00032019
Warranty
24 Month
Your price exc. VAT
290.27 EUR exc. VAT
VAT
21%
Your price inc. VAT
351.23 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

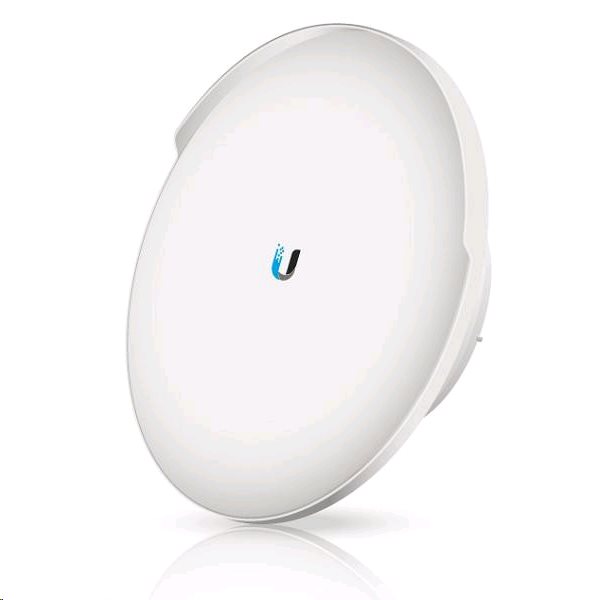

    Ubnt Airmax AC 5 GHz, 31 DBI Rocketdish (RD-5G31-AC) is a parabolic antenna with 2x2 outside in the 5 GHz band. It uses horizontal and vertical polarization, replacing two separate antennas and saving your costs associated with renting antennas. Thanks to the integrated radom, the installation is significantly easier and has better weather properties. The antenna is suitable for simple creation high-quality high-capacity PTP joints .

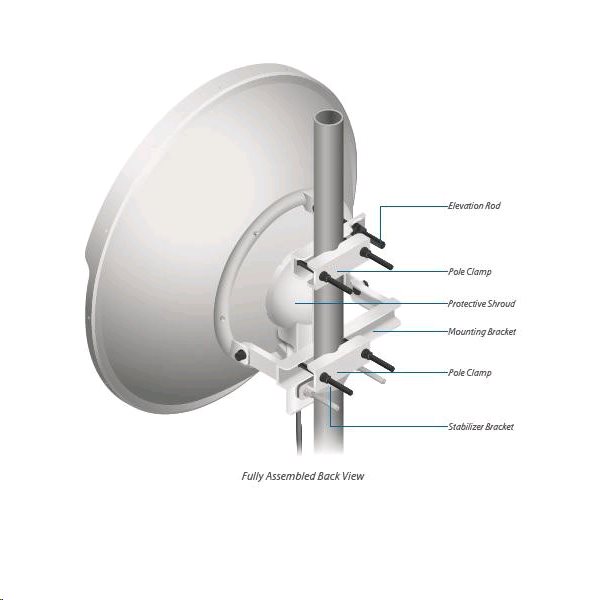

    Thanks to the built-in mounting system, the so-called rocket kit can be mounted directly on this antenna without the need to install additional accessories.

    The antenna also comes with waterproof accessories for connecting to Rocket 5AC-Lite

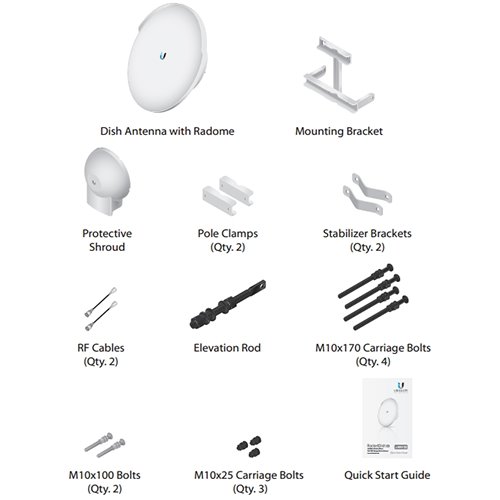

    • antenna with radom
    • mast holder + screws, nuts
    • Units protective cover
    • 2x RF cable

    Parameters

    Antenna gain 5 GHz (dBi) 31
    Connector type RSMA female
    Polarization Horizontal / Vertical
    Properties Rocket Kit, Radom
    VSWR 1,4

    Physical parameters

    Depth (mm) 349
    Design Outdoor, Na stožár
    Height (mm) 748
    Weight (kg) 7.6
    Width (mm) 748

    Wireless parameters

    Antenna type Directional, Dish
    Frequency 5 GHz
    MIMO (5 GHz) 2x2
