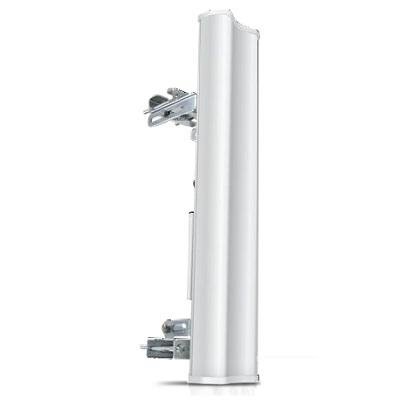

UBNT airMAX 2.4 GHz, 16 dBi, 90° Sector

Name: UBNT airMAX 2.4 GHz, 16 dBi, 90° Sector
Brand: Ubiquiti
SKU: 5226
Price: 127.43 EUR
Availability: InStock

UBNT AM-2G16-90 is a two-volume sector antenna for the 2.4 GHz band with built-in Rocket Kit.More information

Producer

Ubiquiti

Part No.

AM-2G16-90

Code

00017384

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

105.32 EUR exc. VAT

VAT

21%

Your price inc. VAT

127.43 EUR inc. VAT

Ask for a better price

Description

(2.3-2.7 GHz) with a profit of up to 16 dBI and 90 ° radiation angle. It uses horizontal and vertical polarization, replaces two separate antennas and can easily create a high permeability access point.

Thanks to the built-in mounting system, the so-called rocket kit can be mounted directly on this antenna without the need to install additional accessories. Simply the Rocket unit snap and you're done.

Package content:

antenna
Rocket Kit

Parameters

Physical parameters
Antenna gain (dBi)	16
Connector type	RSMA female
Polarization	Horizontal / Vertical
VSWR	< 1,5
Depth (mm)	79
Design	Outdoor
Height (mm)	700
Weight (kg)	3.9
Width (mm)	145
Wireless parameters
Antenna type	Sector
Frequency	2,4 GHz
MIMO	2x2
