UBNT airFiber 5 Mid-Band

Ubnt Airfiber 5 Mid-Band is a very advanced backbone joint technology in the 5 GHz band. With advanced HDD, Extended Range technologies and 1024 QAM modulation, it communicates at a speed of up to 1.2+ Gbps. The connection is operated in the free band of 5 GHz.More information

Producer

Ubiquiti

Part No.

AF-5

Code

00020023

Warranty

24 Month

Availability

Availability in stores

Order

Regular selling price exc. VAT

856.14 EUR

The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.

Your price exc. VAT

850.37 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 028.95 EUR inc. VAT

Ask for a better price

Description

Ubnt Airfiber 5 MID-BAND (AF-5) is a very advanced backbone connection in the 5 GHz band. With advanced HDD, Extended Range technologies and modulation 1024 QAM communicates at the speed to 1.2+ Gbps .

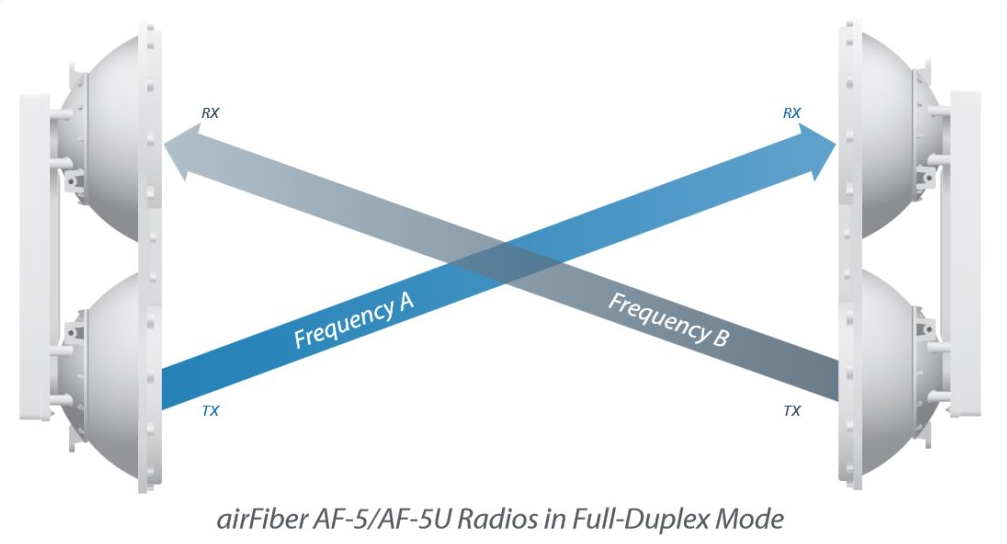

The connection is operated in a free band of 5 GHz and so you do not have to pay any license fees for its operation. In addition to standard TDD and FDD Airfiber support came up with the new HDD (HDD Division Duplexing) technology. The Airfiber 5 also brings new XRT (Extended Range Technology) technology to allow the maximum range of 100+ km . This, along with other innovative technologies and Airos F , forms a unique joint that is very easy to operate and installation, which achieves very high transfer rates at very low latencies.

The new Airfiber 5 also offers visual signaling of the status of the unit. The LEDs displays the states of the RJ 45 ports, GPS synchronization, current modulation and, among other things, the strength of the signal of both sides of the joint. There is also a signal of overloading the radio part. The signal strength is displayed by two segment displays. You will appreciate them especially when focusing on long distances.

main advantages of the connection:

Frequency range 5 470-5 950 MHz
high reliability of the connection
transfer speed up to 1.2+ Gbps
A large range of joints up to 100+ km depending on the regulation in the country
Intelligent QOS
easy installation
Unique robust modulation QPSK XRT for reliable connection even under unfavorable conditions and long distances
GPS synchronization
Canal width 10, 20, 40 and 50 MHz
modulation up to 1024 qam
sophisticated visual signaling on the back of

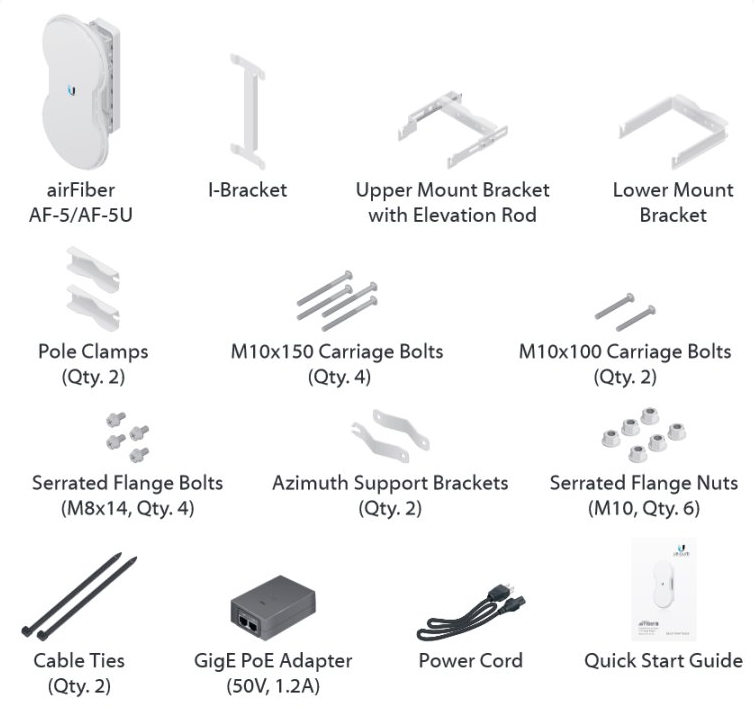

Package content

device
holder
PoE power adapter
power cable
2x tightening tape

Parameters

Ethernet parameters
Antenna gain 5 GHz (dBi)	23
Consumption	40
Front rear ratio (dB)	70
IPv6 support	Transparent (Bridge mode)
Počet vestavěných antén	4
Power Supply	PoE
Properties	GPS modul
Sensitivity (dBm)	-95
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	281
Design	Outdoor, Na stožár
Height (mm)	938
Operating Temperature	-40° až +55°C
Počet LAN portů	2
Weight (kg)	16
Width (mm)	468
Wireless parameters
Antenna type	Vestavěná
Frequency	5 GHz
MIMO (5 GHz)	2x2
Vysílací výkon 5 GHz [dBm]	27
WiFi transfer rate - 5 GHz [Mbps]:	1280

All parameters Less parameters

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

+420 601 570 595

stejskal@vanco.cz

Products classification

Product question

Do you need help?

We will help you with product selection or technical problems.

(+420) 246 035 451 Information and orders

Ing. Jan Stejskal

Product manager

(+420) +420 601 570 595

stejskal@vanco.cz

Downloads2

Uživatelská příručka.pdf Format pdf (8 563.8 kB) Download

Datasheet.pdf Format pdf (4 788.3 kB) Download
