UBNT airCube Home WiFi AP
Compare Set Watchdog

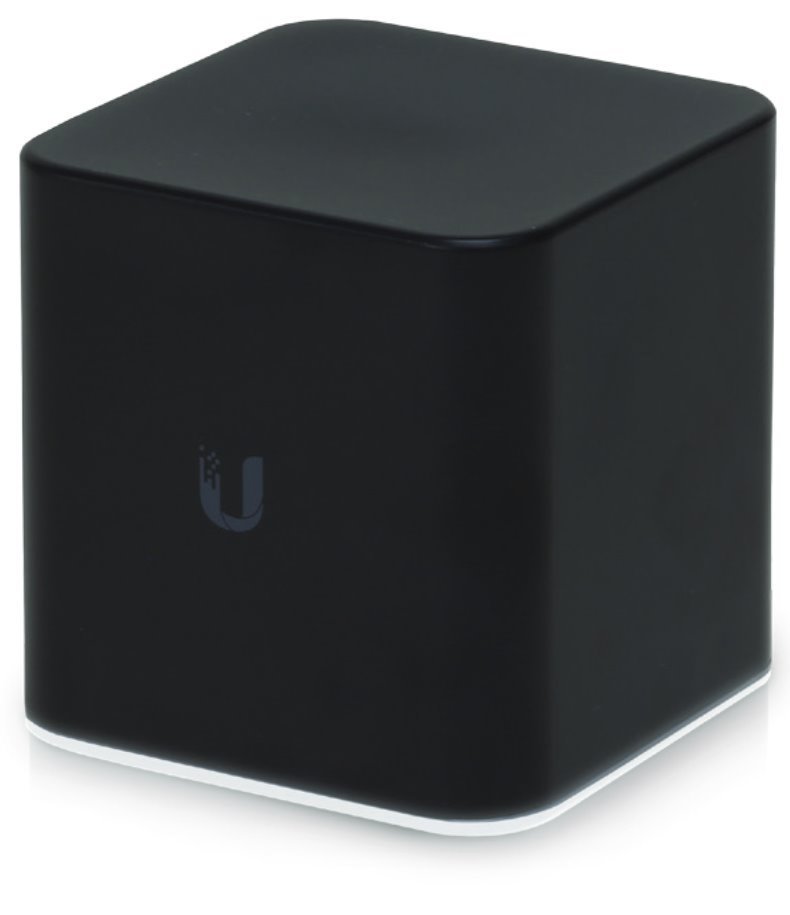

UBNT airCube Home WiFi AP

Ubnt AirCube Home WiFi AP is 2.4 GHz/5 GHz WiFi router with a very powerful and discreet antenna system. The router has 3x 10/100/1000 Mbps LAN (the first LAN port supports PoE in), 1x 10/100/1000 Mbps LAN/WAN with POE OUT support.More information

Producer
  Ubiquiti

Part No.


ACB-AC


Code
 00069918
Warranty
24 Month
Your price exc. VAT
57.50 EUR exc. VAT
VAT
21%
Your price inc. VAT
69.58 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

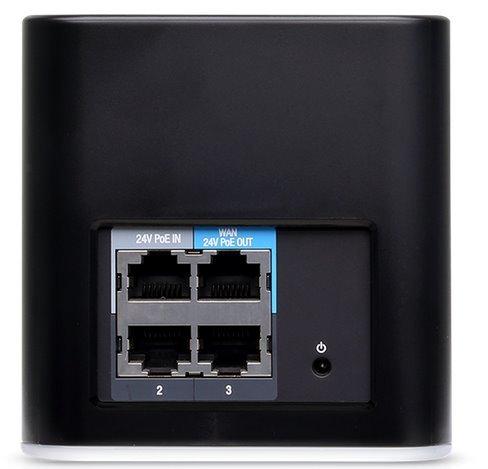

    Ubnt Aircube Home Wifi AP (ABC-A) is a home Access Point/router with a modern design and a very powerful and discreet antenna system hidden under a plastic chassis. The body of the router in black matt color is complemented by an elegant white backlit base. The router has 3x 10/100/1000 Mbps LAN (the first LAN port supports PoE in), 1x 10/100/1000 Mbps LAN/WAN with POE OUT support, power connector and 2x2 outside WiFi radio part with 300 Mbps (2.4 GHz) Mbps (5 GHz).

    power
    The router power can be solved both over 24 V power adapter, which is included in the package, as well as 24 in the passive injector connected to the LAN port, thus powering the outdoor unit such as: Loco, Powerbeam, Nanobeam and other client units.

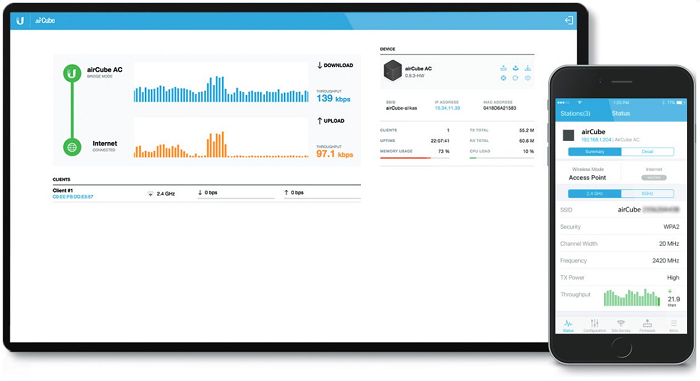

    Management
    • Web UI -Standard Settings via web browser
    • nasobile -mobile app
    • unms -advanced central management of all types of units with Ubiquiti Networks


    Package content:
    • device
    • power adapter 24 V/0.83 and

    Parameters

    Antenna gain (dBi) 4.5
    Consumption 8,5
    Encryption WPA2 AES
    Management Yes
    Počet vestavěných antén 1
    Power Supply DC, PoE
    Properties WAN
    Speciální funkce PoE out

    Ethernet parameters

    Gigabit LAN yes
    Network interface (Mbps) 10/100/1000

    Physical parameters

    Depth (mm) 90
    Design Indoor
    Height (mm) 88
    Operating Temperature -10° až +50 °C
    Počet LAN portů 3
    Weight (kg) 0.28
    Width (mm) 90

    Powering

    Počet PoE Out portů 1

    Wireless parameters

    Antenna type Omnidirectional, Vestavěná
    Frequency 2,4 GHz + 5 GHz
    MIMO (2,4 GHz) 2x2
    MIMO (5 GHz) 2x2
    Operating mode AP, Router
    Vysílací výkon 2,4 GHz (dBm) 22
    Vysílací výkon 5 GHz [dBm] 22
    WiFi Standards 802.11b/g, 802.11ac, 802.11n
    WIFI transfer rate - 2.4 GHz [Mbps] 300
    WiFi transfer rate - 5 GHz [Mbps]: 866
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads2

    Datasheet
    airCube_ACB-AC_ds.pdf Format pdf (18 657.0 kB) Download
    Uživatelská příručka
    airCube_ACB-AC_inst.pdf Format pdf (1 788.0 kB) Download
