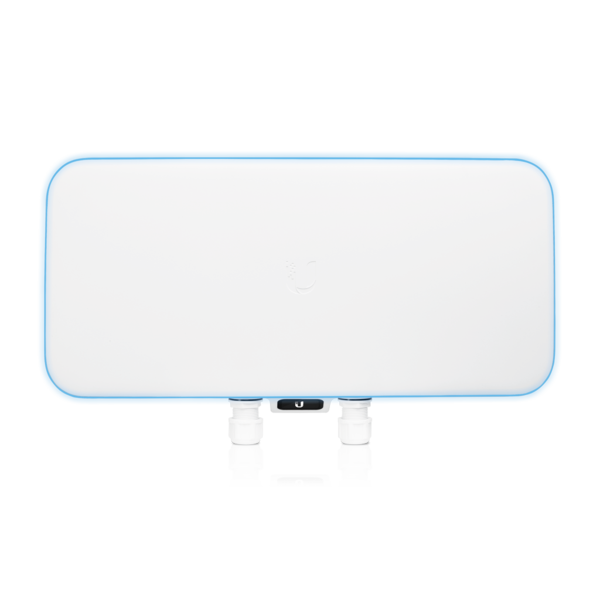

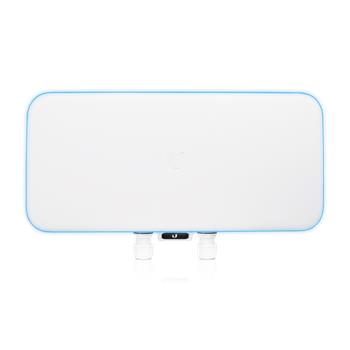

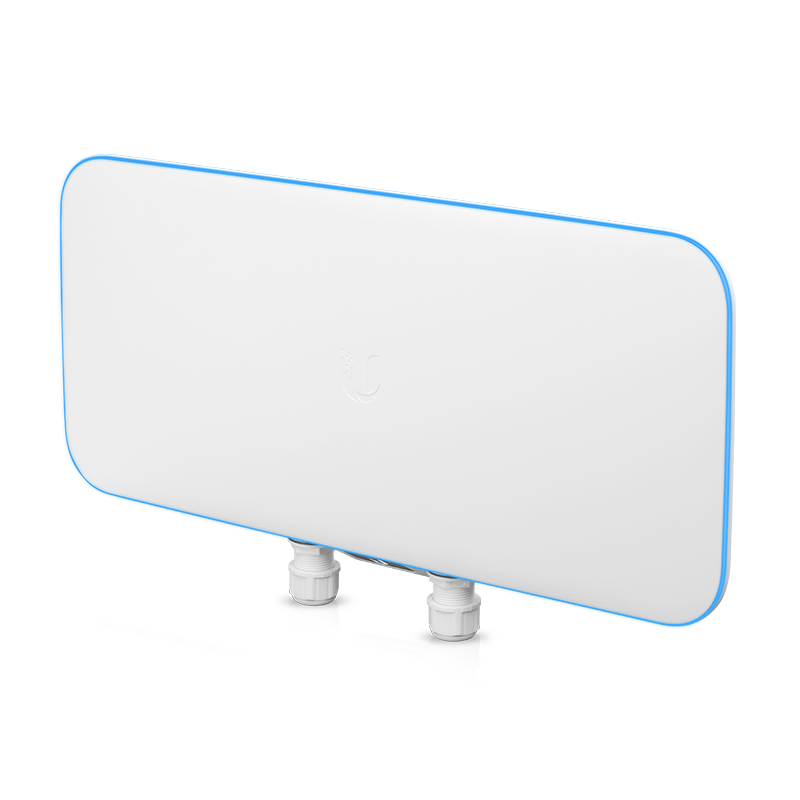

Ubiquiti UniFi WiFi BaseStation XG

Ubiquiti Unifi WiFi Basestation XG (UWB-XG) is a device that thanks to its performance and design is perfect for music festivals, concert and sports halls, cinemas, theaters. The unit design can be adapted to the environment to attract as little attention as possible. Even the LED indication diode is in RGB and can be set up software.

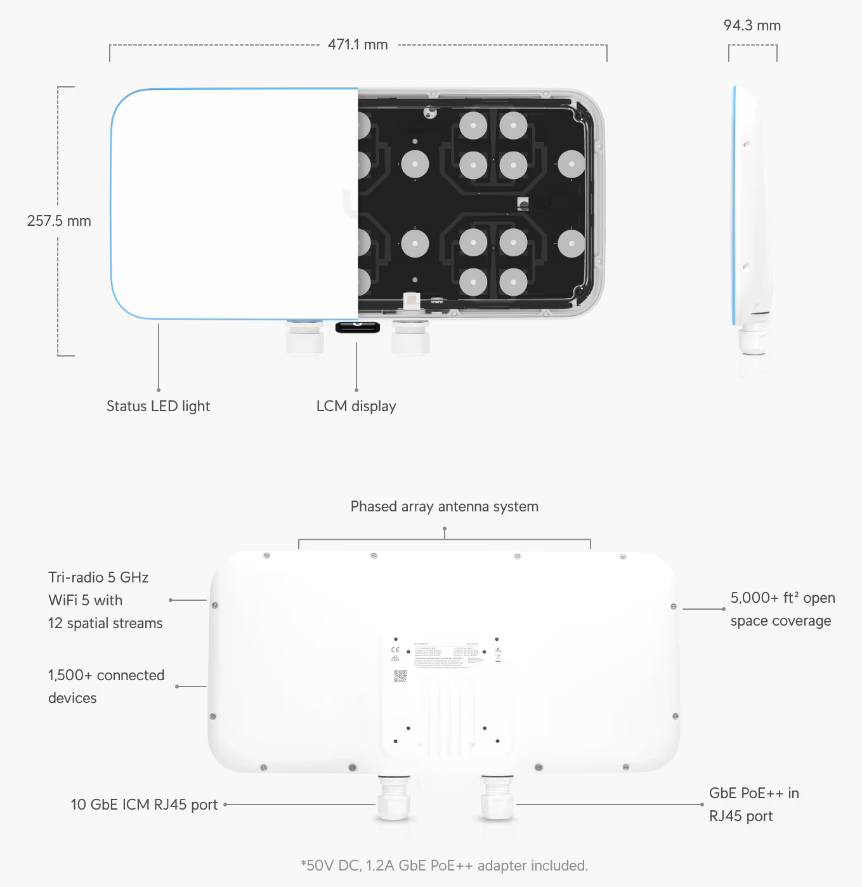

The unit has only 5GHz radio part that provides higher power and permeability than the 2.4 GHz band. The Dual-Mode Adjustable Antenna has a profit of 10 dBI at a 90 ° and 15 dBi at 50 ° . Thanks to 3 radio parts, the unit can serve to 1500 connected devices , the recommended maximum is 750 client devices. The maximum modulation rate thanks to the 4x4 MU-MIMO technology is 1733 Mbps for each radio part and there is also support for Beamforming technology. The data transfer of the Ethernet will ensure a pair of ports (1x10/100/1000 Mbps, 1x1/10 Gbps IMC) . power units can be active PoE 802.3BT or attached PoE adapter 50 V/1.2 and with gigabit port.

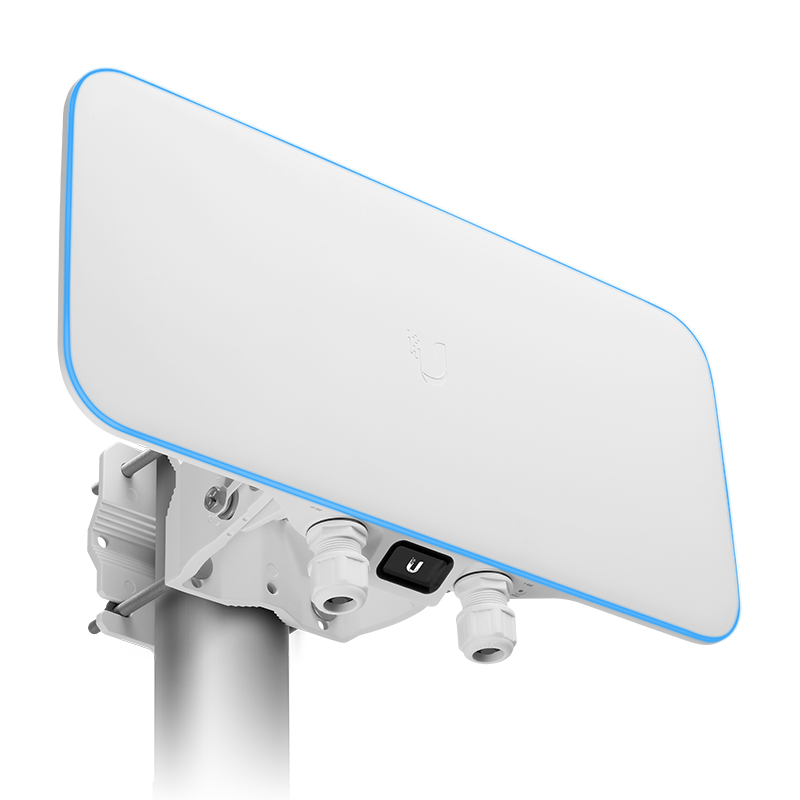

Basestation XG can be mounted on a mast or wall using the attached holders. A new feature is the installation on standardized VESA holders, there are openings for pitch 75 mm and 100 mm .

benefits MU-MIMO technology
Thanks to Mu-Mimo (multiple user-multiple in-multiple out) technology is UWB-XG capable of communicating with several devices at the same time:

• 4 clients 1x1
• 2 Clients 2x2
• 1 Client 2x2 + 2 clients 1x1
• 1 client 3x3 + 1 client 1x1

Central control of units
You need to download original software from the official website called Unifi Controller to drive the entire network. The indisputable advantage of Unifi Controller is that it is completely free without any restrictions! This central management will allow you to record maps and set basic parameters such as SSID, guest account, start page, operation statistics, and a list and status of associated clients always easily and quickly.

benefits of unifi solutions

• Wireless Supplink (fit where you can't get the data cable)
• to 8 SSID
• Detailed Statistics of Operation
• Guest Network
• Load Balance -Maintaining even load/switching clients
• voucher system

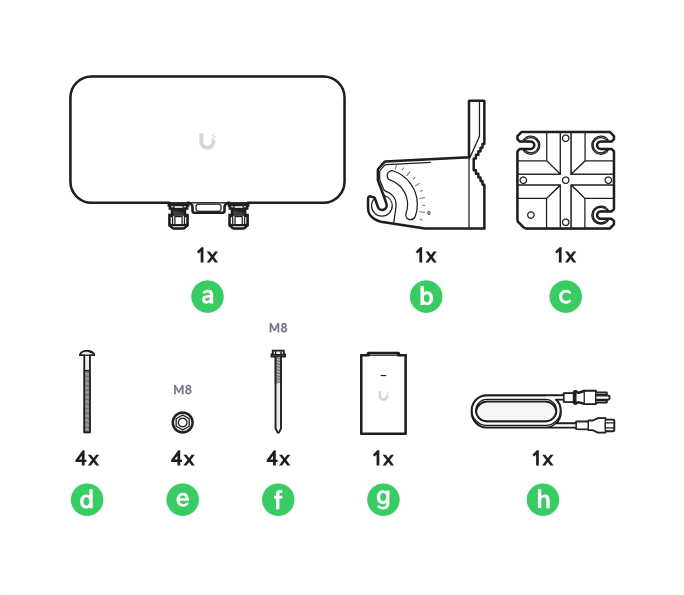

Package content

• device
• PoE Power Adapter 50 V /1.2 and
• power cable
• mast/wall holder
• a set of screws
