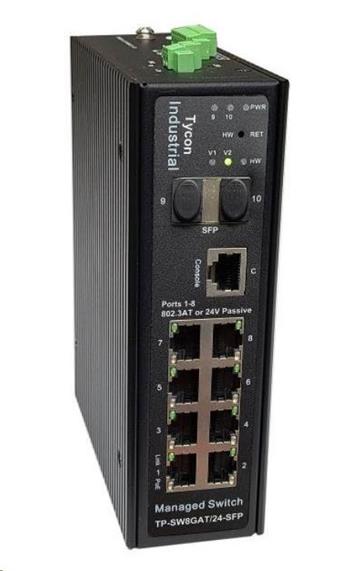

Tycon System TP-SW8GAT/BT/24-SFP, industrial PoE+ switch, 8x 1G Ethernet, 2x SFP

TP-SW8GAT/BT/24-SFP by the manufacturer Tycon Power is an industrial PoE+ managable switch with 802.3af/AT/BT and I passive PoE 24V. POE TIP can easily be via management switch, allowing one switch to power different technologies .

Switch is equipped with eight PoE+ (802.3af/AT/BT 30 W or passive 24V PoE) ports and two SFP 1G shafts. PoE ports are controlable through the web user interface . CLI, Telnet, SSH or SNMP protocols can also be used. In the interface it is also possible to set up and manage Layer 2+ Switch features such as QoS, Mac Management or Port Management.

key features:

• 8x POE+ (802.3af/AT 30 W), respectively. Passive Poe 24V
  • port 1-2 802.3AT or passive 24V POE, 30W
  • port 3-4 802.3BT 90W or 802.3AT 30W
  • port 5-8 802.3AT 30W
• 2x SFP 1G
• operation in industrial conditions
• Managing through a web interface or console port
• Installation on the DIN Rail or on the Wall

  parameters:

  Title:	value:
  interface:	8x shielded RJ45, 2x shielded SFP 1G, 1x Console Port
  ETH transfer rates:	10/100/1000 MB
  SFP Compatibility:	155M/1.25G, SM/mm
  Input power:	VIN 37VDC TO 57VDC ON DUAL INPUT WIRE TERMINAL (MAX WIRE SIZE 12AWG)
  own device collection:	Max. 3 w
  Switching Capacity:	20 Gbps
  Packet Forwarding Rate:	14.88 Mbps
  RAM/FLASH:	1GB /128 MB
  Operating temperature:	-40 ° C-+85 ° C
  Operating Moisture:	5-95# i6per# (non-contentment)
  Weight:	850 g
  Dimensions W x H x H (mm):	165 x 145 x 54
