Tycon System TP-SW5G, Gigabit PoE switch 5x port, 48V, 0.7A/port

Tycon System TP-SW5G, Gigabit PoE switch 5x port, 48V, 0.7A/port

Name: Tycon System TP-SW5G, Gigabit PoE switch 5x port, 48V, 0.7A/port
Brand: TYCON Power
SKU: 7662
Price: 198.80 EUR
Availability: InStock

Tycon Power Systems TP-SW5G-D is an industrial switch powered by DC voltage in the range of 12-57 VDC. The switch has 5x 10/100/1000 Mbps ports, each with a maximum current of 2A. PoE is designed according to standard 802.3 af/at. Wide temperature rang...More information

Producer

TYCON Power

Part No.

TP-SW5G

Code

00017743

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

164.30 EUR exc. VAT

VAT

21%

Your price inc. VAT

198.80 EUR inc. VAT

Ask for a better price

Description

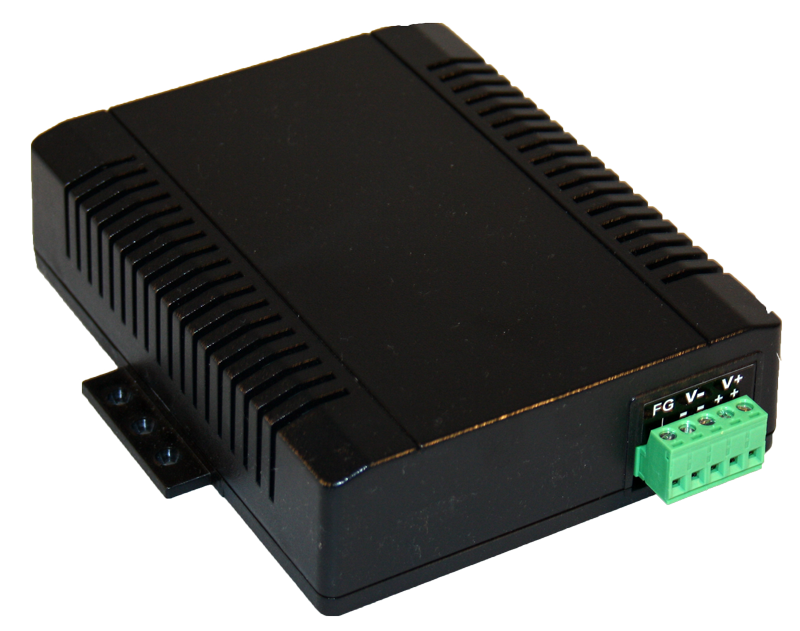

Tycon Power Systems TP-SW5G-D is an industrial switch powered by 48 VDC. Switch has 5x 10/100/1000 Mbps ports, each of which can be used up to 35 W. POE is solved according to the 802.3 AF/AT standard. The wide temperature range allows deployment even in demanding temperature conditions.

properties:

High Power 10/100/1000 PoE Switch
remote power supply via Ethernet cable to more than 100 m
2a per port
Integrated Surgery Protection
Automatic MDI/MDI-X Crossover
1k Self Learning Mac Address Table
compact size
Operation even under demanding temperature conditions
CE and FCC certification

app

wireless units and UBNT/microtics platforms
Powering several devices after one data cable

Specifications:
Ethernet Standard:	IEEE802.3/IEEE802.3U
POE STANDARD:	802.3AF/802.3AT
Number of ports:	1x Data/Poe Input and 4x Data/PoE, Automatic Crossover and Polarity
Better speed:	10 Mbps/100 Mbps/1000Mbps Auto-Negotiation
Data transfer speed:	148800PPS, 14880pps
Address Table:	1K MAC, self-learning
Connection:	shielded RJ45
Output PoE ports:	Port 1-4, Auto Power Management Pin Assignment: TX (1,2), RX (3,6), V+(4,5), V-(7,8)
Max. POE Power:	35W/port
POE Protection:	Against overheating/against overvoltage/upstream
Survey protection:	IEC61000-4-2 (ESD) ± 15kV (Air), ± 8kV (Contact) IEC61000-4-4 (EFT) 40A (5 /50ns) IEC61000-4-5 (Lightning) 20A (8/20µs)
LED LEDs:	LINK (Green) Activity (flashing green) Detected POE (yellow) Power error (blinking yellow) Power OK (Green) Alarm/Error Power (Red)
DC input:	48VDC, DUAL DC INPUT, protection against opposite wiring
Operating temperature:	-40 ° C to 85 ° C
Dimensions:	159 x 118 x 40 mm
Weight:	318G

Parameters

Ethernet parameters
Input Voltage (V)	48
Local signalling	LED
Management	No
Ochrana proti podpětí	Ano
Over temperature Protection	Ano
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	118
Design	DIN rail, Standalone
Height (mm)	40
Operating Temperature	-40 až +85°C
Weight (kg)	0.318
Width (mm)	159
PoE parameters
Number of PoE ports	4
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
