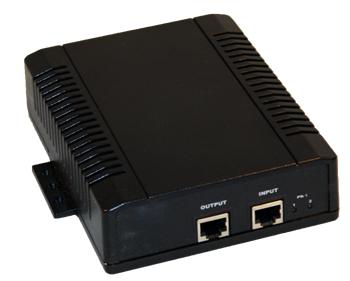

Tycon System TP-POE-HP-56G, Gigabit PoE source, 56V/2A, 112W

Features ; ; Remote Power Equipment through CAT5 Cable up to 100m ; Built in Ethernet and AC Surge Protection ; Autoranging Switching Power Supply ; Short Circuit, Over Current and Over Voltage Protection ; Medium Power and High Power Available...More information

Producer

TYCON Power

Part No.

TP-POE-HP-56G

Code

00017718

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

205.70 EUR exc. VAT

VAT

21%

Your price inc. VAT

248.89 EUR inc. VAT

Ask for a better price

Description

TP-POE-HP-56G is a high-quality midspan POE source designed to power equipment with extremely high power-up to 100W on port with the help of passive PoE.

Of course these industrial sources are protection against overvoltage, short-circuit and overload.

Parameters

Physical parameters
DC Output Voltage (V)	56
Input Voltage (V)	230
Network interface (Mbps)	10/100/1000
Ochrana proti podpětí	Ano
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-40° až +70°C
Output Current (A)	2
Output Power (W)	112
Depth (mm)	116
Design	Standalone
Efficiency (%)	90
Height (mm)	41
Weight (kg)	0.454
Width (mm)	150
PoE parameters
Number of PoE ports	1
PoE standard	pasivní, Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
