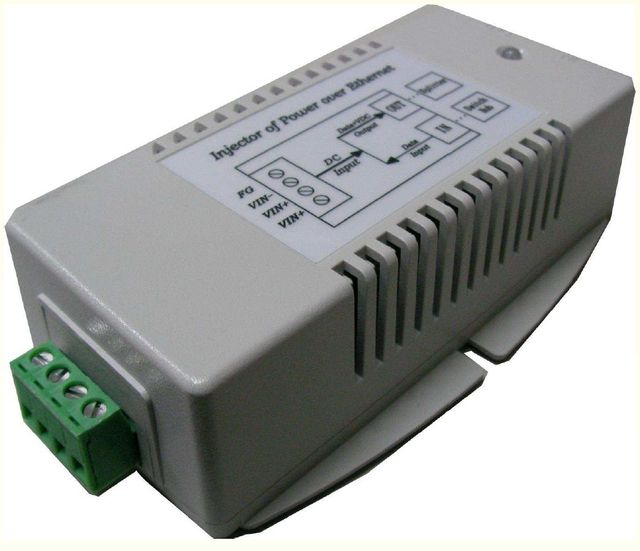

Tycon System TP-DCDC-4856G-VHP, inverter with PoE, 48V DC/56V DC, 70W

Name: Tycon System TP-DCDC-4856G-VHP, inverter with PoE, 48V DC/56V DC, 70W
Brand: TYCON Power
SKU: 20195
Price: 207.44 EUR
Availability: InStock

Tycon TP-DCDC-4856G-VHP is a specially designed DC/DC converter with an integrated PoE injector for powering microwave units and other systems that require High Power passive PoE power supply, e.g. PTZ security cameras. The source uses two power channe...More information

Producer

TYCON Power

Part No.

TP-DCDC-4856G-VHP

Code

00019320

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

171.44 EUR exc. VAT

VAT

21%

Your price inc. VAT

207.44 EUR inc. VAT

Buy cheaper refurbished Ask for a better price

Ask for a better price

Description

Tycon TP-DCDC-4856G-VHP is a specially designed DC/DC converter with an integrated PoE injector for powering microwave units and other systems that require High Power passive PoE power supply, e.g. PTZ security cameras.

The source uses two power channels of 35W each - the first uses pins 4,5,7,8, the second uses pins 1,2,3,6. After adding the PoE channels, the power source can reach 70W. The channels have separate signaling by means of LEDs that display the status of the line.

This unique PoE injector supports 56VDC voltage on all 8 pins.

Tycon TP-DCDC-4856G-VHP has two isolated power inputs for connecting different sources, e.g. primary and backup source.

Of course, there is protection against overvoltage and short circuit and isolated input from output.

Features:

Input voltage 48VDC (36- 72VDC)

56VDC passive PoE output on all 8 pins

High Power output up to 70W

Dual power supply (primary and backup power source, redundancy)

1Gbps throughput on Ethernet

Low standby consumption <2W

Use

48VDC remote power systems

Microwave links

PTZ security cameras

Specifications:
Input voltage:	+/- 36VDC - 72VDC
Input DC connector:	detachable terminal block (12AWG max.)
Output voltage(*/-2.5%):	56VDC
Data in & Data/POE Output connector:	RJ45 (shielded)
Output current (max.):	1.25A
Output power:	70W
Efficiency (min):	80%
Operating temperature:	-30 - 60°C
Dimensions:	125x75x38 mm
Weight:	255g

Parameters

Physical parameters
DC Output Voltage (V)	56
Local signalling	LED
Network interface (Mbps)	10/100/1000, 1000
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-40° až +70°C
Output Current (A)	1.25
Output Power (W)	70
Remote signalling	Ne
Depth (mm)	125
Design	Standalone
Efficiency (%)	70
Height (mm)	38
Weight (kg)	0.255
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
