Tycon System TP-DCDC-4824-HP, inverter with PoE, 48V DC/24V DC, 35W

Compare Facebook Set Watchdog

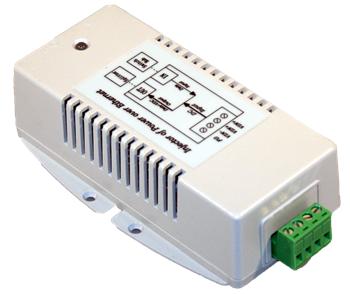

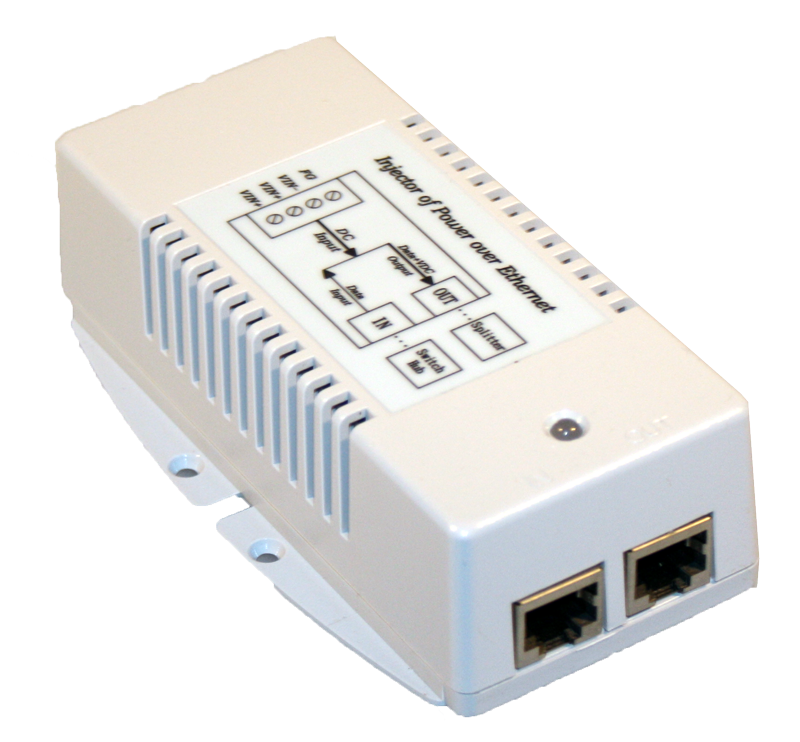

Tycon System TP-DCDC-4824-HP, inverter with PoE, 48V DC/24V DC, 35W

Name: Tycon System TP-DCDC-4824-HP, inverter with PoE, 48V DC/24V DC, 35W
Brand: TYCON Power
SKU: 7605
Price: 83.54 EUR
Availability: InStock

High Power DCDC converter with integrated passive POE injector, input voltage 36-72VDC (red), output voltage 24VDC, 30 WMore information

Producer

TYCON Power

Part No.

TP-DCDC-4824-HP

Code

00017686

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

69.04 EUR exc. VAT

VAT

21%

Your price inc. VAT

83.54 EUR inc. VAT

Ask for a better price

Description

The DCDC series of converters with integrated PoE port is the ideal solution for applications solved by DC power. Thanks to the input range of 36-72V and the double (redeemed) insulated power inlet, they are suitable for battery and DC systems.

Thanks to the choice of output voltage, the Tycon Power System covers a complete range of wireless devices including microwave connections, IP cameras or IP phones. According to the product, the output voltage can be selected by standardized 802.3af/at or only passive injector (for UBNT/microtics units, etc.)

DC converters are made in industrial standard and their operation is intended for high temperature environments.

properties:

Input voltage 36-72VDC, output voltage 24V passive

passive injector

double supply inputs for connecting 2 power sources (redeemed power supply)

Integrated POE Vaper

short-circuit protection, overvoltage

produced in industrial standard (high operating conditions)

Compact Dimensions

Use:

24/48V battery systems

Wireless connection

Powering IP phones, cameras

Parameters

Ethernet parameters
DC Output Voltage (V)	24
Input Voltage (V)	48
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	1.5
Output Power (W)	35
Remote signalling	Ne
Network interface (Mbps)	10/100
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Operating Temperature	-40° až +80°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	2
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
