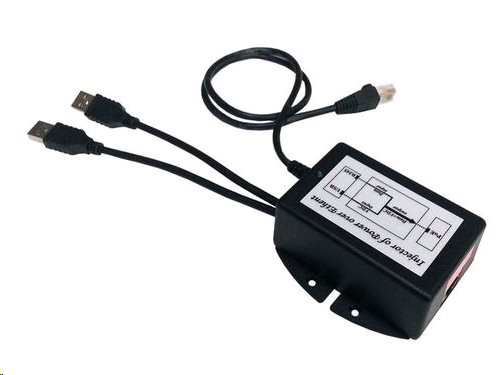

Tycon System TP-DCDC-2USB-48, passive POE Power Injector, 48V/0.25A, 12W with USB

TP-DCDC-2USB-48 from Tycon Power Systems is a unique passive 48VDC PoE injector powered from USB. Power remote device extends over the unused pairs to pins 4.5 (V +) and 7.8 (V). Supported max. Distance is 100m. ; The resource contains protection aga...More information

Producer

TYCON Power

Part No.

TP-DCDC-2USB-48

Code

00032227

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

46.74 EUR exc. VAT

VAT

21%

Your price inc. VAT

56.56 EUR inc. VAT

Ask for a better price

Description

TP-DCDC-2USB-48 by Tycon Power Systems is a unique 48V DC passive POE INJECTOR powered from USB . Remote devices are powering after unused pairs on pins 4.5 (V+) and 7.8 (V-). Supported max. Distance is 100m.

The source contains overvoltage protection, short-circuit protection and overload protection. It has up to 1 2W , depending on the USB input used. USB 2.0 ports have 5V/0.5A output, USB 3.0 ports have 5V/0.9A output and some newer USB ports have up to 5V/1.5A.

Parameters

Physical parameters
DC Output Voltage (V)	48
Input Voltage (V)	5
Network interface (Mbps)	10/100
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-30° až +50°C
Output Power (W)	12
Depth (mm)	76
Design	Standalone
Efficiency (%)	72
Height (mm)	36
Weight (kg)	0.134
Width (mm)	85
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
