Tycon System TP-DCDC-2456G-VHP 18-36V input 56V Passive POE Output, Pinout 1

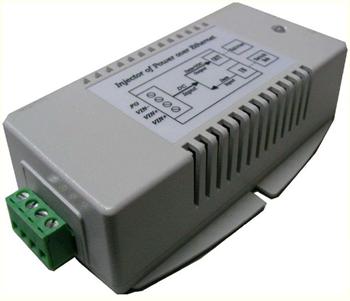

Tycon TP-DCDC-2456G-VHP is a specially designed DC/DC converter with an integrated PoE injector for powering wireless units and other systems that require High Power passive PoE power supply, e.g. microwave links, PTZ security cameras, etc. This unique PoE injector supports 56VDC voltage on all 8 pins (negative polarity of pins 1, 2, 7, 8; positive polarity of pins 3, 4, 5, 6 ). Tycon TP-DCDC-2456G-VHP has two isolated power inputs for connecting different sources, e.g. primary and backup source. Of course, there is protection against overvoltage and short circuit and isolated input from output.


Features:

• Input voltage 24VDC (18- 36VDC)
• 56VDC passive PoE output on all 8 pins
• High Power output up to 70W
• Dual power supply (primary and backup power source, redundancy)
• 1Gbps throughput on Ethernet
• Low standby consumption <2W



Specifications:
Input voltage:	+/- 18VDC - 36VDC
Input DC connector:	detachable terminal block (12AWG max.)
Output voltage(*/-2.5%):	56VDC
Data in & Data/POE Output connector:	RJ45 (shielded)
PoE Pinout:	negative polarity pin 1, 2, 7, 8; positive polarity of pin 3, 4, 5, 6
Output current (max.):	1.25A
Output power:	70W
Efficiency (min):	80%
Operating temperature:	-30 - 60°C
Dimensions:	125x75x38 mm
Weight:	255g
