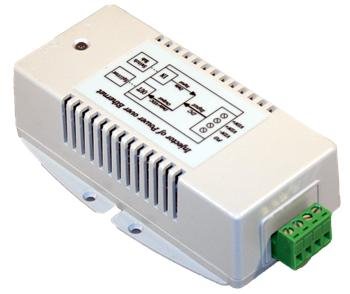

Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W

Compare Facebook Set Watchdog

Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W

Name: Tycon System TP-DCDC-2448G-HP, inverter with PoE, 24V DC/56V DC, 50W
Brand: TYCON Power
SKU: 49705
Price: 103.78 EUR
Availability: InStock

Tycon TP-DCDC-2448G-HP is an HP voltage converter with passive PoE output. Input voltage 18 - 36VDC is regulated to 56V / 1A. The power supply has two isolated inputs for redundant power supply. Usage: 12V / 24V battery systems; Wireless access points ...More information

Producer

TYCON Power

Part No.

TP-DCDC-2448G-HP

Code

00070283

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

85.77 EUR exc. VAT

VAT

21%

Your price inc. VAT

103.78 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-2448G-HP is an HP voltage converter with passive PoE output. Input voltage 18 - 36VDC is regulated to 56V / 1A. The power supply has two isolated inputs for redundant power supply.

Usage:

12V / 24V battery systems

Wireless access points and client stations

Security cameras, IP phones

Specifications:
Type:	TP-DCDC-2448G-HP
Input voltage:	18 - 36 VDC
Output voltage:	56V passive PoE - 4.5 (+), 7.8 (-)
Input / output connector:	Shielded RJ45
Output current (max.):	1A
Output power:	50W
Operating consumption:	1W
Efficiency (min.):	75%
EMC standard:	FCC Class B EN55022 Class B
Operating temperature:	-30 ° - + 60 ° C
Dimensions (mm):	125 x 75 x 38
Weight (g):	300

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	24
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Output Current (A)	0.9
Output Power (W)	50
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Operating Temperature	-40°C až +70°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
