Tycon System TP-DCDC-1248M, inverter with PoE, 12V DC/48V DC, 24W

Compare Facebook Set Watchdog

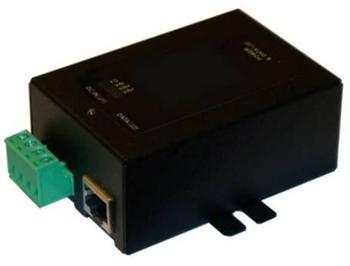

Tycon System TP-DCDC-1248M, inverter with PoE, 12V DC/48V DC, 24W

Name: Tycon System TP-DCDC-1248M, inverter with PoE, 12V DC/48V DC, 24W
Brand: TYCON Power
SKU: 7601
Price: 114.99 EUR
Availability: InStock

DCDC converter with integrated passive PoE injector, input voltage 9-36VDC (redudant), output voltage 48VDC, 24W, metal versionMore information

Producer

TYCON Power

Part No.

TP-DCDC-1248-M

Code

00017682

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

95.04 EUR exc. VAT

VAT

21%

Your price inc. VAT

114.99 EUR inc. VAT

Ask for a better price

Description

The DCDC series of converters with integrated PoE port is the ideal solution for applications solved by DC power. Thanks to the input range of 9-36V and the double (redeened) insulated power inlet, they are suitable for battery and DC systems.

Thanks to the choice of output voltage, the Tycon Power System covers a complete range of wireless devices including microwave connections, IP cameras or IP phones. According to the product, the output voltage can be selected by standardized 802.3af/at or only passive injector (for UBNT/microtics units, etc.)

DC converters are made in industrial standard and their operation is intended for high temperature environments.

properties:

Input voltage 9-36VDC, output voltage 48V

Passive injector (according to the model)

double supply inputs for connecting 2 power sources (redeemed power supply)

Integrated POE Vaper

Ochraa against short-circuit, overvoltage

produced in industrial standard (high operating conditions)

Compact Dimensions

Use:

12/24V battery systems

Wireless connection

Powering IP phones, cameras

Parameters

Ethernet parameters
DC Output Voltage (V)	48
Input Voltage (V)	12
Local signalling	LED
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	0.5
Output Power (W)	24
Remote signalling	Ne
Network interface (Mbps)	100
Physical parameters
Depth (mm)	85
Design	Standalone
Efficiency (%)	75
Height (mm)	36
Operating Temperature	-40° až +80°C
Weight (kg)	0.134
Width (mm)	76
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
