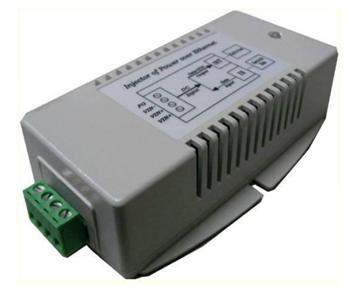

Tycon System TP-DCDC-1248GD-HP, inverter with PoE, 12V DC/56V DC, 35W

TYCON TP-DCDC-1248GD-HP is HP voltage converter with POE port with 802.3at. Input voltage 10-15VDC is regulated at 56V/0.625A. The source has two insulated inputs for redundant power supply.More information

Producer

TYCON Power

Part No.

TP-DCDC-1248GD-HP

Code

00017680

Warranty

24 Month

Availability

Availability in stores

Order

Regular selling price exc. VAT

114.17 EUR

The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.

Your price exc. VAT

100.97 EUR exc. VAT

VAT

21%

Your price inc. VAT

122.17 EUR inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-1248GD-HP is an HP voltage converter with a PoE port with power according to the 802.3at standard. The input voltage 10 - 15VDC is regulated to 56V/ 0.625A. The source has two isolated inputs for redundant power supply.

Usage:

12V/ 24V/ 48V battery systems

Wireless access points and client stations

Security cameras, IP phones

Specifications:
Type:	TP-DCDC-1248GD-HP
Input voltage:	10 - 15 VDC
Output voltage:	56V (802.3at)
Input/output data connector:	Shielded RJ45
Output current (max):	0.625A
Output power:	35W
Operating consumption:	1W
Efficiency (min.):	75%
EMC standard:	FCC Class B EN55022 Class B
Operating temperature:	-30° - +60°C
Dimensions (mm):	125 x 75 38
Weight (g):	300

Parameters

Ethernet parameters
DC Output Voltage (V)	56
Input Voltage (V)	12
Output Current (A)	0,625
Output Power (W)	35
Network interface (Mbps)	10/100/1000, 1000
Physical parameters
Depth (mm)	125
Design	Standalone
Efficiency (%)	75
Height (mm)	38
Operating Temperature	-30° až +60°C
Weight (kg)	0.3
Width (mm)	75
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
