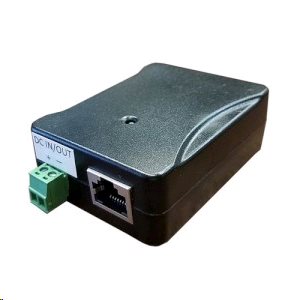

Tycon System PoE-INJ-1000-WTs, Gigabit HP PoE injector/splitter

Name: Tycon System PoE-INJ-1000-WTs, Gigabit HP PoE injector/splitter
Brand: TYCON Power
SKU: 60377
Price: 15.59 EUR
Availability: InStock

Shielded passive PoE injector/splitter specially designed for powering Starlink units. Power up to 130W, power supply on all pairs.More information

Producer

TYCON Power

Part No.

PoE-INJ-1000-WTs

Code

00073501

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

12.88 EUR exc. VAT

VAT

21%

Your price inc. VAT

15.59 EUR inc. VAT

Ask for a better price

Description

Description:

Shielded passive PoE injector/splitter compatible with speeds up to 1Gbps. Injects or splits DC Power on all 8 wires. 4578(-) 1236(+). Wire terminal connector. 2.25A. VIN=VOUT. The DC connector is detachable for easy mounting. The RJ45 connectors are shielded - the shielding goes from the power source to the target device. Power is distributed over all 8 pins in the connector (4 pairs). This allows transmission of up to 130W over one Cat5/6 cable up to 100m.

Designed especially for powering the STARLINK antenna
High performance shielded design
10/100/1000Mb compatibility
detachable cable connector
5-58VDC passive PoE

Specifications:

Input Voltage Range	5-58VDC
Data speed	10/100/1000Mb
Maximum power values	2.25A 130W
DC connector	detachable cable connector
RJ45 PoE	1,2,3,6 (V+) 4,5,7,8 (V-)
Working temperature	-40°C - +85°C
Working humidity	0-95% rel. humidity
Dimensions	71x53x24mm
Weight	65g

Parameters

Physical parameters
Input Voltage (V)	56
Network interface (Mbps)	10/100/1000
Operating Temperature	-40° až +85°C
Output Current (A)	2.25
Output power (mW)	130
Depth (mm)	71
Design	Standalone
Height (mm)	24
Weight (kg)	0.065
Width (mm)	53
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE

All parameters Less parameters
