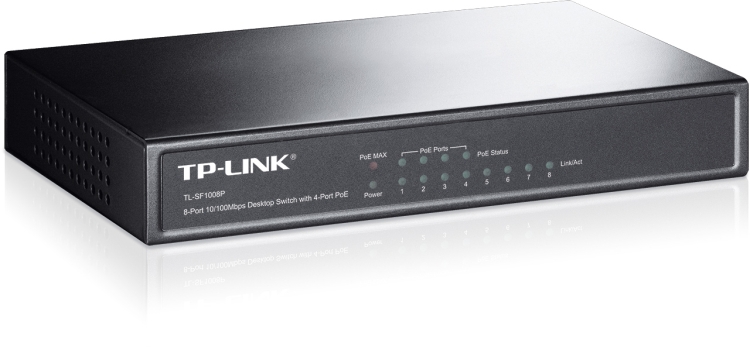

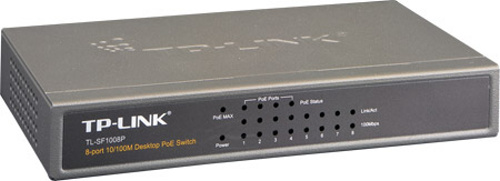

TP-LINK TL-SF1008P, Switch, 8x 10/100 Mbps

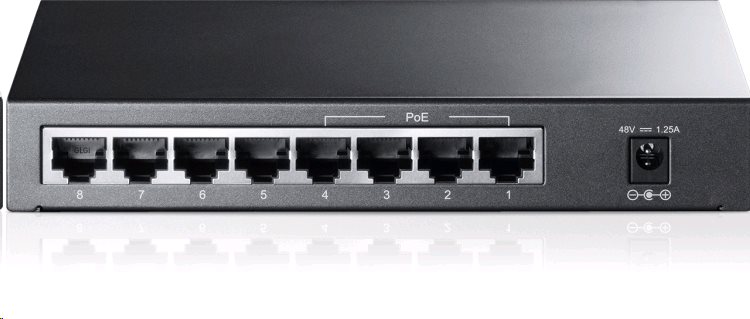

The TL-SF1008P is 8 port 10/100m PoE Switch, which allows you to supply a device with a device with a standard of 802.3af (48 V) and can be used in combination with POE Splitter TL-Poe10R to power other products. The first 4 ports are used for power, the second 4 ports serve as a classic switch. POE (Power Over Ethernet) meets IEEE 802.3AF. Ports automatically detect devices that are compatible with this standard. POE Switch is perfectly suited where there is no el. The socket, for example, on roofs, soils, masts, etc., or if you want to save on other cables necessary for power supply. The TL-SF1008P has a port priority*. The maximum output to the 1 Ethernet port is 15.4 W, the maximum output of all 4 Ethernet ports is 53 W. Another big advantage of this device is its compact dimensions.

*Port priorities are determined by number, ie. Port 1 has the highest importance and port 4 smallest. This function helps to protect the device if the system is tensioned. For example: Port 1, 2 and 4, they supply 15.4 W (46.2 W). If another device is connected to port 3 with 10 watts (overload), the switch automatically turns off port 4. This means that ports 1 and 2 will deliver 15.4 W, port 3 10 W and port 4 will be without power.

parameters:

name	value
depth[mm]:	98
LAN:	(8) 10/100Mbps
Max. Energy consumption[W]:	2,9
Power:	48V/1,25A
Number of LAN ports:	8
Number of PoE ports:	4
Supported PoE Standards:	802.3AF
poe budget[W]:	60
operating temperature[° C]:	0 to 40
Switch speed[Gbps]:	1,6
chassis:	metal
width[mm]:	171
MAC Address Table:	2000
Power type:	DC connector (jack)
Input voltage:	48
height[mm]:	27

Package content

device

power adapter

power cable
