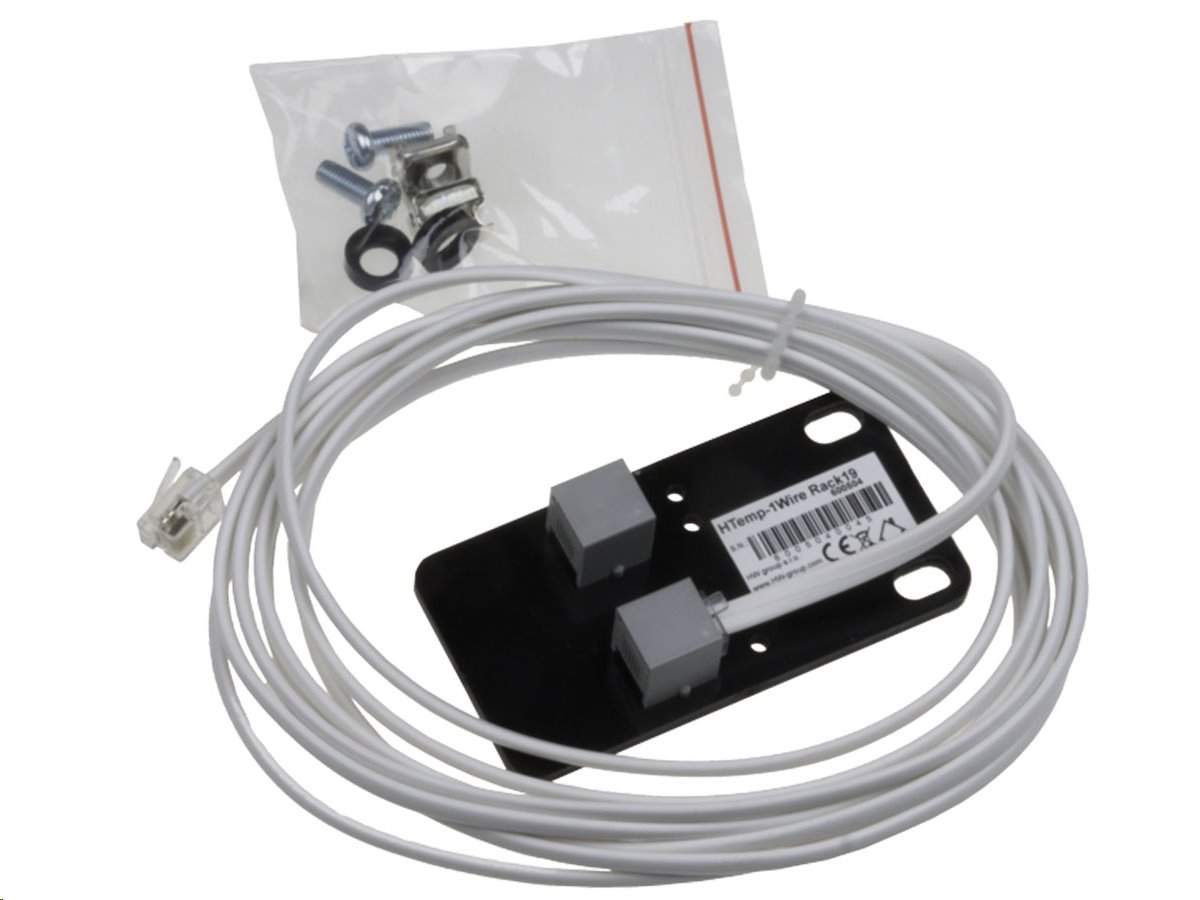

Temperature sensor for rack 1Wire, 3 m

temperature and humidity sensor for IT bus (1-Wire) with two RJ12 connectors. The sensor is designed for mounting in a 19"seagull on the front/rear panel as 1U device, it can also be fastened from the side. Compatible with all HWG units that have 1Wire input.

• temperature measurement in IT cabinets (Racks)
• Meaning the temperature in the server rooms

• temperature measurement in the range of-10 ° C to 80 ° C
• measurement accuracy +/-0.5 ° C in the range of-10 ° C to 80 ° C
• resolution format: 0.01 ° C
• Relative humidity measurement in the range: 0 #i6per #to 100 #i6per #.
• Measurement accuracy: +/-4 # i6per # in range 0 # i6per # up to 100 # i6per # (RH) at a temperature range of 15 ° C to 30 ° C
• Communication after line 1-Wire
• Sensors can be chain behind a distance of 60 m

• Dimensions: 82 x 43 x 4 mm
• Operating temperature:-10 to 80 ° C
• Measuring element: DS18B20
• Installation: to seagull 19"-1U

• htEmp-1Wire Rack19
• 3M
Connection cable
• fasteners'
