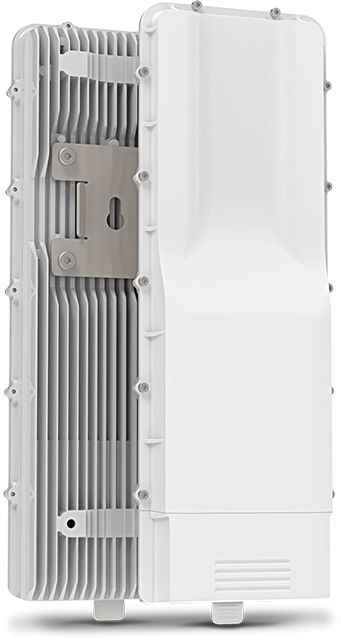

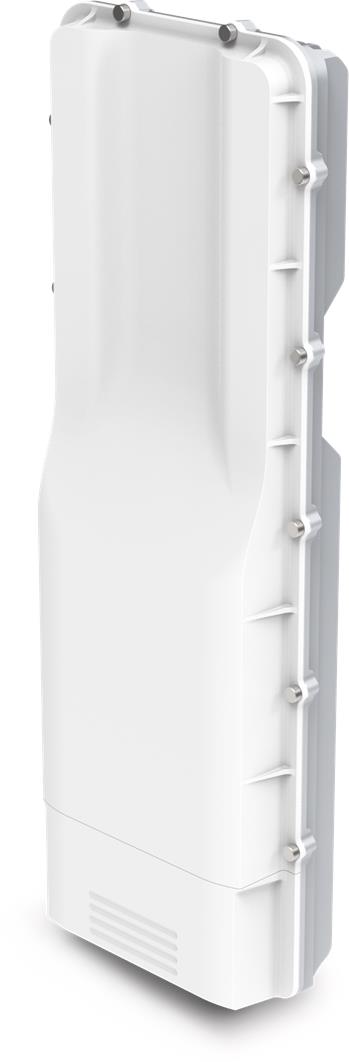

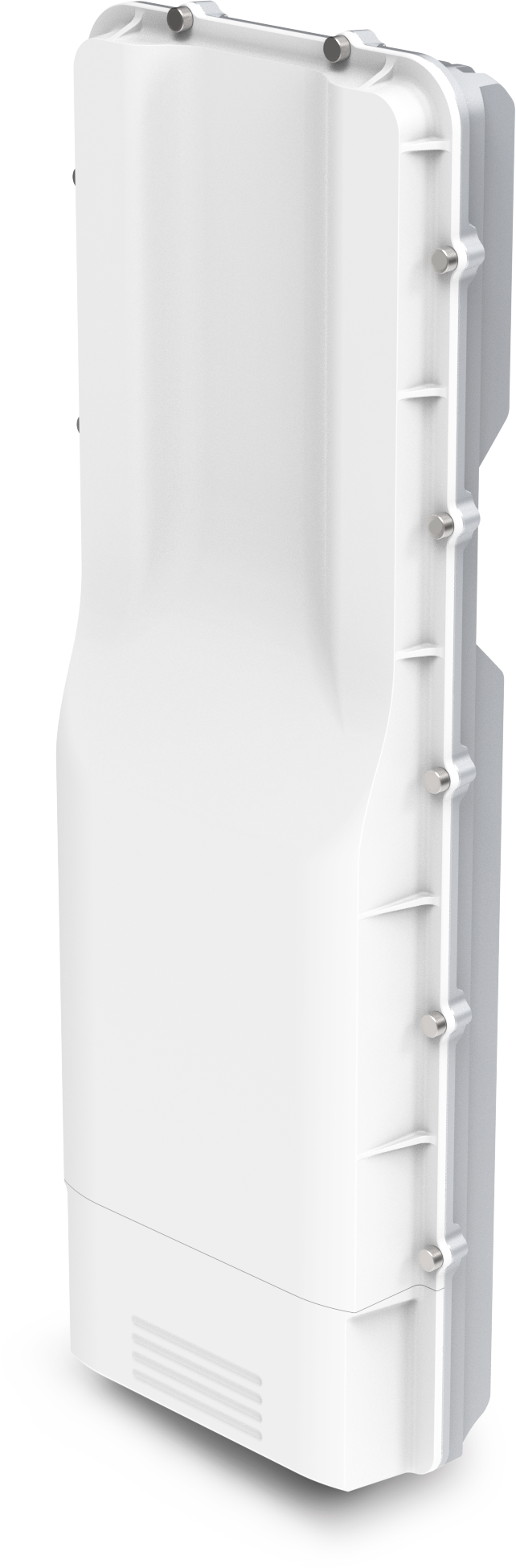

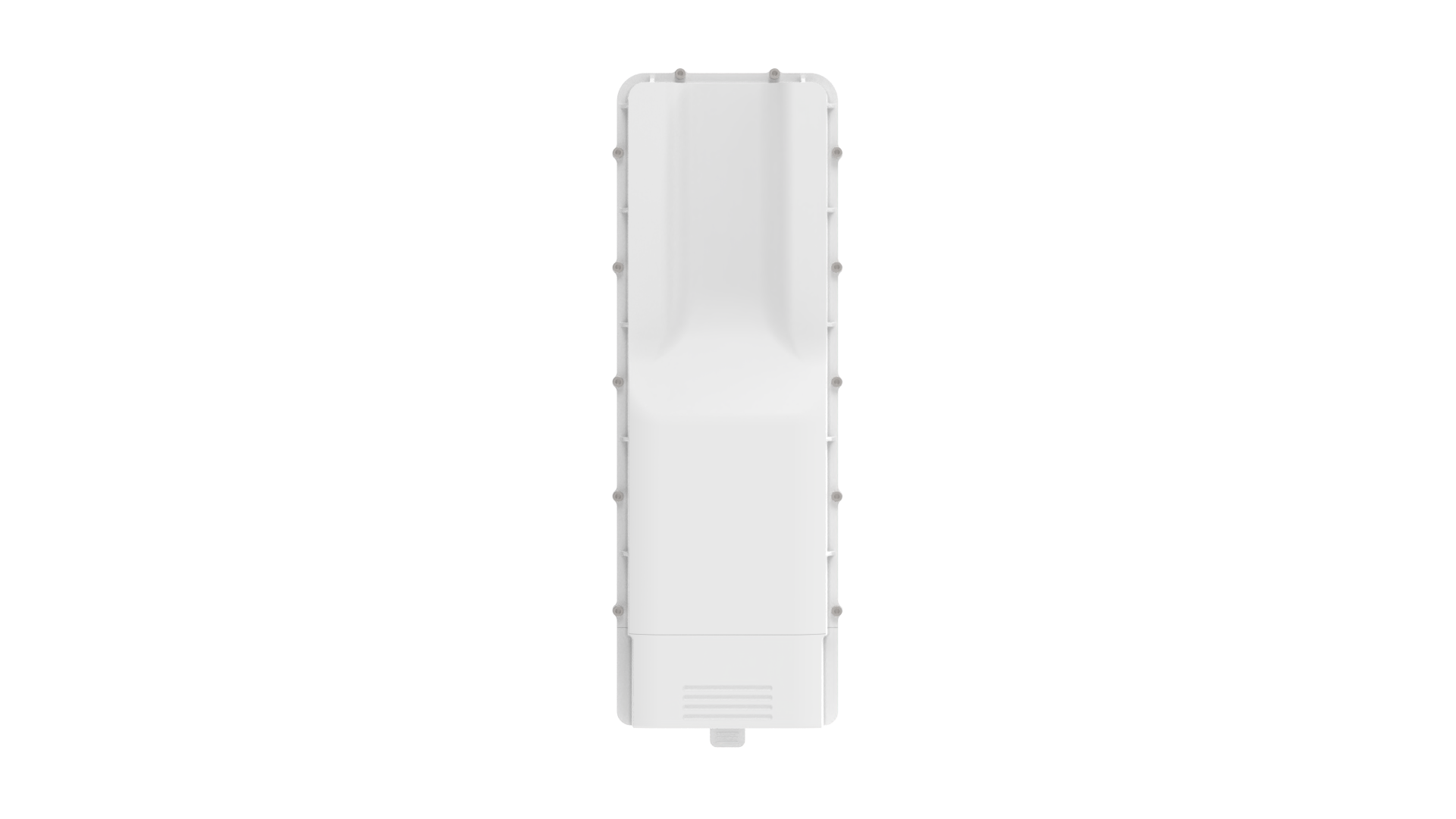

Tachyon TNA-302, 60 GHz Access Point/Client 40°

Tachyon TNA-30x series products are high-end PTP and PTMP mmwave radios operating in the 60 GHz band. Tachyon Networks is thus able to provide a perfect solution for ISPs who need to deploy multi-gigabit fixed wireless access, as well as for related applications -  video surveillance, WiFi backhaul, etc. All this in combination with development and production directly in the EU and other advanced solutions predetermines the entire system for deployment even in sensitive applications such as CCTV systems, capacitive interconnection of buildings and the like. In addition, the integrated PoE-out port enables the connection of another device, such as a camera, directly to the microwave unit.

The Tachyon model TNA-302 is primarily intended as an access point (AP) with a sector beamforming antenna 40° x 40°, however, it can also work in client or PTP mode. The unit serves up to 32 client stations.

Parameters:

• Full 60 GHz band support - channels 1-6 (57-71 GHz)
• Certification according to EN 303 722, i.e. legal use also in the 66-71 GHz range
• Transmission capacity more than 2 Gbps

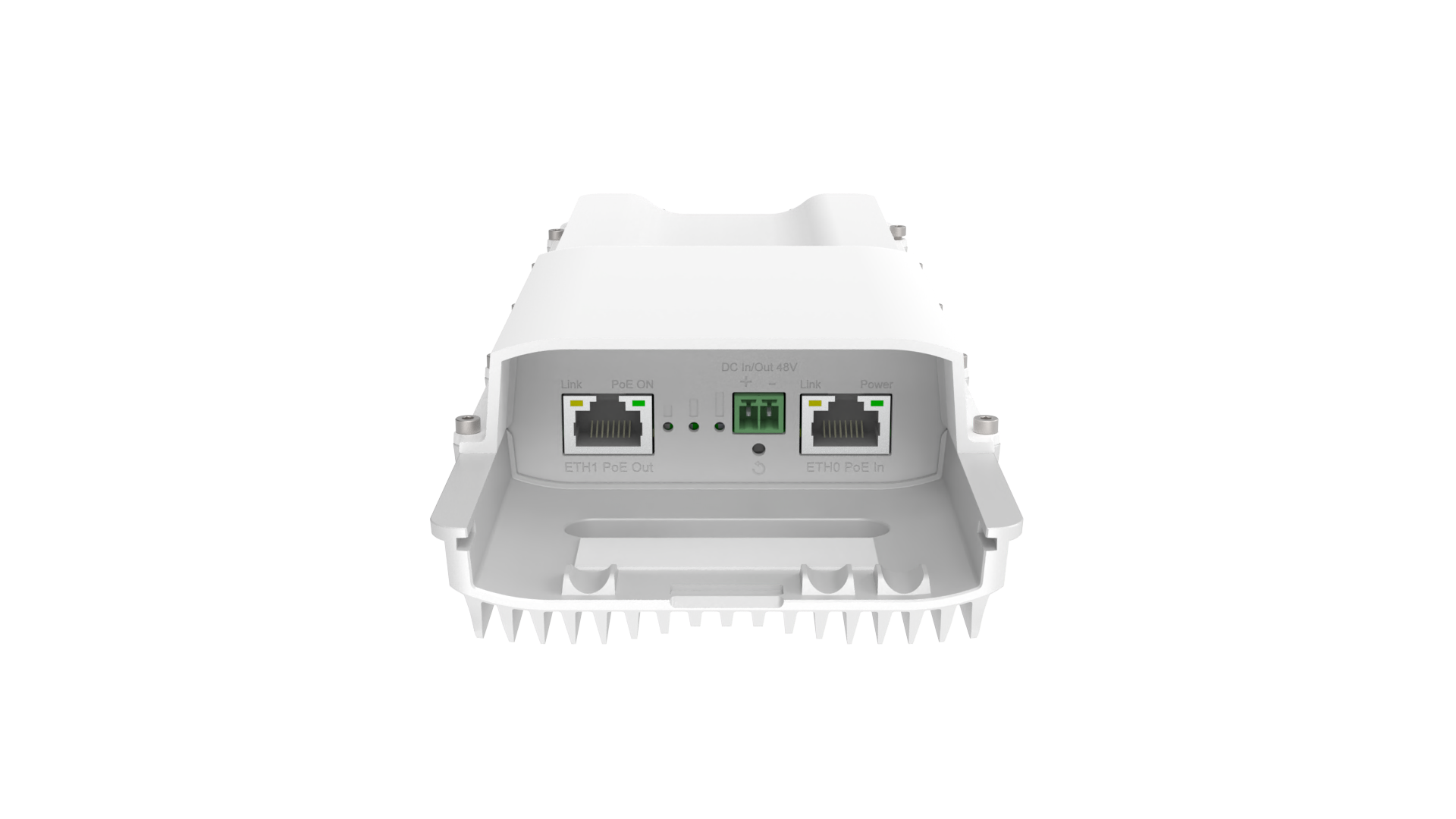

• 2.5GEth PoE-in port + 1GE PoE-out port
• Option to use second port as failover port

Package contents:

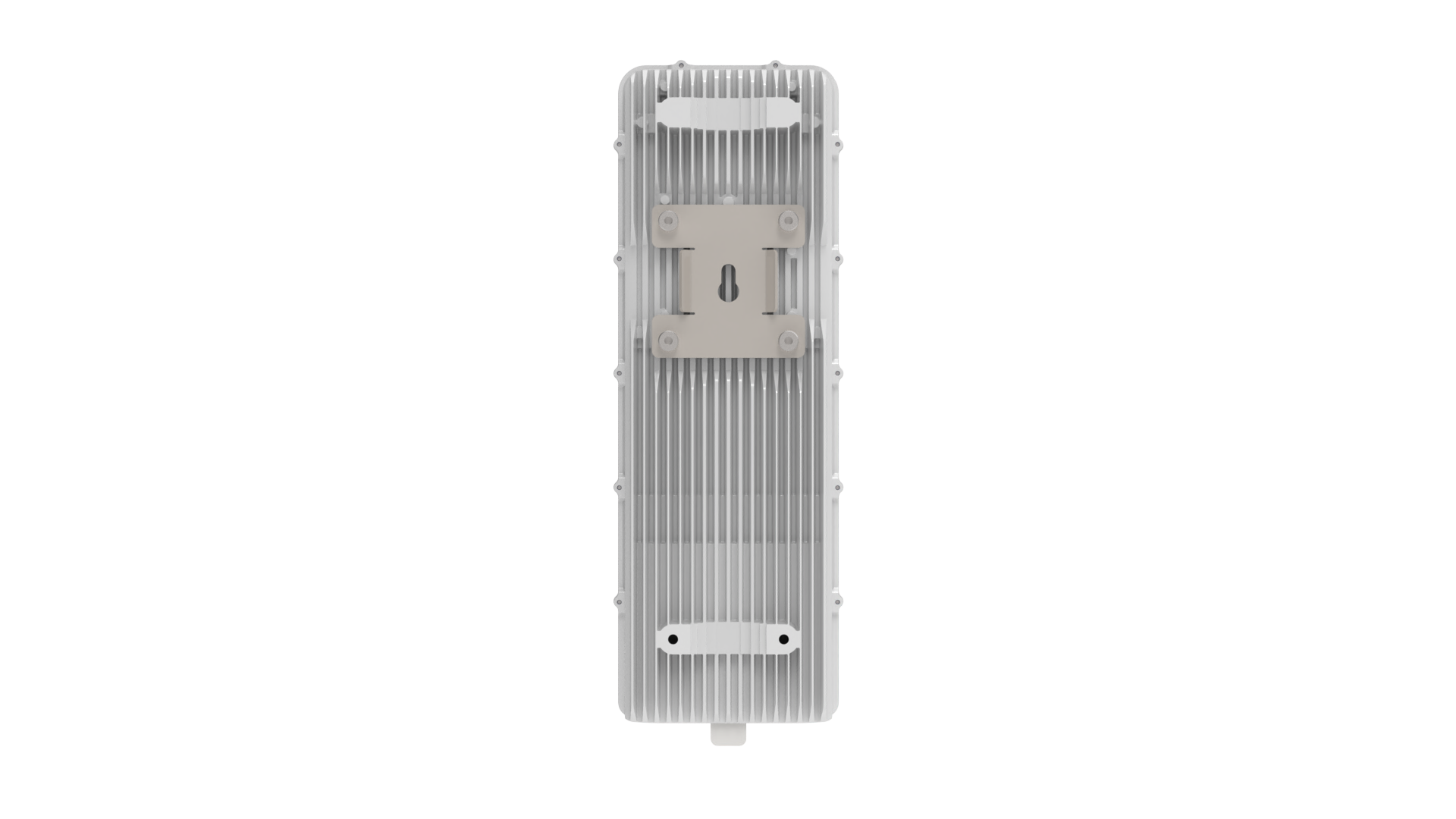

• 1x Tachyon Networks TNA-302 with mounting plate
• 1x 48V 0.5A PoE adapter
• 1x Quick start guide
