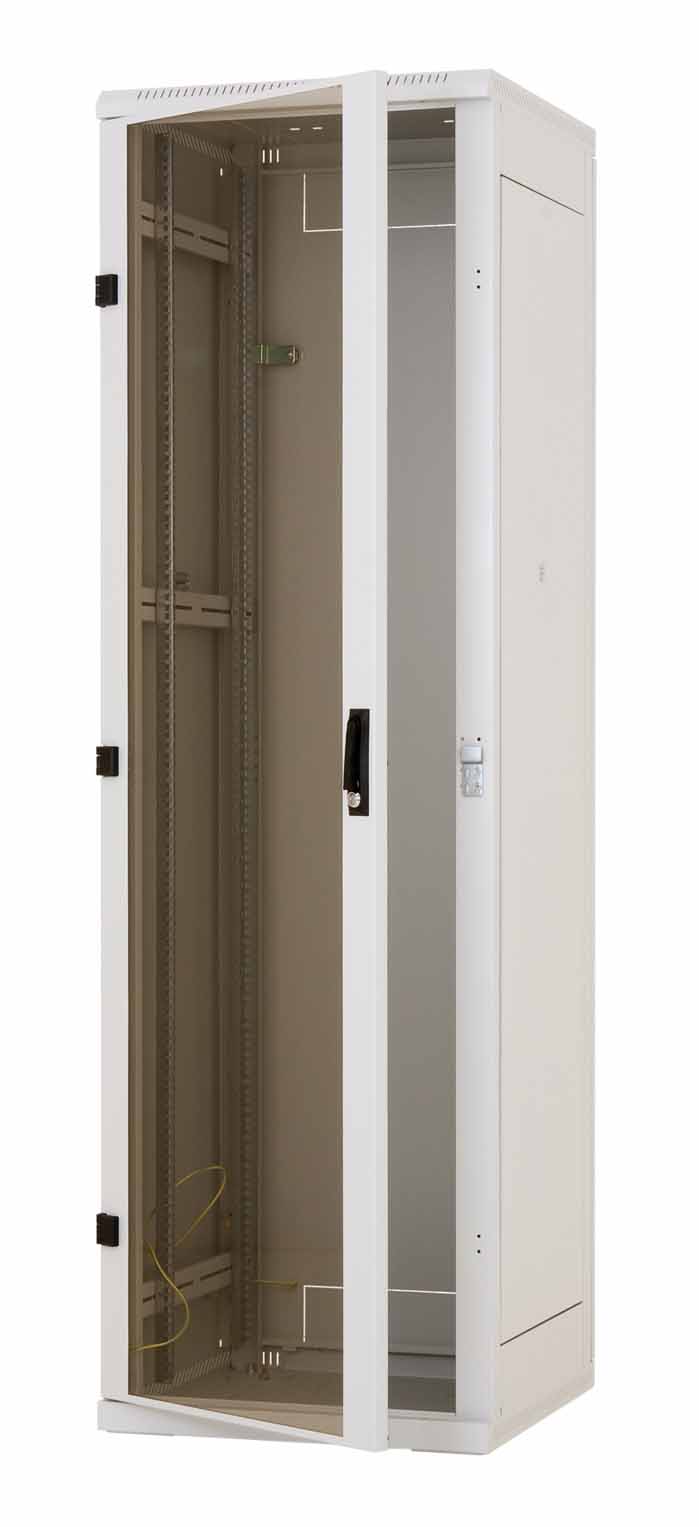

Stand 19"Moeller 42U, 800x800 switchboard

42U rack cabinet depth 800 mm gray in precise design with lockable glass doors designed for data and telecommunication wiring. Its robust steel construction and high processing quality guarantee outstanding performance. Suitable for heavy loads and demanding installation.

Technical Parameters:

• Height: 42U
• Color: Gray RAL 7035
• Hinged front door with hinges and lever lock, plastic handle. The 180 ° door design allows easy disassembly and installation for left or right opening
• Removable side and rear door covers secured by locks to the same key as the front door
• Cable entries at the top and bottom edges of the rear cover, the base and the cabinet cap. Each of the passages is covered with breakout blankets. Wire area for cabling 333 cm2
• Two pairs of depth-adjustable vertical rails
• Vents for ventilation units are located in the base and ceiling of the cabinet. In the ceiling, the hole is blinded by a snap-on 3D cover, with a breakout cover in the base
• Adhesive plug with dustproof brush for cable sealing
• Height-adjustable leveling feet
• Bottom and top perforation for natural ventilation
• Complete grounding system for individual parts of the switchgear
• Maximum permitted cabinet load is 400 kg Top cover with four fan holes Fixed frame variant 3

Dimensions:

• Height (A): 2050 mm
• Width (D): 800 mm
• Depth (E): 800 mm
• Top ventilation opening: 350 x 420 mm
• Upper exit: 90 x 370 mm

Material

• Sheet steel BR> Safety hardened glass tl. 4 mm

Weight:

• 152 kg (gross), 150 kg (net)

Delivery Content:

• 1x rack
