Shelly Plus i4 DC
Compare Set Watchdog

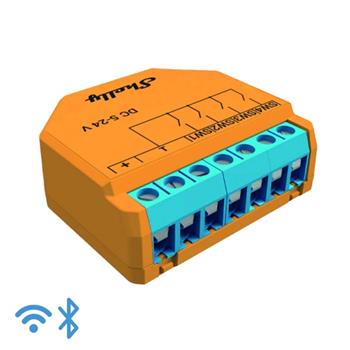

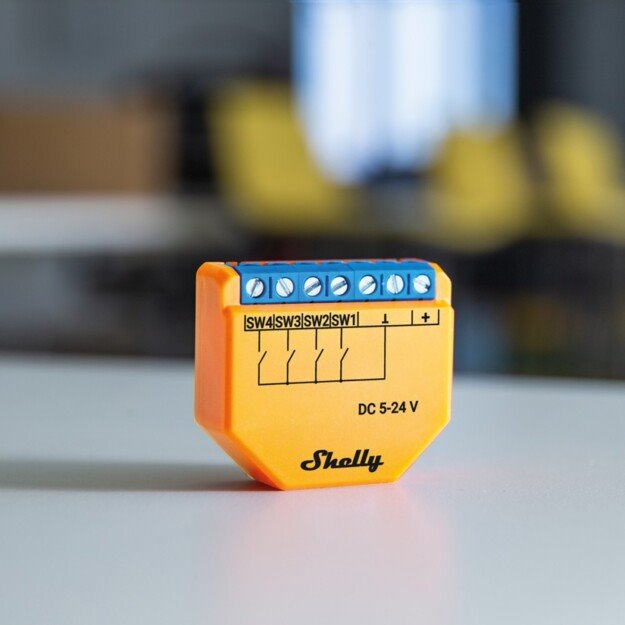

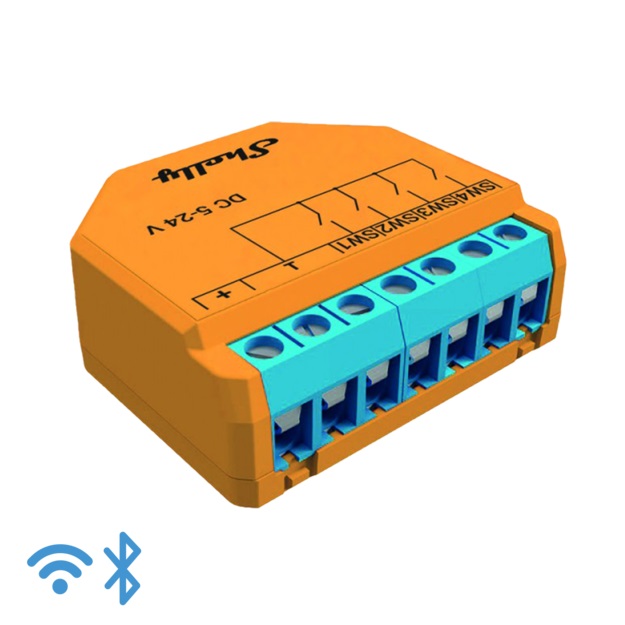

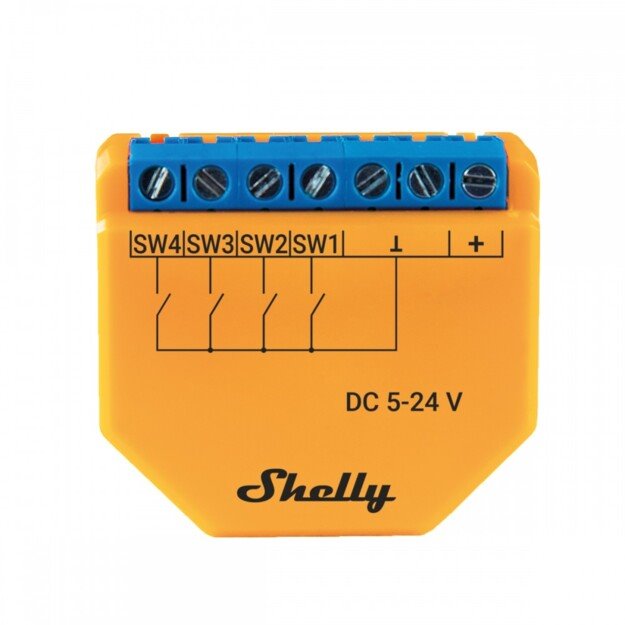

Shelly Plus i4 DC

Shelly Plus I4 DC is an intelligent driver with 4 digital inputs controlled by Wi-Fi. It has the same features as Shelly Plus I4, but only 5-24 V DC can be powered. Shelly Plus I4 DC is an input reader (does not contain a relay).More information

Producer
  Shelly

Part No.


SHELLY-PLUS-I4-DC


Code
 00073882
Warranty
24 Month
Your price exc. VAT
11.75 EUR exc. VAT
VAT
21%
Your price inc. VAT
14.22 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    Shelly Plus I4 DC is an intelligent sensor 4 digital inputs managed by Wi-Fi. It activates/deactivates any scene created, triggers synchronized actions, and more complicated triggering scenarios for other elements in a smart home. Shelly Plus I4 DC is only input reading device (does not contain relays) . Ideal in combination with Shelly wall switch-4 buttons switch. Each button can activate up to 3 different actions. This means that only one switch is 4 buttons would allow you to start up to 12 scenes . It can display the status and control the operation of four inputs. Due to its compatible size, it is possible to install for each wall switch, so there is no need to expand space in the wall or any changes in the wiring.
    • Extremely fast ESP32 processor-Improved API
    • interface
    • java scripts-for adapted and complex scenarios
    • Easy to control through Shelly Smart Control as well as various protocols, platforms and voice assistants
    • supports scripting, webhooks, MQTT, websocket, https, UDP, TLS and custom certificates-control of other connected Shelly sensor relays or other devices
    Applications:
    • Support for multiple actions -activation of different scenes or events from other Shelly devices in the home simply by pressing the button. Shelly Plus I4 supports up to 3 different automation actions on the button, which makes it extremely convenient for fast manual control of the device group.
    • Perfect comfort -allows manual control of other Shelly devices-full check
    • Comprehensive Scenes Control -activates or deactivate any scene created, triggers synchronized actions, and also more complex trigger scenarios
    • Smart bulbs -highly compatible with Shelly Wi-Fi, Phillips Hue or even smart bulbs of different brands. In addition, you can use the Shelly Plus I4 to set the desired light color or to dimmed smart bulbs. Just configure one of our scripts or webhooks created specifically for Shelly Plus I4 DC.
    Key features:
    • Operation via Wi-Fi -no mushroom/gateway
    • Bluetooth -adding a new shelly device is fast and simple via Bluetooth and Smarphone with Shelly Cloud
    • Wide voltage support range -can be powered 110-240 in AC
    • Support for multiple clicks -up to 12 possible events. Control the lights, pull the blinds, turn off the sockets. Run any shelly device and the scenes you wish.
    • smart schedule -setting your own plans according to daily agenda
    • fully compatible with all common domestic assistants and platforms -Google Home, Amazon Alexa, Samsung Smart Things and many more

    plus-series-http (1)-1280x650.png (1280 × 650)

    Parameters

    Bluetooth Yes
    Consumption 1
    Ethernet No
    Inputs 4
    MQTT Ano
    Over temperature Protection Ano
    Overload protection Ne
    Platforms Google Home, Amazon Alexa, Samsung Smart Things, iOS
    Power measurement Ne
    Power Supply DC
    Processor ESP32

    Physical parameters

    Height (mm) 17
    Length (mm) 42
    Operating Temperature -20° až +40 °C
    Width (mm) 38

    Wireless parameters

    WiFi Standards 802.11b/g, 802.11n
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads1

    Manuál
    Shelly_Plus_i4_DC_cz.pdf Format pdf (421.4 kB) Download
