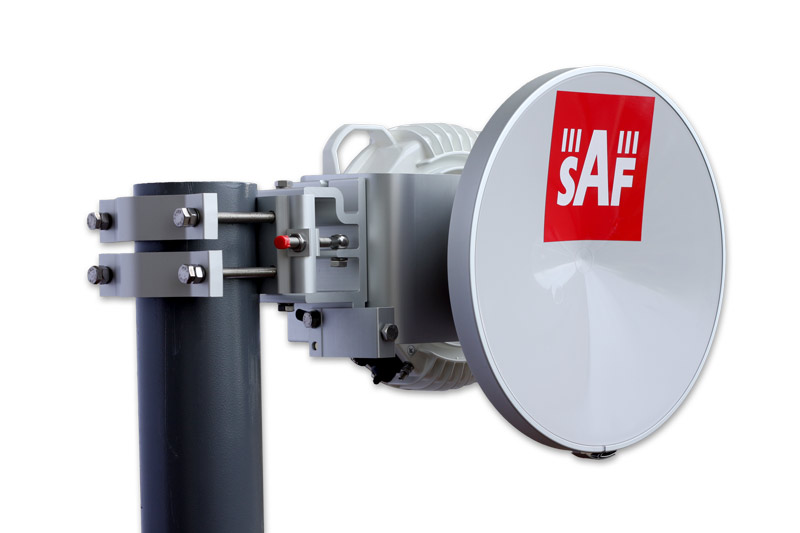

SAF Lumina, 11 GHz, up to 366 Mbps, incl. antenna 60 cm

connections CFIP lumina are high-capacity, fully outdoor radio systems (FOD) capable to provide transfer speed up to 366 Mb/s on one or two optical gigabit ports Ethernet. The system supports Jumbo packets, standard QoS (QUALITY OF SERVICE), VLAN and more Advanced Ethernet Standard functions so that the CFIP Lumina range becomes perfect building Stone for modern packet networks. Dual-port units are particularly suitable for solutions Complex network topologies, redundant applications, capacity aggregation for even higher throughput and other purposes.

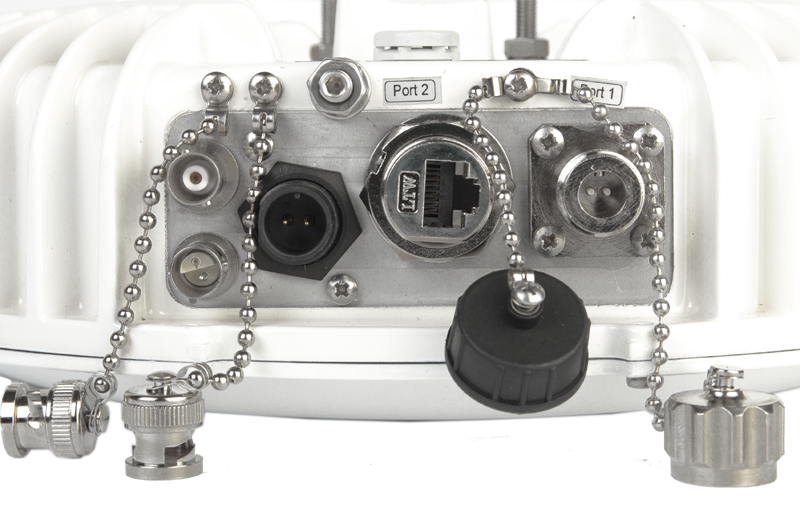

The joint can be equipped with both optical and metallic gigabit By interface, the metallic interface works against optical. Between The connection of the joint also includes a spectral analyzer.

Joining in the licensed band 11 GHz .

For calculation and link design please contact us. "demand form" here

at the required availability of the connection 99.99# i6per# (outage 51 min per year) has The range of range with 60 cm antennas in Czech conditions at a capacity of 110 MB/s approx. 20 km. In addition, the joint has an adaptive modulation ACM that in the case of impaired weather or other influences allow you to switch to simpler modulation -Temporarily reduce transmission capacity to achieve a non-impossible operation even in these situations.

upgrade transmission capacity:

SAF CFIP Lumina Foda I.-Installation
