RF elements BR-WG3, Holder for TNA-305X

The RF Elements BR-WG3 is a smart mounting bracket designed for direct installation of Tachyon TNA-305X units onto RF Elements asymmetric horn antennas with a structural aluminum ring. It allows for a compact, clean and space-efficient solution, ideal especially for installations where the RF Elements 90° asymmetric horn serves as both a backup 5GHz antenna and a support element.

Key Features:

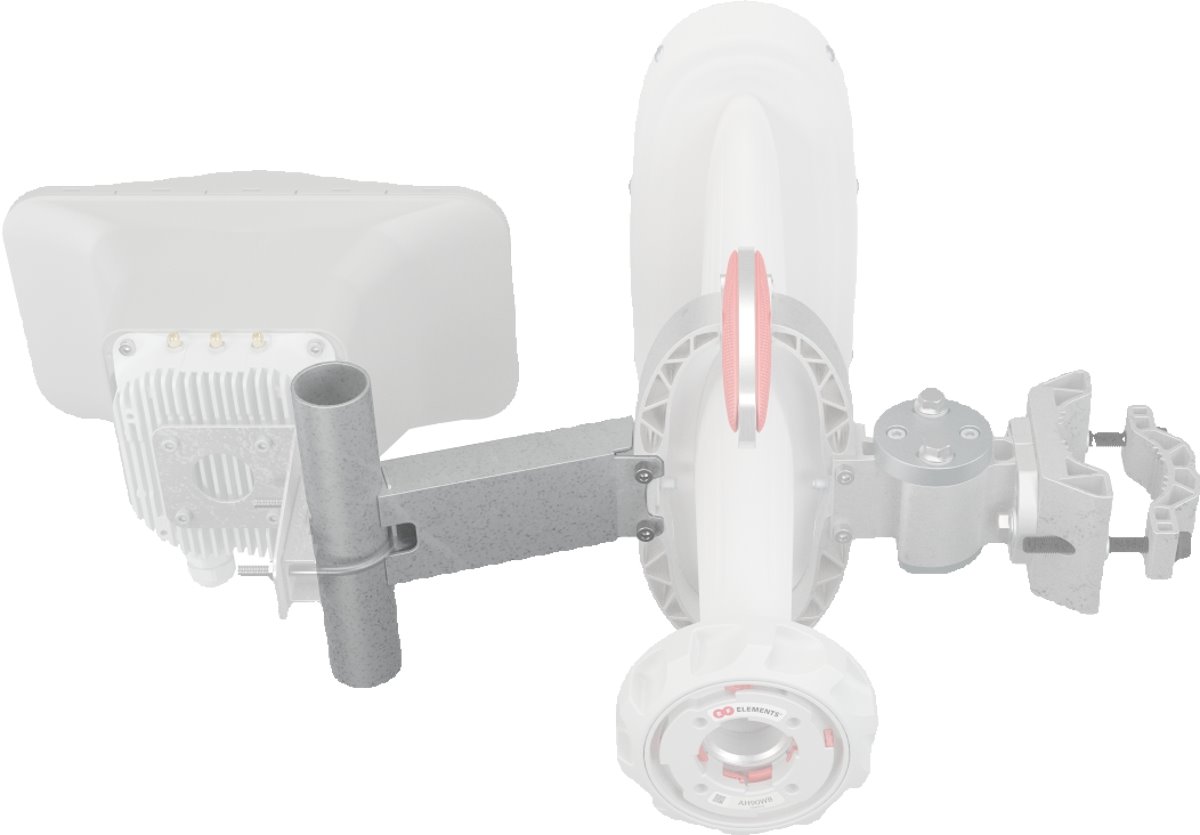

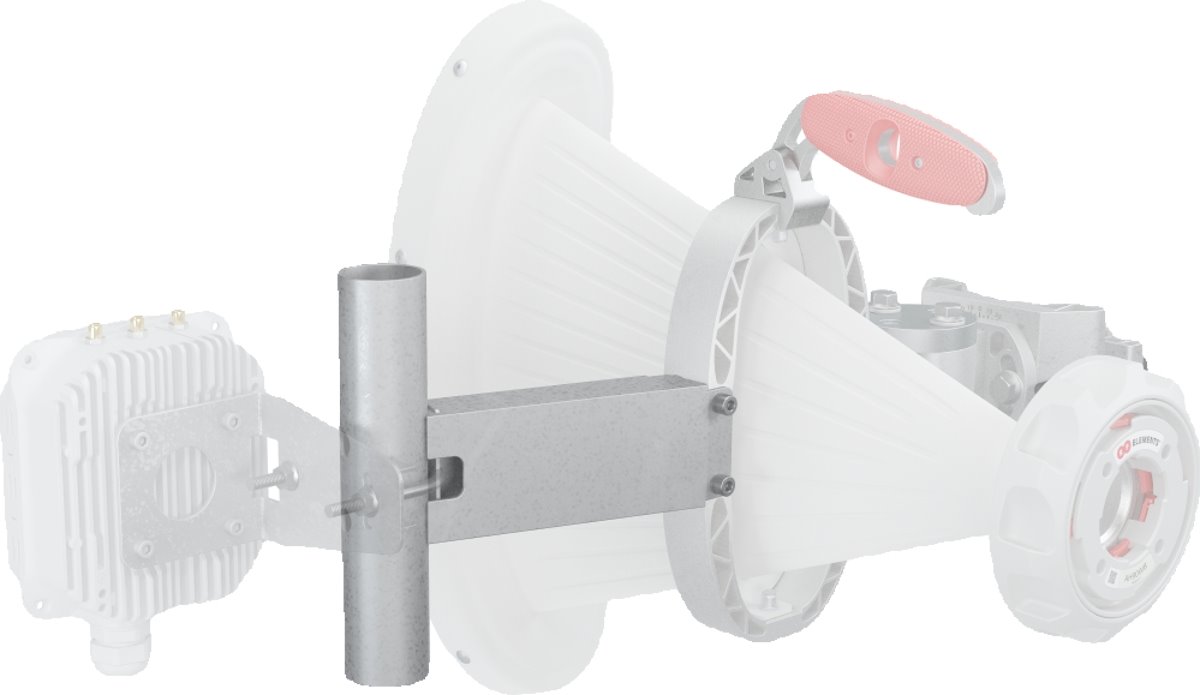

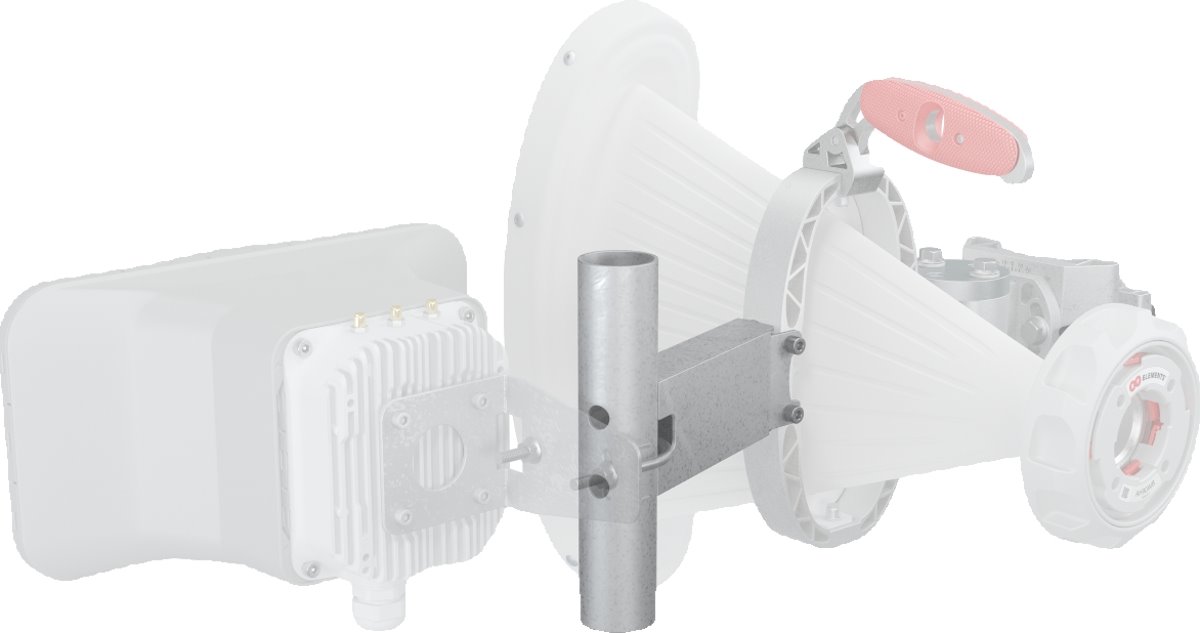

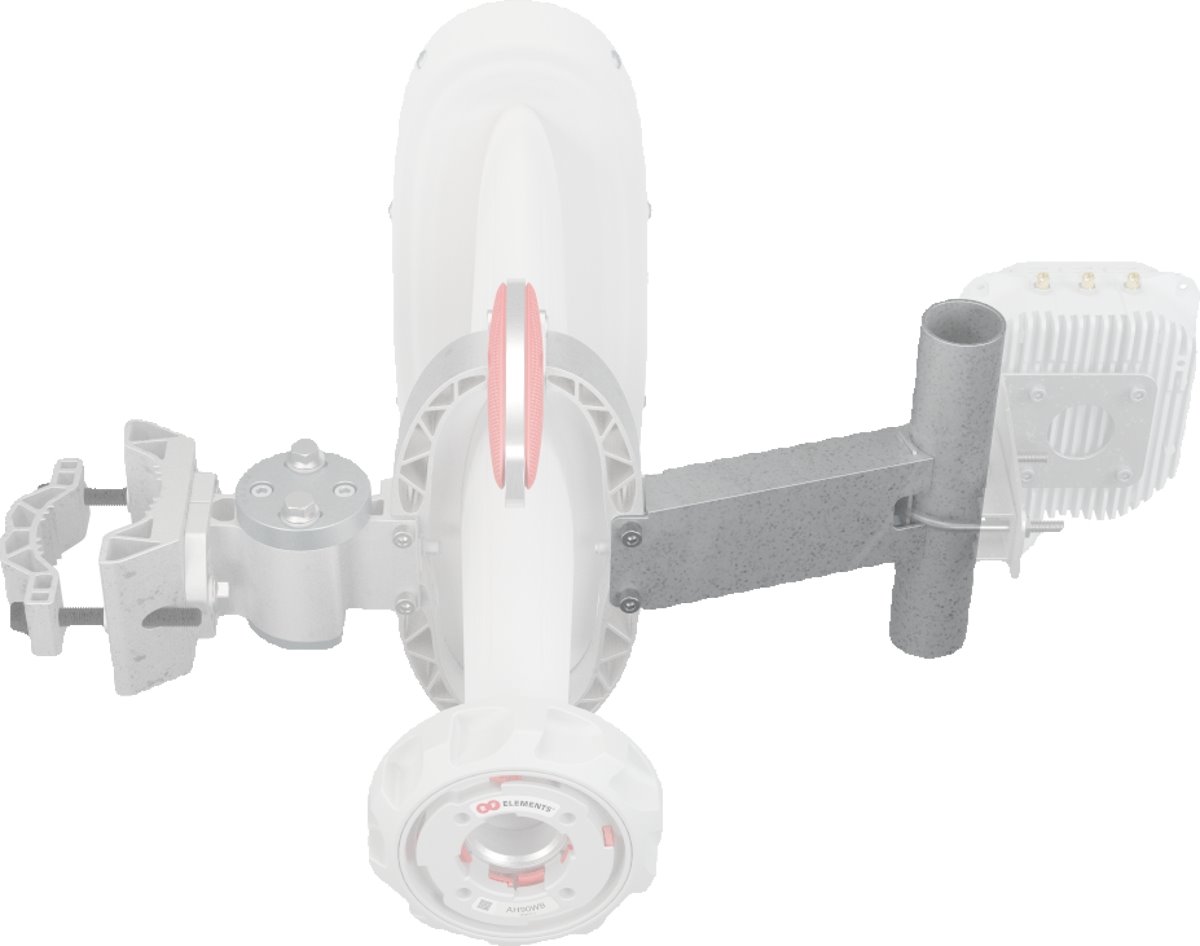

• Direct mounting of Tachyon TNA-305X on asymmetric horn antennas
• Joint azimuth and elevation adjustment with the antenna for precise pointing

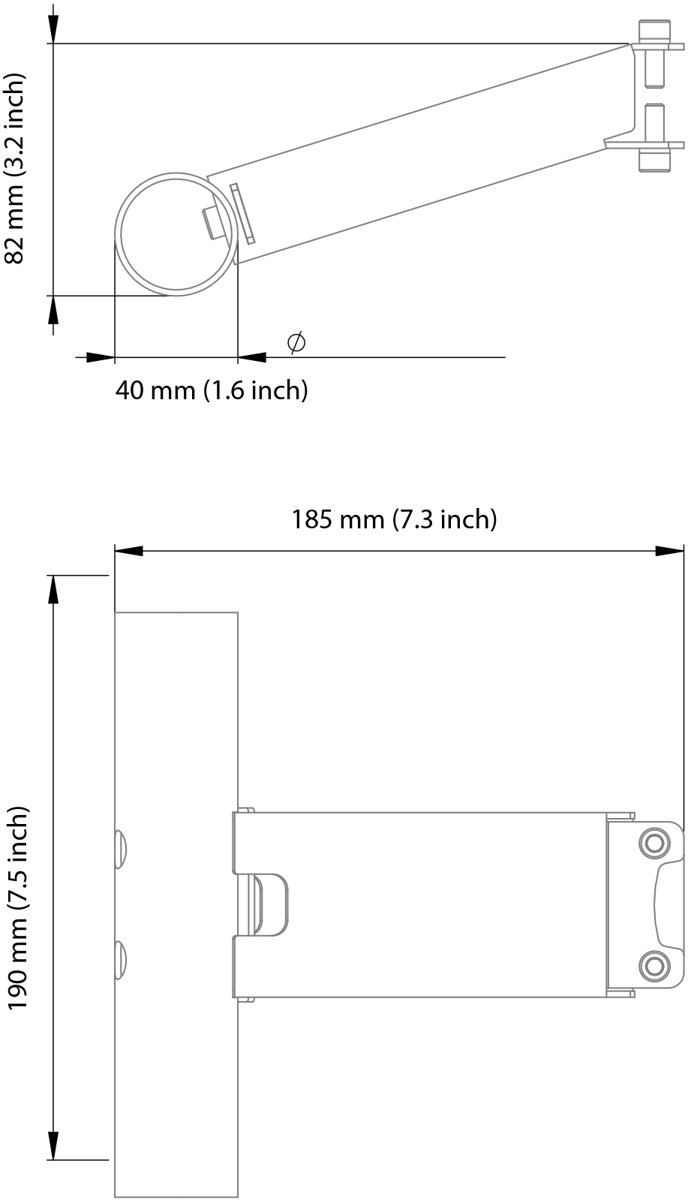

• Universal mounting point (40 mm tube) also for third-party devices

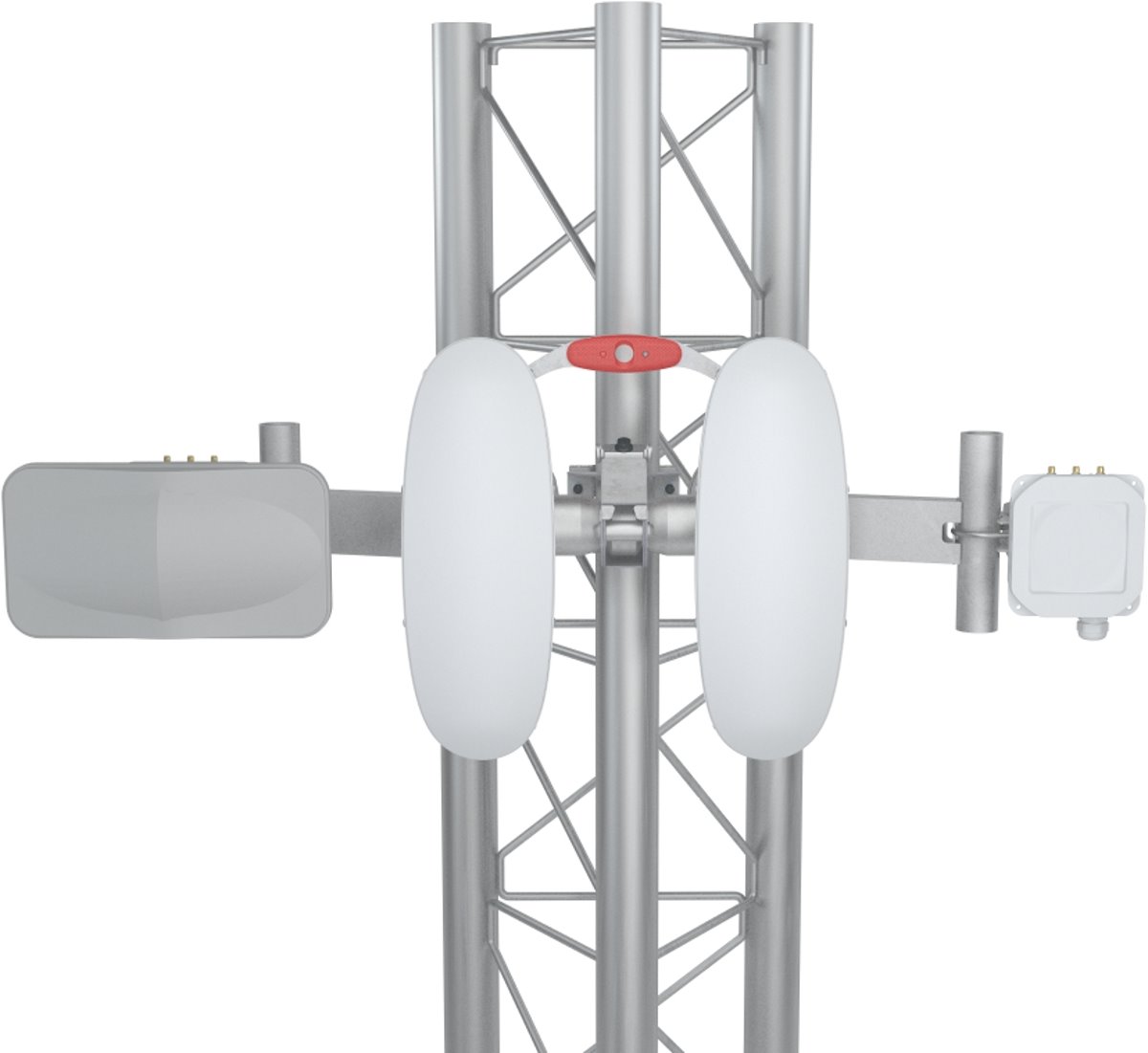

• Up to 2 brackets can be installed on one 4×4 asymmetric antenna (on each side)
• Horizontal mounting support – saves space on the mast

Wide compatibility - compatible with all RF Elements asymmetric horn antennas with aluminum ring and all sector antennas Tachyon:

• 6 GHz AH-WB Wideband series
• 5 GHz AH-TP (legacy)
• all 4×4 asymmetric horn antennas
• Full compatibility with TNA-AK (90° kit)
