Refurbished: IMCO POWER VAN01 PoE, network power supply, 55V/0.9A, 50W

Name: Refurbished: IMCO POWER VAN01 PoE, network power supply, 55V/0.9A, 50W
Brand: IMCO POWER
SKU: 39752
Price: 34.41 EUR
Availability: InStock

Network source 85-265V ~ 50Hz/48V (1a), DIN bar, passive POE 1GB, optional power wires.More information

Producer

IMCO POWER

Code

00033895

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

28.44 EUR exc. VAT

VAT

21%

Your price inc. VAT

34.41 EUR inc. VAT

Ask for a better price

Description

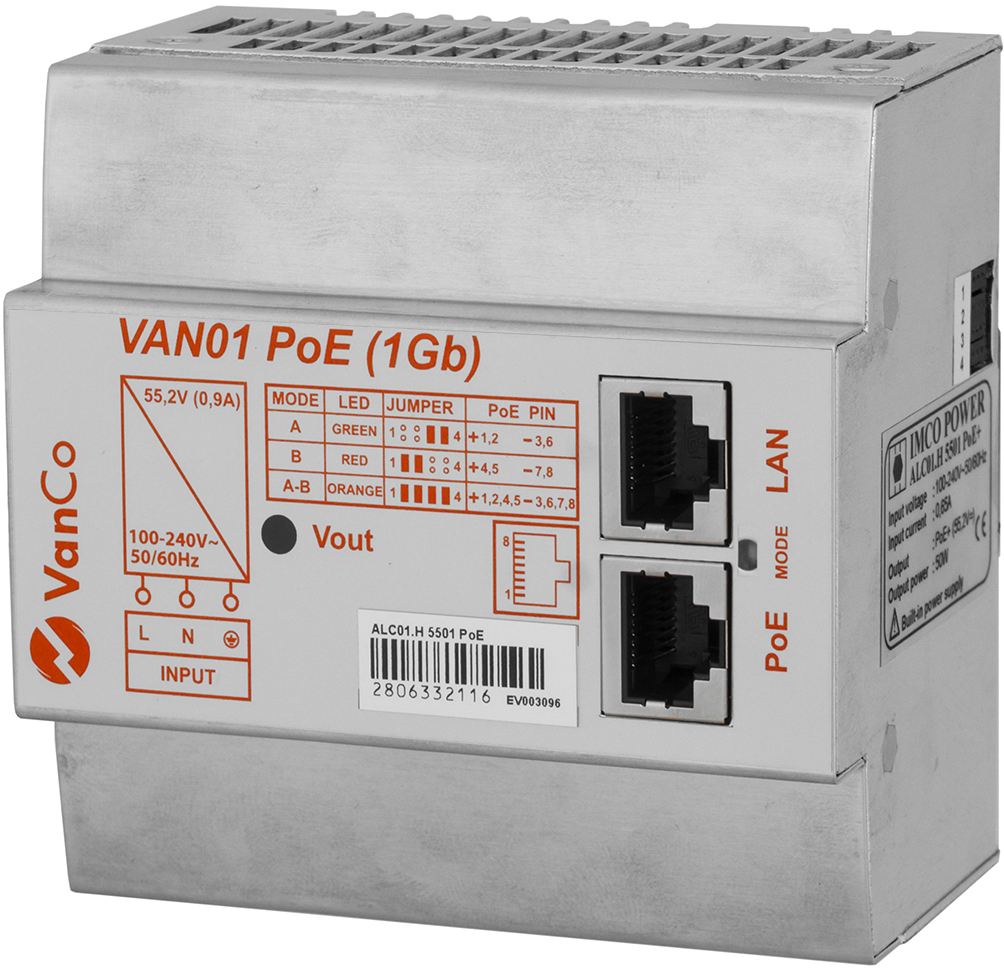

The van01.h PoE mesh source is used for remote power supply via Ethernet cable with 1 Gbps and 50W . The input of the ropes is, as well as the POE output protected from external influences, overvoltage protection. Sources are capable of long-term operation in industrial environment from-25 ° C to +60 ° C, there are used components not succumbing to fast aging and, moreover
Mounting the source on the DIN rail , with the possibility to get
LED"Vout" on the front panel indicates the operation of the source.
LED"MODE" indicates settings A, B or A+B. The standard can be adjusted with jumpers on the side of the source.

Universal power input 100-265V ~ 50/60Hz
Passive PoE 1Gbps with overvoltage protection
galvanically separated
standards: STN EN 60950, STN EN 55022, STN EN 61000-3-2
Output voltage stability: 4#i6per#
Output voltage ripple: 100MV

Parameters

Ethernet parameters
DC Output Voltage (V)	55
DIN rail mounting	Yes
Input Voltage (V)	230
Local signalling	LED
Output Current (A)	0.9
Output Power (W)	50
Power consumption (W)	50
Properties	Ochrana proti zkratu, Ochrana proti přepětí
Rack mounting	Ano
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	68
Design	DIN rail, Standalone
Efficiency (%)	91
Height (mm)	90
Operating Temperature	-25° až +60°C
Weight (kg)	0.33
Width (mm)	91
PoE parameters
Number of PoE ports	1
PoE standard	Pasivní
Powering
PoE	Yes
Typ zdroje	PoE
