Mimosa N5-X12, Horn Twist-on antenna, 12dBi (for C5x unit)

Compare Facebook Set Watchdog

Mimosa N5-X12, Horn Twist-on antenna, 12dBi (for C5x unit)

Name: Mimosa N5-X12, Horn Twist-on antenna, 12dBi (for C5x unit)
Brand: MIMOSA NETWORKS
SKU: 74721
Price: 16.21 EUR
Availability: OutOfStock

Horn Twist-on antenna in Dual-Slant with 12 dBI profit, 38 ° radiation angle with 5 GHz frequency for use with C5X, C6X and B5X units.More information

Producer

MIMOSA NETWORKS

Part No.

100-00086(N5-X12)

Code

00075041

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

13.40 EUR exc. VAT

VAT

21%

Your price inc. VAT

16.21 EUR inc. VAT

Ask for a better price

Description

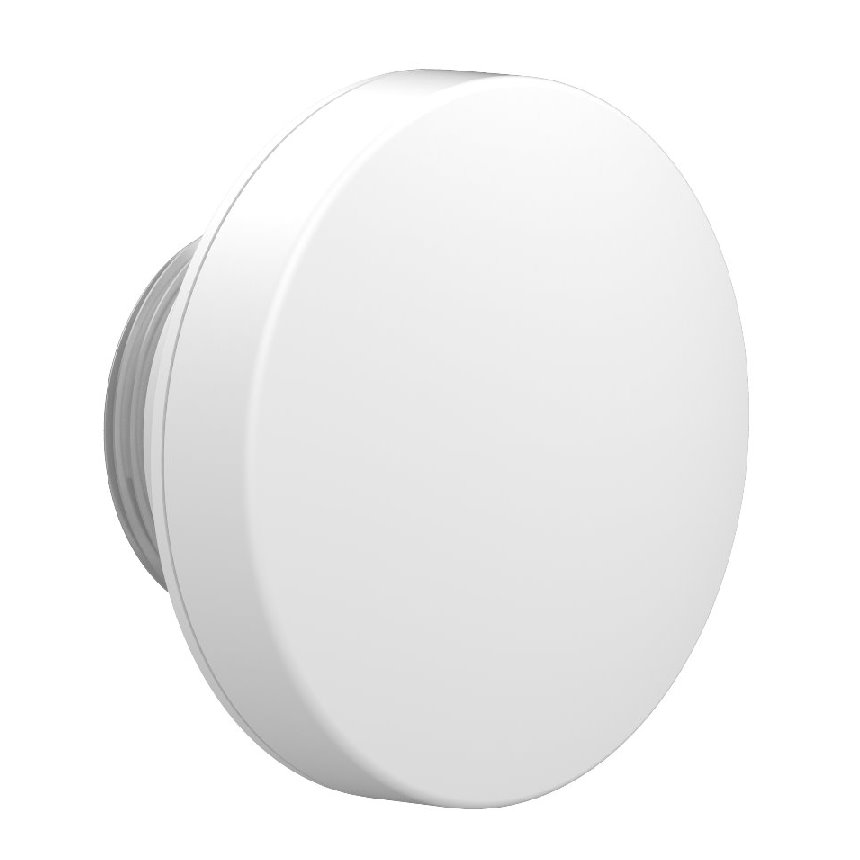

Mimosa N5-X12 is an antenna of the Horn SE profit of 12 dBi and radiation angle 38 ° for use with units C5X, C6X and B5X . The units are connected to the antenna using Twist-on connector that eliminates losses caused by the RF cabling and connectors.

The antenna is in dual-Slant when polarization is turned 45 ° .

Package content:

1pc antenna

Parameters

Physical parameters

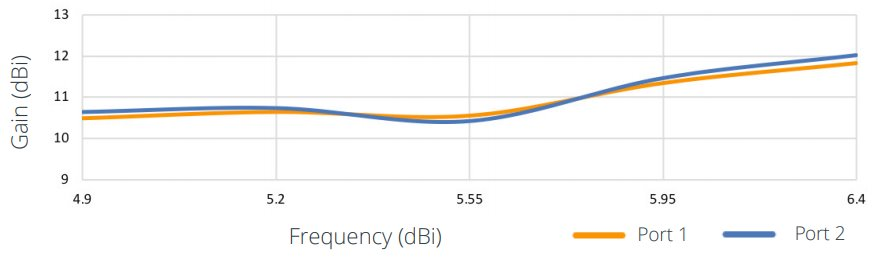

Antenna gain (dBi)	12

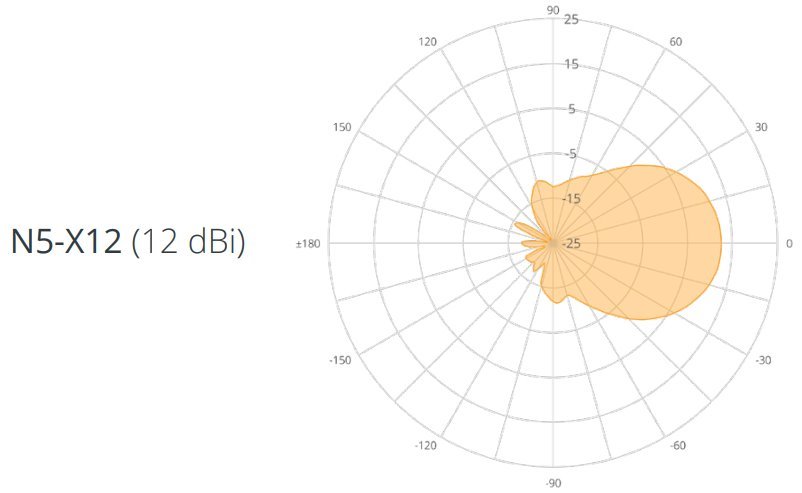

Beam angle horizontal (°)	38
Beam angle vertical (°)	0,5
Connectors	Twist-on-port (Mimosa)
Front rear ratio (dB)	29
Polarization	VH (slant)
Depth (mm)	67
Design	Outdoor
Height (mm)	76
Weight (kg)	0.15
Width (mm)	76
Wireless parameters
Antenna type	Directional
Frequency	5 GHz
MIMO	2x2
