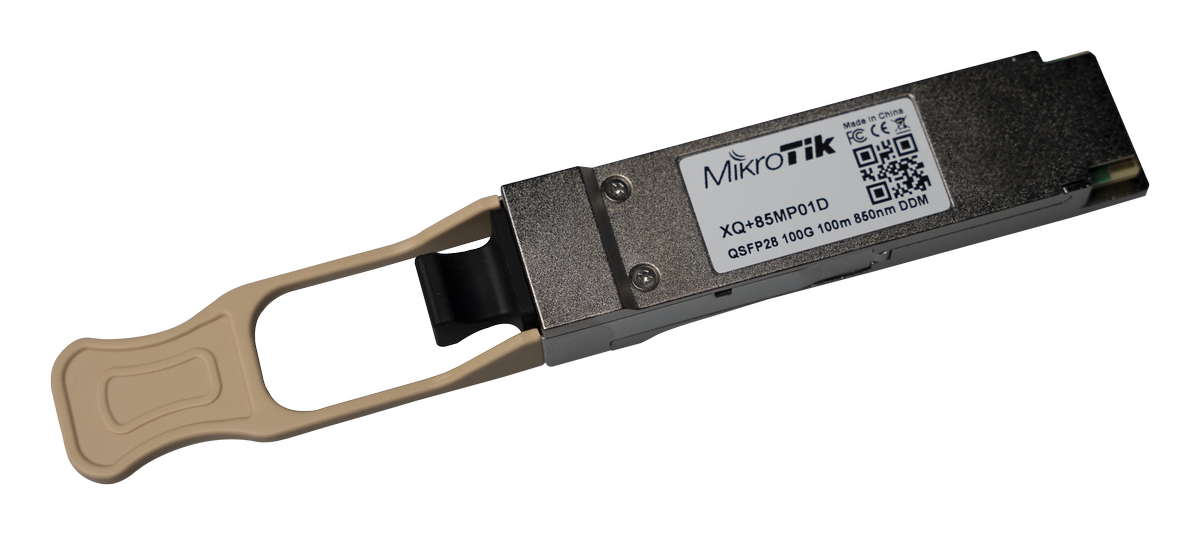

MikroTik QSFP28 optical module XQ+85MP01D, 100Gbps, multimode

MikroTik XQ+85MP01D optical module in QSFP28 format supports 100 Gbps transfer rate, works at 850 nm wavelength and enables connection at this high speed up to 100 meters. It has a 1x12 MTP/MPO connector. This optical module offers four independent full-duplex channels with speeds up to 25 Gbps per channel bandwidth and a total bandwidth of 100 Gbps. The module has built-in digital diagnostics and advanced features such as optical power monitoring.

Properties:

• Format: QSFP28
• Transmission speed: 100 Gbps
• Optical interface type: Multimode / 850 nm
• Connector: 1x12 MTP/MPO
• Max distance: 100 m
• Tested compatible models: CCR2216, CRS504, CRS518
