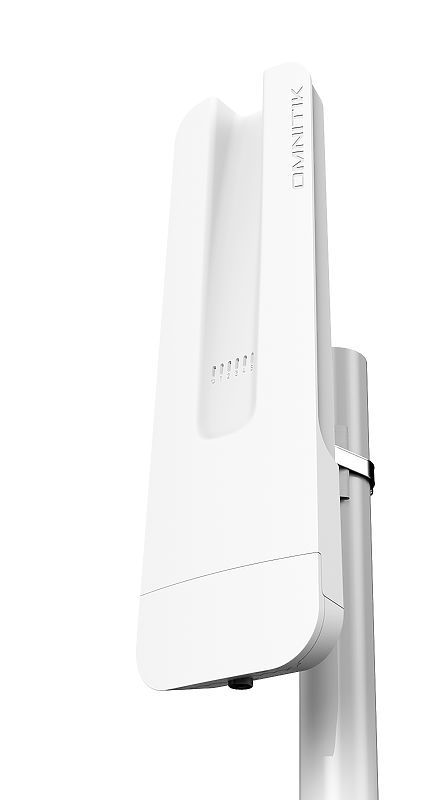

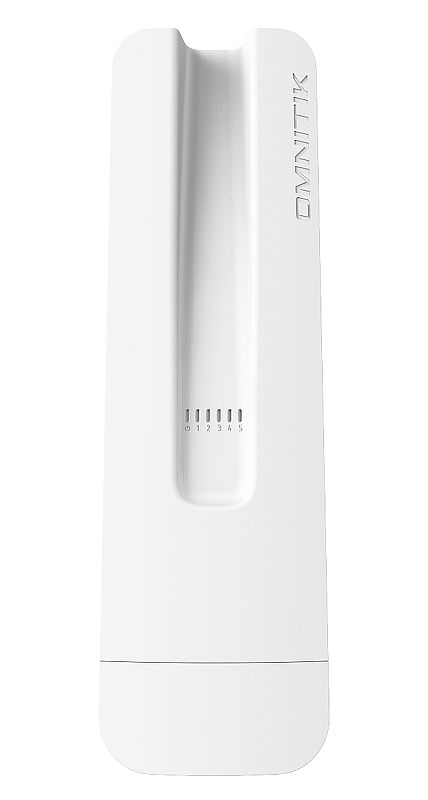

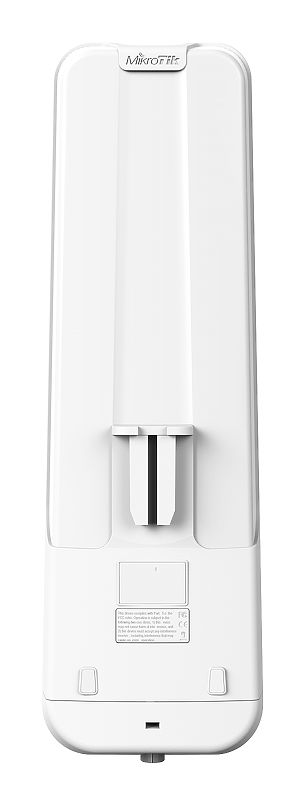

MikroTik OmniTiK 5 PoE ac, RBOmniTikPG-5HacD, 5 GHz

Omnitik 5 AC is an outdoor Access Point with two integrated omnidirectional 5 GHz antennas with a 7.5 dBI , 5x Gigabit LAN and one USB port to connect a 3G/4G modem. Omnitik 5 AC supports 802.11a/N/AC wireless standards, radio transmitting power up to 1300 MW (31dbm) and modulating speed 866 Mbps .

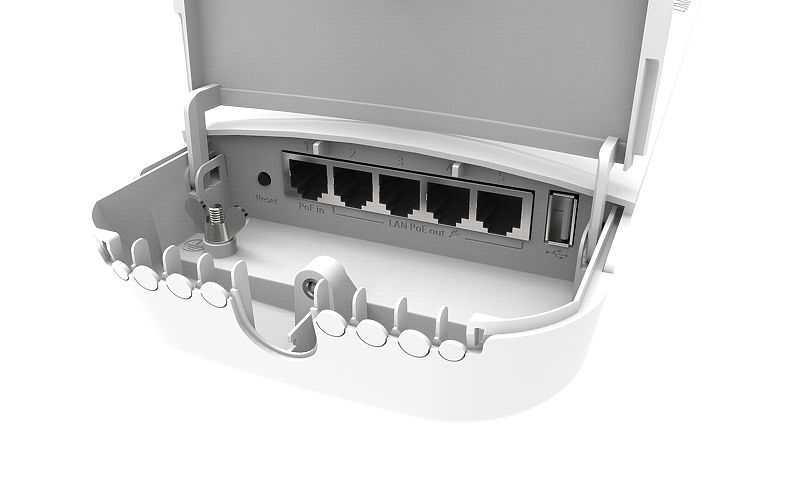

As far as the power supply is concerned, the Omnitik 5 AC can only be powered via the first port marked as POE IN, using a passive POE 12 to 57 V. Omnitik also supports power using active POE 802.3AF. On 2-5 ports, it supports power supply with other devices with the voltage to which the Omnitik is powered.





parameters:

name	value
wireless frequencies (GHz):	5
WIFI transfer speed-5 GHz (Mbps):	866
WiFi Standards:	802.11ac, 802.11n, 802.11a
Transmitter output of 5 GHz (dbm):	31
SPEED. angle in the azimuth plane (-6 db)[°]:	360
antenna profit[dbi]:	7.5
version:	Outdoor
operating temperature (° C)	-40 to 70
Dimensions (W x H x H):	129 x 416 x 58 mm
CPU:	QCA9557
Number of CPU cores:	1
RAM (MB):	128
CPU Frequency (MHz):	720
Storage size (MB):	16
Number of CPU cores:	1
LAN speed	5x 10/100/1000 Mbps
Gigabit LAN:	Yes
USB:	Yes
Max. Energy Consumption (W):	18
Power via POE:	12 .. 57 in DC
Power type:	POE
POE types:	input, input and output
Number of Poe Out Ports:	4
operating system:	ROUTEROS-L4

Package content:

device

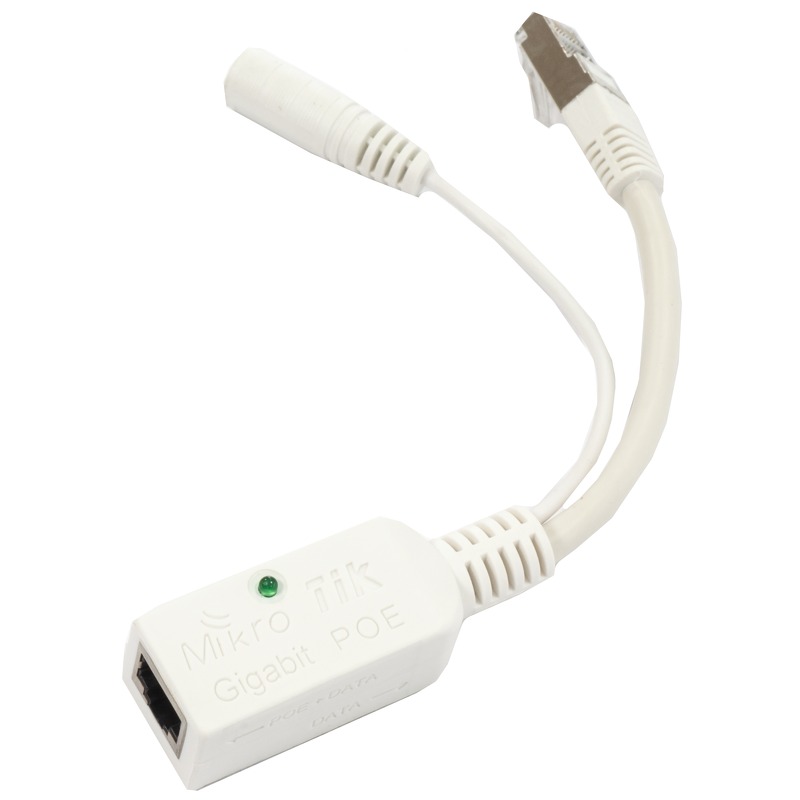

Poe injector

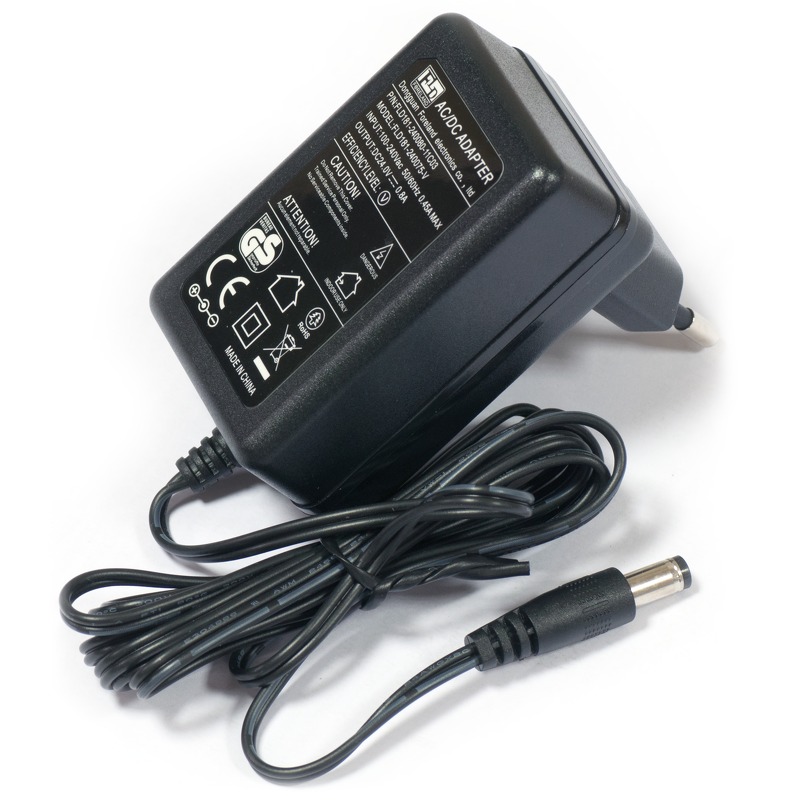

power adapter 24 V/2.57 and

power cable

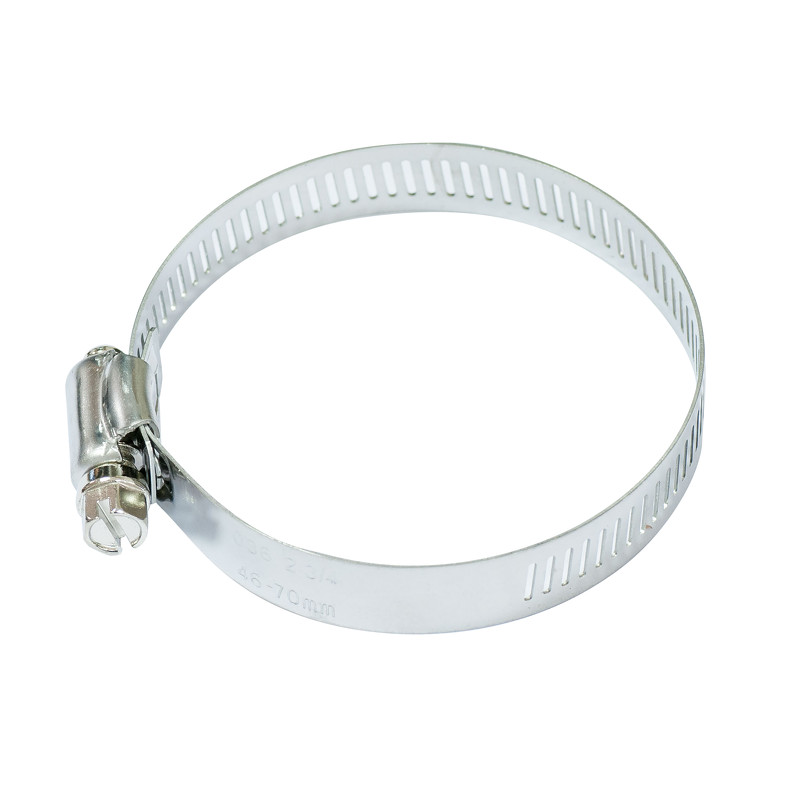

Metal tightening tape

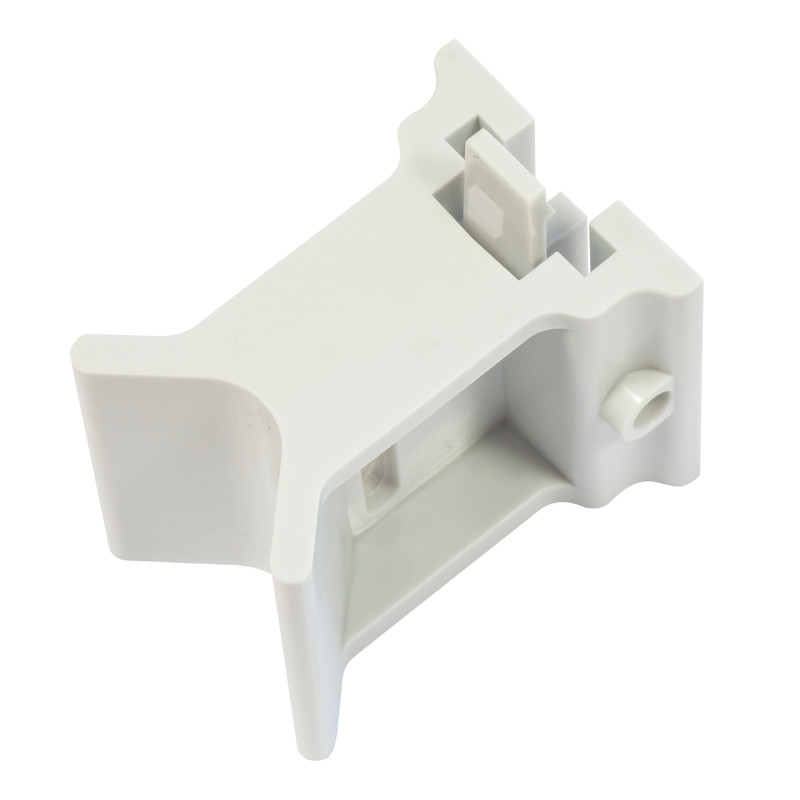

Plastic holder
