MikroTik netFiber 9, CRS310-1G-5S-4S+OUT, outdoor optical switch

MikroTik netFiber 9 is a powerful optical outdoor switch with 5x SFP and 4x SFP + slot and also 1x metallic Gigabit Ethernet port. The unit is equipped with a powerful ARM v7 processor, Marwell 98DX226S switch and 256 MB DDR3 RAM.

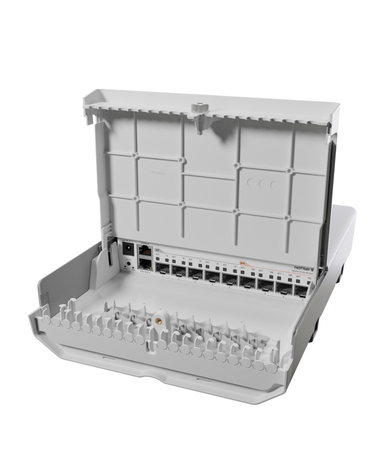

All the technology is intended for outdoor use and placed inside a durable box - which also has a handy additional organizer for easy arrangement of all cables and fibers.

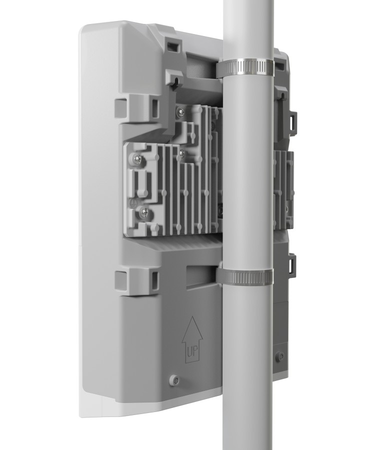

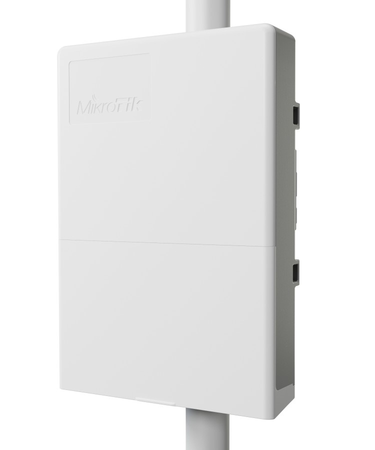

The switch can be powered by a standard DC power supply via DC jack 18-57 VDC or by PoE (active and passive 18-57 V). Protection against external conditions is ensured by IP54 protection, mounting is possible both on the pole using the supplied tapes or on the wall.



Parameters


Installation type	Outdoor
Chassis	Plastic

Switch	98DX226S
RAM	256 MB
Internal storage size	16 MB

LAN speed

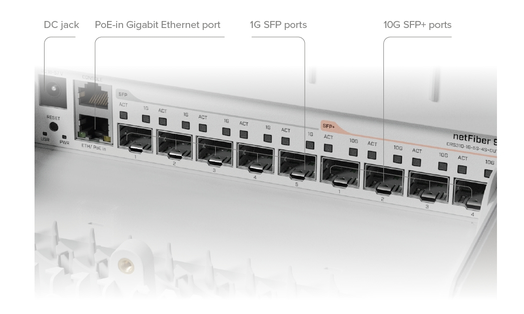

4x SFP +, 5x SFP, 1x RJ45

Power input	PoE in, DC connector, 18 .. 57 V DC
PoE type	PoE-In
Max. energy consumption	15 W

Operating system:

RouterOS - L5

Ingress protection:

IP54

Dimensions W x H x D

304 x 212 x 71 mm

Operating temperature

- 40 ° C to 70 ° C

Package:

• Device
• 48 V / 0.95 A power adapter
• Gigabit PoE injector
• Wall mount kit
• Cable ties for pole mounting
