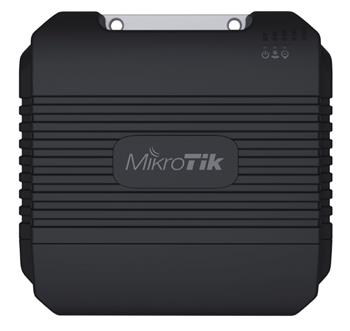

MikroTik LtAP

Compact devices for outdoor, automotive or mobile use with built-in LTE modem ( 2g, 3g, 4G/LTE ), WiFi ( 2.4 GHz 802.11b/g/n dual-chain) and gps . It supports up to 3 minisim to ensure sufficient connectivity to the operator network, or easy to use abroad (roaming). It is also possible to use 1x metallic port ( Gigabit Ethernet ), 1x serial console (RS232) and 1x USB port.

For further expansion of the device, one free mini-mini slot can be used-for example, another LTE modem to ensure redundancy or 5 GHz WiFi card to extend the WiFi connection options.

Thanks to GNSS support (GPS, Glonass, Beid, Galileo), LTAP can be used efficiently to provide WiFi in means of transport, including monitoring their movement. The external GPS antenna is sold separately, it is possible to connect any via MMCX connector). For LTE, the unit offers built-in antennas with 4 dBI , or the possibility to connect external antennas using UFL connector.

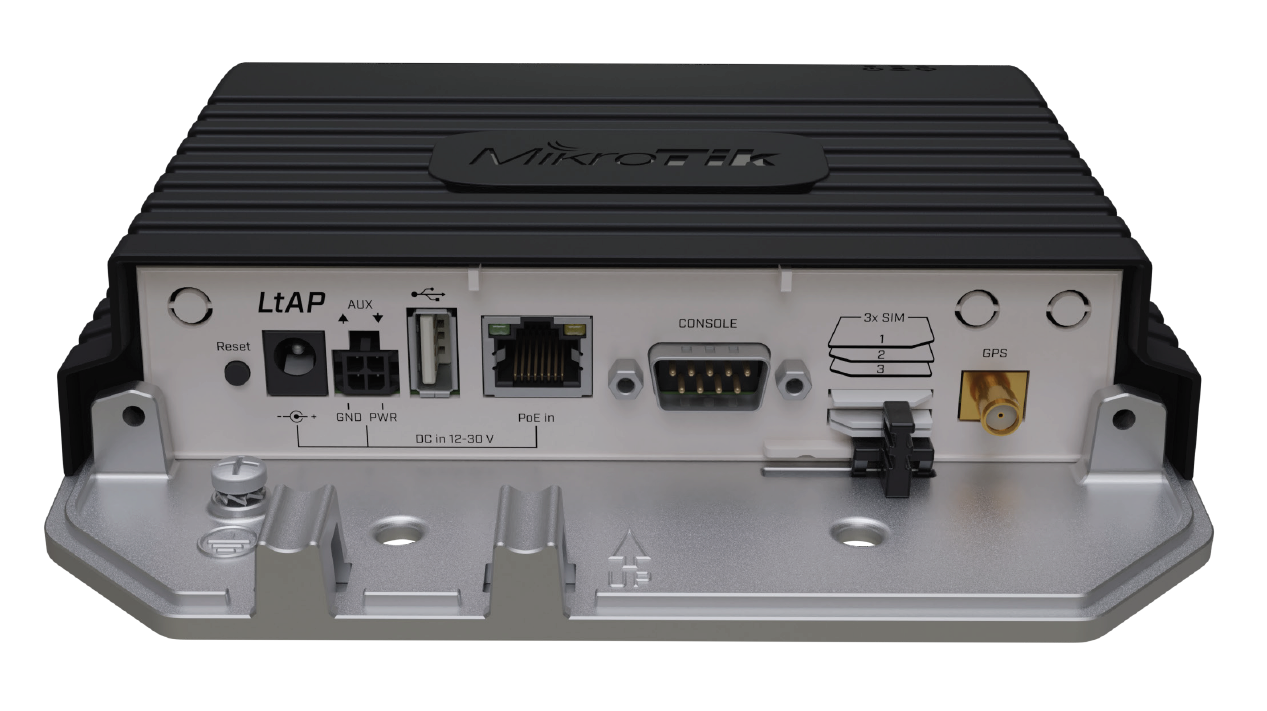

Power can be used both by means of an ethernet cable (POE) and over two types of DC connectors-a classic jack or a 4-pin connector with a lock for robust connection in means of transport.

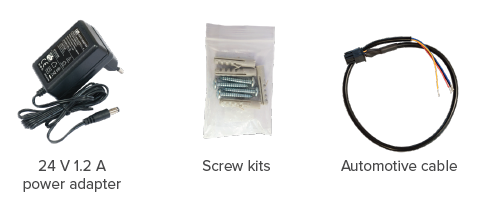

The unit is supplied including the L4 level license , so it can be used as an access point. The package includes an adapter (24 V/1.2 A), a power cord for use in cars and small mounting material.



parameters: License

name	value
CPU:	DUAL-CORE MEDIATEK MT7621, 880 MHz
RAM:	128 MB
Memory:	16 MB Flash
10/100/1000 Ethernet ports:	1
Wireless:	2.4 GHz 802.11b/g/n dual-chain
WiFi antenna profit:	2.5 dbi
lte antenna profit:	4 DBI (U.FL connector)
ADRIPLATION ASSEMBLY BUDGE:	360 °
LTE Categories:	4 (150 MBPS Downlink, 50 Mbps uplink)
3G Category:	R7 (21 MBPS Downlink, 5.76 Mbps uplink)
2G Category:	CLASS12
mini SIM slots:	3
Input voltage:	DC Jack or 4-Pin Automotive Connector 12-30 V
POE IN:	Passive PoE 12-30 V
Dimensions:	170 x 162 x 40 mm
Operating temperature:	-40 ° C. +70 ° C
operating system:	Routeros, Level 4
MiniPcie slot #1:	Upper slot-PCIe and USB 2.0 Card support-Shared with USB 2.0 Type and Port (can be used either PCIe or USB, not both at once)
MiniPcie slot #2:	Bottom slot-USB support (2.0 and 3.0) MiniPCIE modems (without PCIe support)
USB port:	1 USB 2.0 Port Type A (to use only if there is no mini-slot #1 use)
built-in GPS:	Yes (the possibility of an external antenna via MMCX connector)
serial port:	RS232
Maximum consumption:	24 W
supported bands:	LTE (FDD), LTE (TDD), 3G, 2G

accessories
