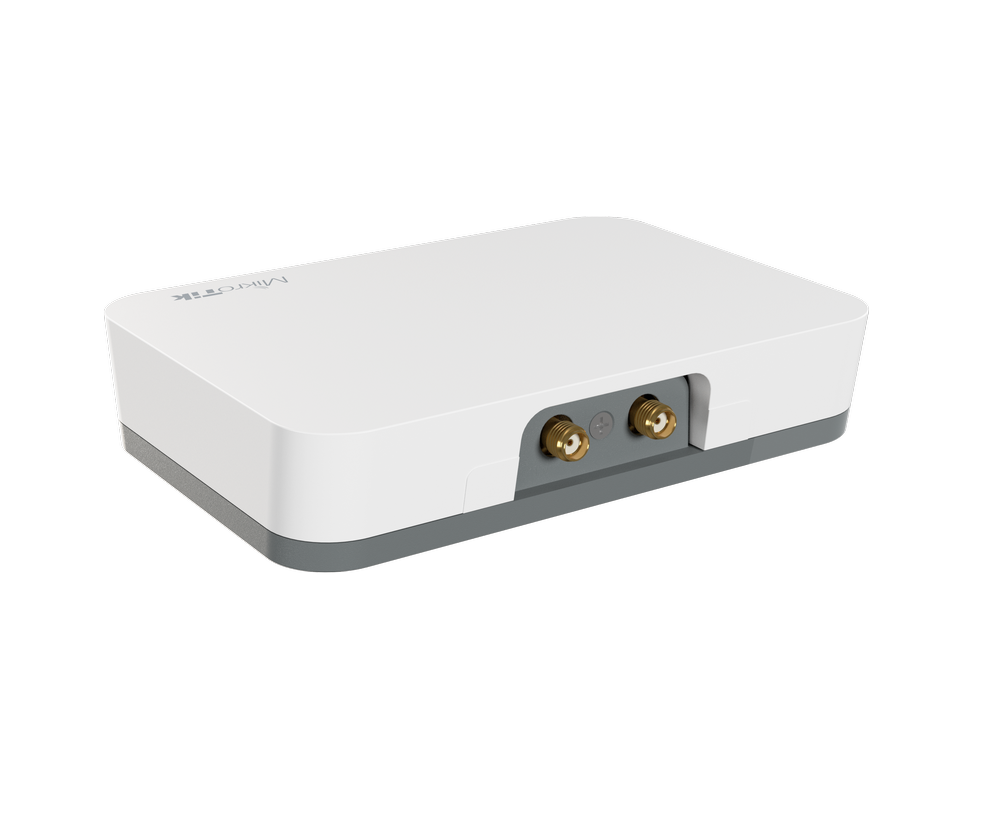

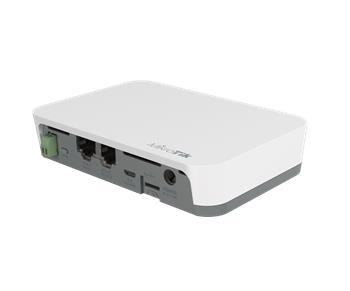

MikroTik KNOT

MikroTik KNOT is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe. KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.

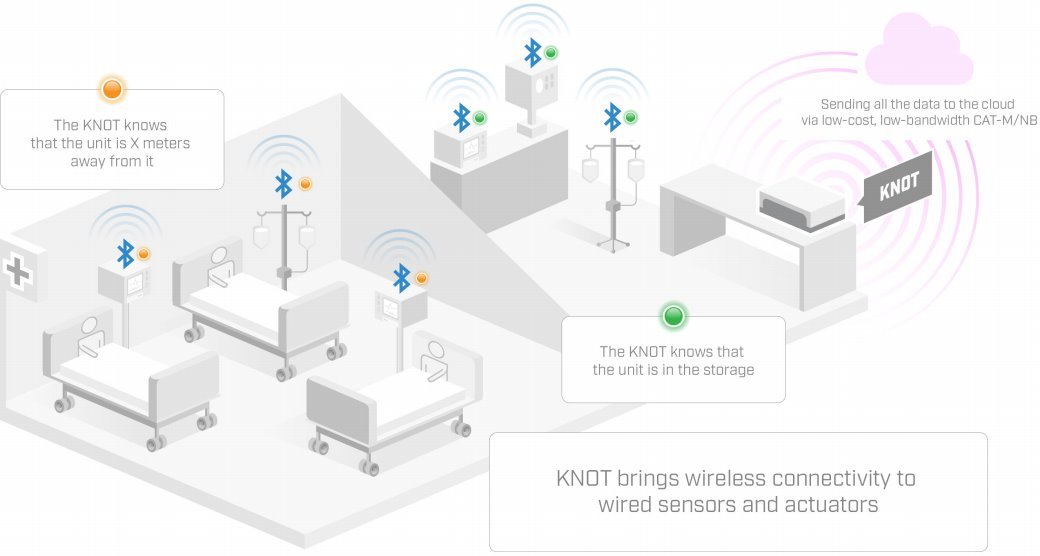

You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.

It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day.

KNOT features so many protocol support and connectivity options: 2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!

With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format. It has powerful filters for forwarding only relevant packets and ignoring others.


Features:

• GPS Support (GPS, GLONASS, BeiDou, Galileo) - SMA female connector
• Narrow Band Support and LTE cat. M1 technology - SMA female connector
• Integrated WiFi (802.11b / g / n), 300Mbps, 2x2 MIMO
• 2x / 100Mbps (1x PoE IN, 1x PoE out)
• Bluetooth 5.2 (BLE)
• RouterOS operating system with L4 license and & nbsp; MQTT support
• SIM card slot (Nano SIM)
• Extra interface & nbsp; RS485 / Modbus and GPIO
• Operating temperature -40 to + 70 ° C
• Power: DC connector, PoE, Micro USB
