      MikroTik Chateau 5G R17 ax
      Compare Set Watchdog

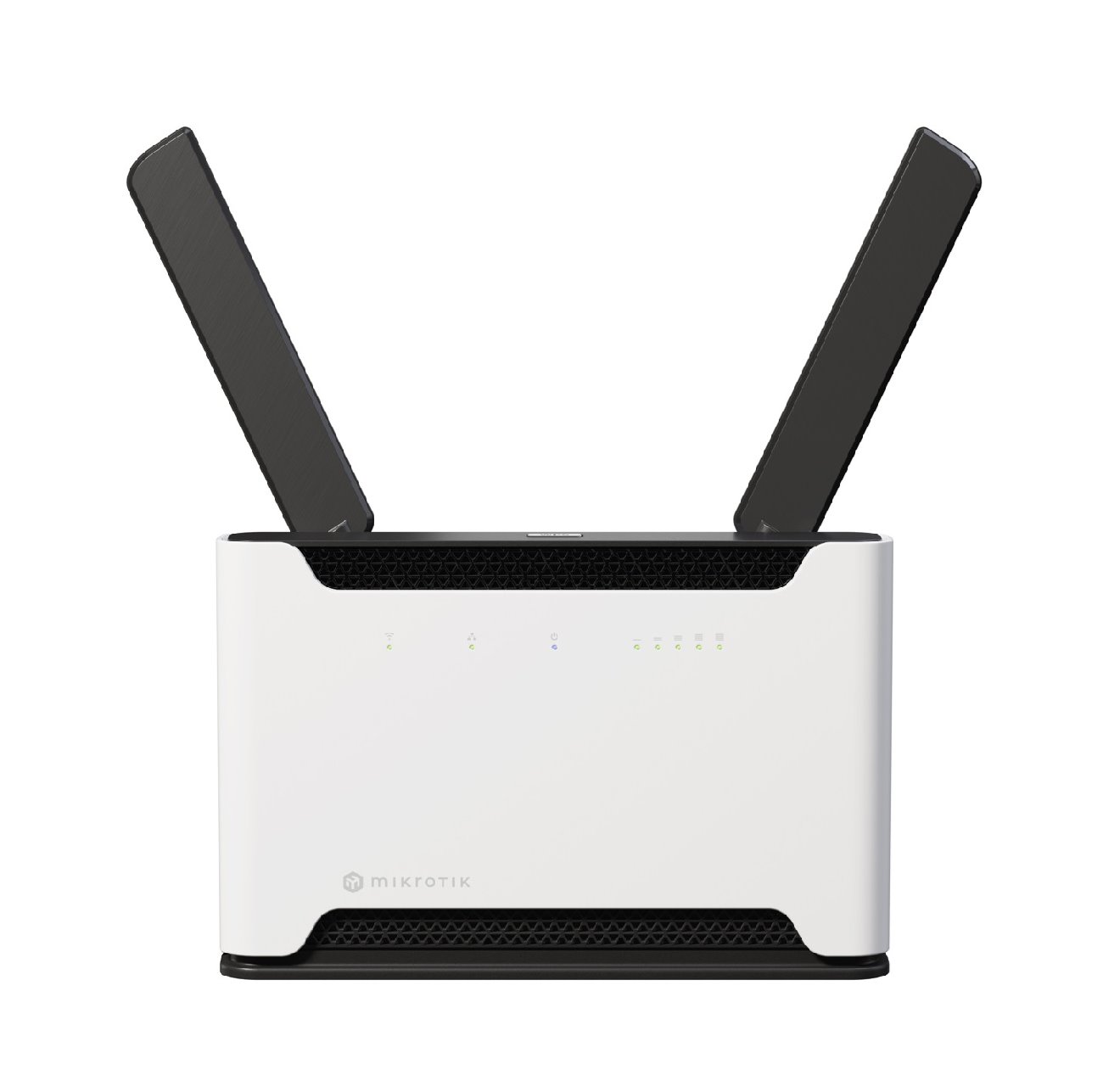

      MikroTik Chateau 5G R17 ax

      Mikrotik Chateau 5G R17 AX with four integrated LTE/5G antennas and two external Wi-Fi 6 antennas also offers 4x GEET ports, 1x 2.5geth port and 1x USB port. It has a modulation speed of 574Mbps (2.4 GHz) and 1201Mbps (5 GHz).More information

      Producer
        MikroTik

      Part No.


      S53UG+5HaxD2HaxD-TC&RG650E-EU


      Code
       00075202
      Warranty
      24 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      269.01 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      325.50 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        microtik Chateau 5G R17 AX combines elegant design, powerful dual Wi-Fi 6 coverage and extensive options with routeros v7 and full L4. Aggregation by belt. On the back offers 1x USB port, 4x geth ports and 1x 2.5geth port. The result is a faster connection , a more stable and response , as well as in areas with weaker coverage. It has modulation speeds 574Mbps (2.4 GHz) and 1201mbps (5 GHz).

        With four integrated LTE/5G antennas and two external Wi-Fi 6 antennas , Chateau offers excellent power for downloading and sending data even in a densely populated environment:
        -Smart aggregation bands with wide support FDD and tdd
        -Strong signal reception thanks to 4x4 technology outside

        Chateau has integrated eSim , which is fully compatible with the Connectivity microtik (pre-deactivated data plans), third parties (ESIM profiles of mobile operators) and more ESIM profiles (easily adding, switching and storing).

        VPN- Optimize streaming, limit the bandwidth, create vlan , block websites, or have a SMS when you exceed limits-all without any hidden fees or subscriptions. In addition, the mobile app for iOS and Android that simplifies installation.


        Package content
        • device
        • power adapter 24 V/1.2 and
        • flat UTP cable 1.5m

        Parameters

        Antenna gain (dBi) 3, 6
        Consumption 26
        CPU - frequency (MHz) 1800
        Encryption WPA, WPA2, WPA3
        Interní uložiště (MB) 128
        IPv6 support Yes
        Number of USB ports 1
        Operating systém MikroTik RouterOS - L4
        Počet CPU jader 4
        Počet vestavěných antén 4
        Power Supply DC
        Processor IPQ-6010
        Properties VLAN
        RAM 1024 MB
        Sensitivity (dBm) -100

        Ethernet parameters
        Gigabit LAN yes
        LAN port speed 1 Gbps, 2,5 Gbps

        Physical parameters
        Depth (mm) 44
        Design Standalone, Indoor
        Height (mm) 156
        Operating Temperature -40° až +70 °C
        Width (mm) 240

        Wireless parameters
        Antenna type Vestavěná, Removable
        Frequency 2,4 GHz + 5 GHz
        MIMO 4x4
        MIMO (2,4 GHz) 2x2
        MIMO (5 GHz) 2x2
        Operating mode AP, AP Router
        Počet fixních antén 2
        Slot na SIM kartu Ano
        Vysílací výkon 2,4 GHz (dBm) 24
        Vysílací výkon 5 GHz [dBm] 24
        WiFi Standards WiFi 6 (802.11ax)
        WIFI transfer rate - 2.4 GHz [Mbps] 574
        WiFi transfer rate - 5 GHz [Mbps]: 1201
