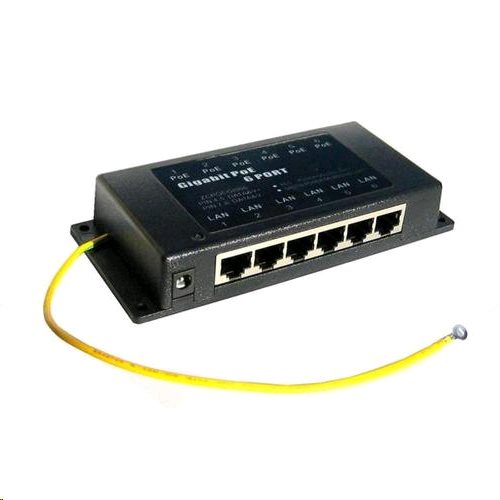

MHPower POE-PAN6-GB, Gigabit shielded 6-port passive PoE panel

Panel integrates 6 gigabit passive shielded POE injectors with a power range of 5-48V. Home ; Universal solution for remote power greater number of active elements with integrated extractor over UTP cabling. Home ; Over-current protection (overcurren...More information

Producer

MHPower

Part No.

POE-PAN6-GB

Code

00030583

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

26.20 EUR exc. VAT

VAT

21%

Your price inc. VAT

31.70 EUR inc. VAT

Ask for a better price

Description

panel integrating 6 gigabit shielded passive poe injectors . Supported power range 18 to 57V . It is a universal solution for remote power of a larger number of active elements with an integrated extractor after UTP cabling. Add this through panel to the switchboard to get a power center that you can easily connect between the existing switch and patchpanel, which already leads to a powered device (IP camera, IP telephone, wireless elements, etc.).
Over-Current Protection (current protection) up to 650mA (+/-15#i6per#) on each port, a ground member.

Power input is via 2.1 mm jacks for two diversified power modes in modes A and B ...).

Power supply via mode a:

IP cameras-48V (802.3AF POE)
VoIP phones-48V (802.3AF POE)
wifi ap-aruba, cisco, hp, siklo and other devices supporting power supply in MODE A (pins 1/2-and pins 3/6+)

Power supply via mode B:

microtik, ubiquiti, possibly similar to 24V devices supporting power supply in MODE B (pins 4/5+ and pins 7/8-)
LED signaling:
red: collection on ports lower than 400mA, green: collection on ports 400mA-650mA

The power supply is not included in the delivery, option and power parameters of the source must be optimized according to the appropriate collection of the powered elements and their configuration.

Parameters:

mode

Name	value
input:	24-48V (2.1 Power Jack)
Data:	1/2 &3/6 &4/5 &7/8
Power:	According to the selected A/B
POE standards:	Passive Poe, 802.3af/802.3at
Ethernet:	TIA/EIA 568 CAT. 5
Data Rate:	10/100/1000MBPS
Connector type:	rj-45
operating temperature range:	0 ° C ~ +40 ° C
moisture (operation.):	10# i6per# ~ 80# i6per# rh
Dimensions[mm]:	150 × 65 × 26

Parameters

Ethernet parameters
Input Voltage (V)	48, 24
Power consumption (W)	94, 186
Network interface (Mbps)	10/100/1000
Number od RJ45 ports	6
Physical parameters
Depth (mm)	65
Design	Standalone
Height (mm)	26
Operating Temperature	0° až +40°C
Width (mm)	150
PoE parameters
Number of PoE ports	6
PoE standard	Pasivní, 802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
