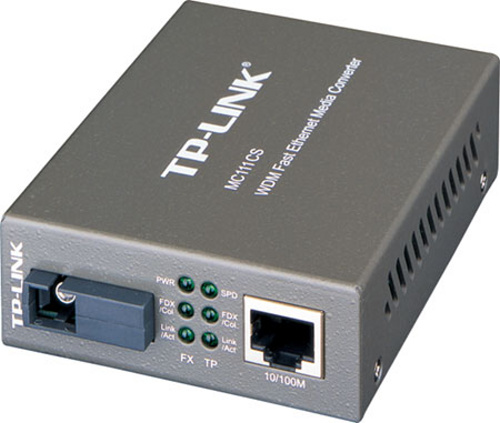

Media converter/converter TP-LINK, WDM, MC111CS, 100 Mbps, SM, SC, 20km, 1550nm

Media converter using WDM single-mode with one SC connector. On the other side of the optical fiber you need to use the MC112CS converter to find out in related products.

Metallic network converter to optical. It is suitable wherever the distance between two points is longer than the classic metallic network allowing and it is not possible to use a galvanic connection. Optical fibers also well resist disturbing electromagnetic or atmospheric influences. WDM singlemode converter-converter with two-way data transfer at one optical thread. Bidirectional transmission is achieved by using two wavelengths, one for broadcasting and the other for reception. This eliminates the need to guide a separate fiber for each transmission direction.

has an auto-negotiation and auto-mdix

function

LED Indications: Indications on and monitoring of port activities

parameters:

name	value
LAN port:	10/100 MBPS RJ45
Power:	9 V/0.8 and
standards:	IEEE 802.3/IEEE 802.3U
Better speed:	10/100 Mbps
TX wavelength (nm):	1550
Wave length RX (nm):	1310
Operating temperature (° C):	0 to 50
Weight (g):	340
Dimensions (mm):	94.5 x 73 x 27
reach (km):	20
Optical cable:	9/125
Connector:	SC, RJ45
transmitted signals:	TXD and RXD
