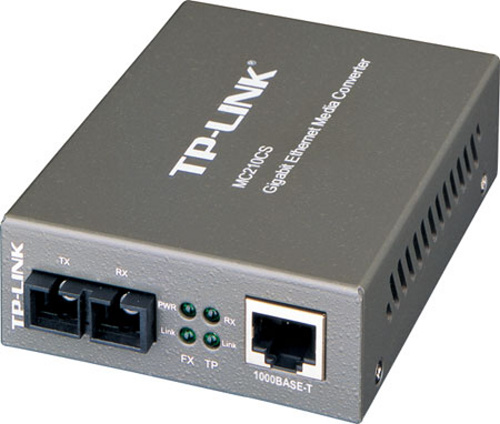

Media converter/converter TP-LINK, MC210CS, 1.25 Gbps, SM, SC, 15km, 1310nm

Gigabit media converter equipped with SC connector (Single-Mode) and 1x RJ45. Version 2 (9 V).

The converter serves as a transition between a classic metallic net and optics. The converter is suitable wherever the distance between two points is longer than the classic matt network allowing and it is not possible to use a galvanic connection. Optical fibers also resistly resist disturbing electromagnetic or atmospheric influences.

The Media converter only supports Gigabit Ethernet. The 10/100 Mbps does not support.

has an auto-negotiation and auto-mdix

function

LED Indications: Indications on and monitoring of port activities

parameters:

name	value
Power:	9 V/0.8 and
standards:	IEEE 802.3AB, IEEE 802.3z
Operating temperature (° C):	0 to 50
Better speed:	1000 Mbps
Dimensions (mm):	94.5 x 73 x 27
Weight (g):	500
Dimensions (mm):	94.5 x 73 x 27
Weight (g):	500
TX wavelength (nm):	1310
Wave length RX (nm):	1310
dosha (km):	15
Optical cable:	SM
Connector:	SC, RJ45
