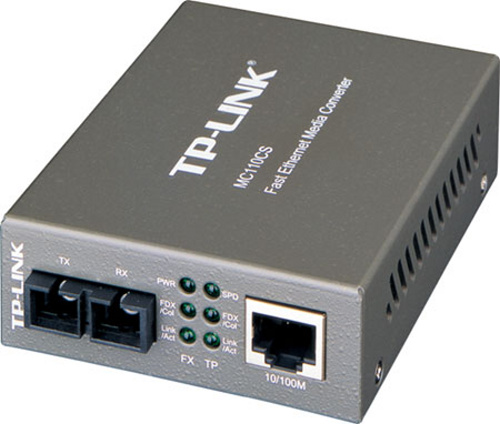

Media converter/converter TP-LINK, MC110CS, 100 Mbps, SM, SC, 20km, 1310nm

Media converter Single-Mode with SC connector. Version 2 (9 V).More information

Producer

TP-LINK

Part No.

MC110CS

Code

00014526

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

28.52 EUR exc. VAT

VAT

21%

Your price inc. VAT

34.51 EUR inc. VAT

Ask for a better price

Description

Metallic network converter to optical. It is suitable wherever the distance between two points is longer than the classic metallic network allowing and it is not possible to use a galvanic connection. Optical fibers also resistly resist disturbing electromagnetic or atmospheric influences.

has an auto-negotiation and auto-mdix

function

LED Indications: Indications on and monitoring of port activities

parameters:

name	value
LAN port:	10/100 MBPS RJ45
Power:	9 V/0.8 and
standards:	IEEE 802.3/IEEE 802.3U
Operating temperature (° C):	0-50
Better speed:	10/100 Mbps
Dimensions (mm):	94.5 x 73 x 27
Weight (g):	340
TX wavelength (nm):	1310 nm
Wave length RX (nm):	1310 nm
reach (km):	20
Optical cable:	9/125
Connector:	SC, RJ45

Parameters

Ethernet parameters
LAN bit rate	10/100 Mbps
Optical parameters
Fiber type	Singlemode
Optical connector type	SC
Reach (km)	20
RX wavelength (nm)	1310 nm
Transmission type	2 threads
TX wavelength (nm)	1310 nm
