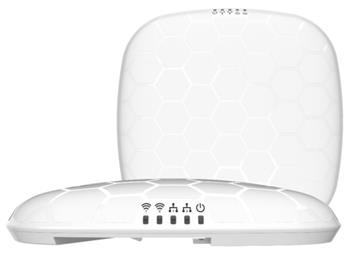

LigoWave AP Infinity NFT 3AC lite without power supply

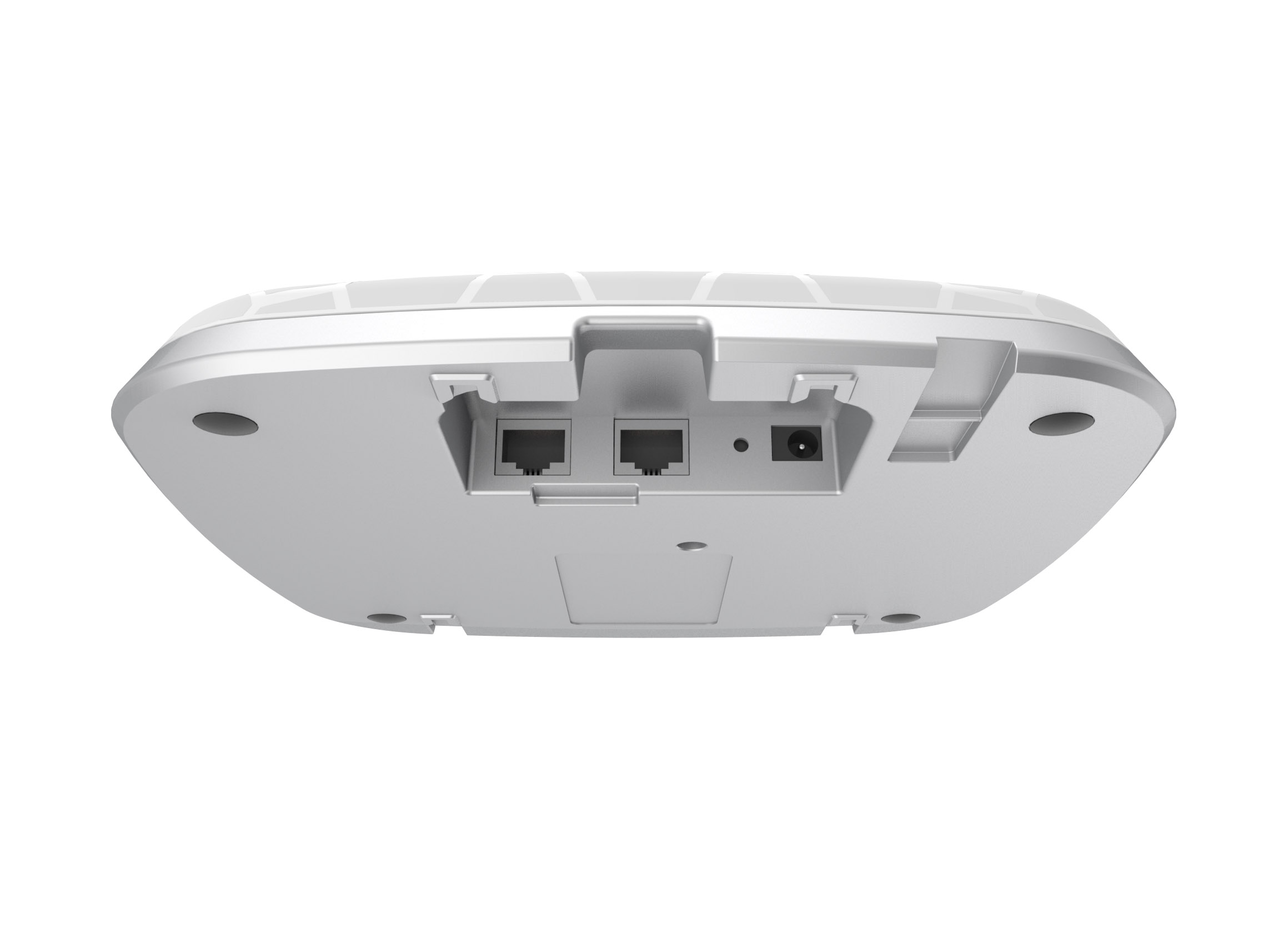

NFT 3AC Lite is a Wi-Fi access point based on 802.11AC technology with integrated 2.4 and 5 GHz radios with 29 dBm output and 3x3 outside antennas. Gigabit Ethernet port with power supply according to the 803.Af/at standard allows you to use POE switch power supply. Another added gigabit port allows you to connect additional devices directly to NFT 3AC. Compact dimensions, elegant design and unique mounting holder make NFT 3AC ideal devices for internal installations requiring cost-effective and high-performance solutions. The NFT 3AC can be powered by POE according to the 802.3af/AT standard from the supplied voltage or from the Central PoE Switche.

The Infinity OS system-user-friendly and very functionally mature interface. This stable system ensures trouble-free operation of the Ligowave device and its easy configuration. Stability has been repeatedly tested with excellent results even in a very guaranteed environment.

Another typical deployment of this device is its activities in a larger network, which connects continuously with a high-quality Wi-Fi signal. This is the new"Infinity Controller" software platform, which
allows easy construction and expansion of small and large wireless networks.



Infinity Controller is part of every Infinity access point and supports the following configurations:

1,"standalone" configuration -each access point is configured separately and typical use is for installation with only one AP

2, integrated controller -one access point is configured as a master, other points as managed. The manager only performs the Master node, Managed nodes get their configuration automatically from the master node. This solution is suitable for installations up to 50 access points.

3, external controller -the controller is operated on a dedicated server (supported platforms are Linux and VM virtual box with Windows, Mac OS and Linux) or as a cloud application. Both variants support geographical virtualization, including Google Maps support and the scalability of access accounts. The cloud application is suitable for smaller and medium installations, and server solutions for all types of networks, most often for networks with several tens to hundreds of access points.

Package content:

AP module

passive poe adapter (48VDC) + power cable

mounting material


promo video
