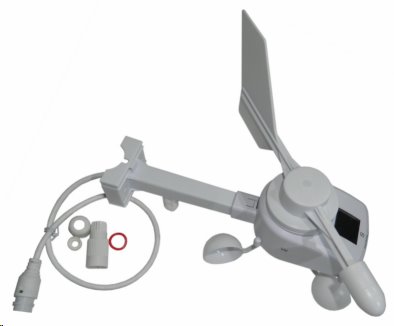

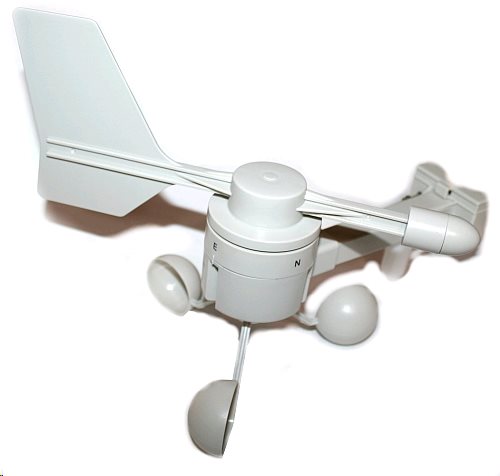

IP/Ethernet weather station IQWS4000

The IQWS-4000 is a meterological station with integrated Ethernet interface , own web server . The M2M communication interface offers SNMP , UDP and http get protocol. It is unique in its compact and clean solution (own TCPIP stack), high transfers, passive POE power supply via Ethernet with LED connection (POE up to 48V MAX) and Class AV overvoltage A.

measured quantities:

• temperature
• wind speed instant, average and impact
• wind direction, beafourt, windchill
• moisture relative, absolute
• dew point
• Absolute pressure
• Results sunlight, UV factor
• Lightning distance detection with the last event, including time

Technical parameters:

wind speed	0 to 180 km/(0 to 50m/s)
resolution	0.1 m/s
detection limit	0.7 m/s
Detection method	Contactless/Hall Sensor, MHz output, 5#i6per#
wind direction	resolution 22.5 °
Graphic representation	16 positions, 360 °
Detection method	Optical Infra Encoder, 950nm band.
temperature	-40 to 120 ° C
resolution	0.1 ° C
Accuracy	+/-0.1 ° C
Relative humidity	0 to 100 #i6per #
resolution	0.1 ° C
Accuracy	+/-1.5#i6per#
Absolute pressure	300 to 1200hPa
resolution	0.1 HPA
Accuracy	0.01MBAR (0.1m)
exposure	0 to 1050 W/m2 (460-940 nm)
resolution	0.1
Accuracy	10#i6per#
UV factor	0 to 20 (300-400 nm)
resolution	0.1
Accuracy	0.5
thunderstorm detector	0 to 40km
resolution	1km
	1-10 seconds
Dimensions	250 x 277.6 x 77.9 mm.
Recommended power	12V/60MA POE Passive
operating temperature	-30 to +60 ° C
cable length	0.3 M CAT6 with LED indication of power and activity
