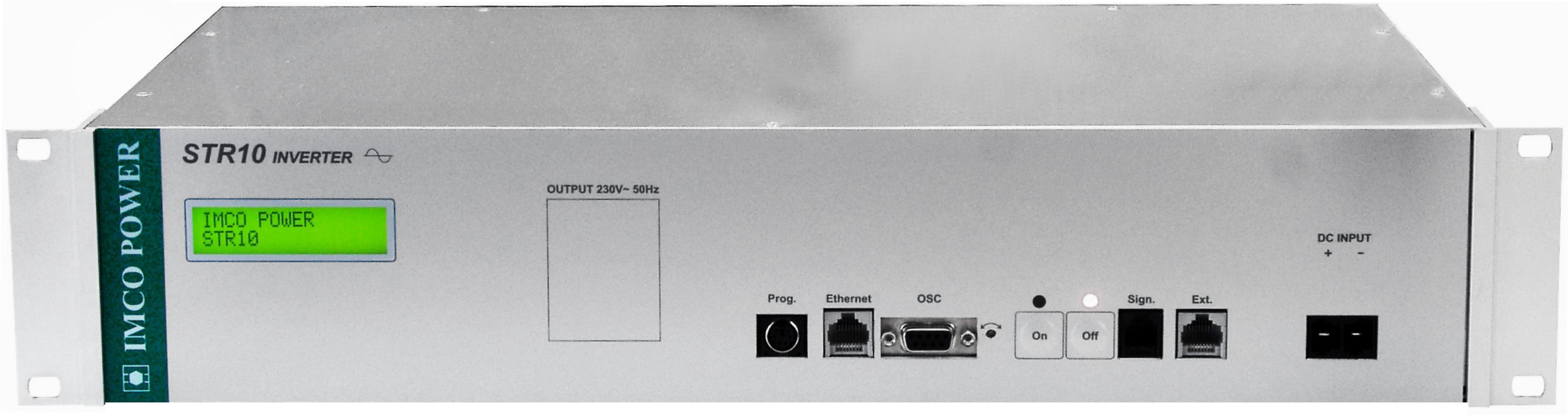

IMCO POWER STR10.E 11010TL, inverter 110V DC/230V AC, 1000VA

Name: IMCO POWER STR10.E 11010TL, inverter 110V DC/230V AC, 1000VA
Brand: IMCO POWER
SKU: 30912
Price: 1138.27 EUR
Availability: OutOfStock

Inverter 110VDC/230V ~ 50Hz (1000VA)-19"2U, with PMVER1 display, with parallel shifting.More information

Producer

IMCO POWER

Part No.

EV001915

Code

00029801

Warranty

36 Month

Availability

Availability in stores

Order

Your price

Price after login

Ask for a better price

Description

The str10 inverter converts 110VDC (82-130 V) to an AC voltage of 230V ~ 50Hz with a sinus. The device has overload protection, input support, short-circuit at output and thermal protection.

Inventor is suitable for mounting up to 19"rack , which occupies 2u (88 mm). The device is equipped with a LED and LCD , remote signaling is solved via less relay contact .
Outputs (4x) are on the back-2x socket, 2x Euro GTK0-2 connector, DC input is in removable front with wire connection to a cross-section of 16 mm^2

The device also includes supervisory system-you can monitor 2 external inputs .

Package content: inverter

Parameters

Ethernet parameters
DC Output Voltage (V)	230
Input Voltage (V)	110
Insulation strength	3 kV
Local signalling	LED, LCD
Properties	Tepelná ochrana
Remote signalling	Kontakty relé
Výstupní výkon (VA)	1000
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	278
Design	Rackmount
Efficiency (%)	93
Height (mm)	88
Operating Temperature	-25° až +50°C
Weight (kg)	3.8
Width (mm)	436
Powering
PoE	No
