IMCO POWER PS1500.T 4845, backup power supply 48V/45A, 2484W

Name: IMCO POWER PS1500.T 4845, backup power supply 48V/45A, 2484W
Brand: IMCO POWER
SKU: 31109
Price: 1086.02 EUR
Availability: InStock

Backup power 3x230V ~ 50Hz/55.2V (45A) 19"2U, with supervision PMVer1, the possibility of parallel shifting, rapidMore information

Producer

IMCO POWER

Part No.

EV000374

Code

00029998

Warranty

6 Month

Availability

Availability in stores

Order

Your price exc. VAT

897.54 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 086.02 EUR inc. VAT

Ask for a better price

Description

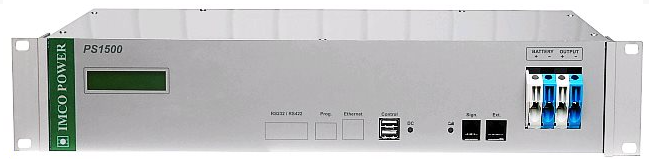

Backup source PS1500.T in 19" is used to back up the power supply 48 (55.2) V . Hz.
The source is equipped with a local LED indication, the remote signaling is via free relay contacts. In the event of a network power failure, the connected battery ensures unloading the load power . After renewing the network, the source ensures correct high-speed battery for its full capacity and subsequently maintaining it, with the surrounding temperature.

The source is designed to install the 19 'frames . The network connection is via moving inlet on the back, terminals and connectors for connecting battery, output. The signaling is on the front.

Package content: Source

Parameters

Ethernet parameters
Battery charging current	15 A
DC Output Voltage (V)	55.2
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Output Current (A)	45
Power consumption (W)	2610
Remote signalling	Kontakty relé, Výpadek měniče, V bat <45.9V
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	446
Design	Rackmount
Efficiency (%)	94
Height (mm)	88
Odpojovač baterie (V)	42
Operating Temperature	-25° až +50°C
Weight (kg)	6.2
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
