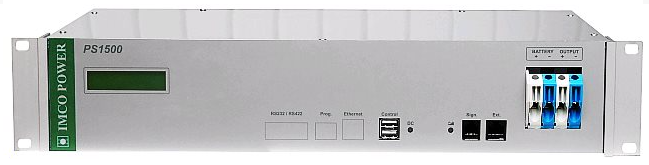

      IMCO POWER PS1500.JS 4830, backup power supply 48V/30A, 1740W, SNMP
      Compare Set Watchdog

      IMCO POWER PS1500.JS 4830, backup power supply 48V/30A, 1740W, SNMP

      Backup power 230V ~ 50Hz/55.2V (30A) 19"2U, with supervision PMVer1, SNMP, the possibility of parallel shifting, rapidMore information

      Producer
        IMCO POWER

      Part No.


      EV000373


      Code
       00029997
      Warranty
      36 Month
      Availability

      to 1 month
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      1 010.32 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      1 222.49 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        PS1500.J (D) backup power supply is used to bacish 48 V devices. It is composed of 1 (2) modular converters with total power up to 1740 W (depending on type). The source has a power supply of 1 (2) x 230 V ~ 50 Hz. If necessary, parallel (parallel-medant) operation can be shifted 2 (3) sources in parallel. Each source has its own battery disconnectors with electronically controlled charging. The source is equipped with a local LED indication, the remote signaling is via free relay contacts and SNMP . In the event of a network power failure, the connected battery ensures non-free load power supply. After renewing the network, the source ensures correct high-speed battery for its full capacity and subsequently maintaining it, with the ambient temperature.

        Sources are produced in the following copies:
        • PS1500.J (D) (S) XXYY-J \u003d 1 Power input, D \u003d 2 inputs, S \u003d SNMP S Web, xx determines the output voltage, YY determines the output current
        • For parallel operation of sources, interconnection of resource control via the communication cable PS1500.USB.
        • Distribution strips with inputs, output and battery distribution, and BY-pass battery labeled DL3U PS1500.J (D).


        The source is designed to mount up to 19 ”frames. The network connection is via moving inlet on the back, clamps and connectors for battery connection, output. Signaling and SNMP is on the front.

        parameters

        name value
        input voltage 1x 230 V, 50 Hz
        output voltage 55.2 V (30 A)
        Output Power 1 740 W
        Efficiency 94#i6per#
        insulation strength input/output 4 kv
        Operating temperature -25 ° C to 50 ° C
        Local signaling LED, LCD
        Remote signaling relay contacts, SNMP, changer outage, vbat <45.9 V
        The option of parallel shifting Yes
        Short-circuit resistance 33 and
        Charging Voltage/current 55.2 V/10 and
        Battery Disconnector U_LVD/I_LVD 42 V/60 and
        Covery 19"/2U
        Dimensions W x H x H 436 x 88 x 196 mm
        Weight 4,6 kg
        Circulation IP 20



        Parameters

        Battery charging current 10 A
        DC Output Voltage (V) 55.2
        DIN rail mounting No
        Input Voltage (V) 230
        Insulation strength 4 kV
        IP protection IP20
        Local signalling LED, LCD
        Network interface (Mbps) 10/100/1000
        Operating Temperature -25° až +50°C
        Output Current (A) 30
        Rack mounting Ano
        Remote signalling Kontakty relé, Výpadek měniče, SNMP, V bat <45.9V
        SNMP Yes

        Physical parameters
        Depth (mm) 328
        Design Rackmount
        Efficiency (%) 94
        Height (mm) 88
        Odpojovač baterie (V) 42
        Weight (kg) 4.6
        Width (mm) 436

        Powering
        PoE No
        Power consumption (W) 1740
        Typ zdroje Zálohovaný
