IMCO POWER PS1500.JS 4815, backup power supply 48V/15A, 830W, SNMP

Backup source type PS1500.JS, with power 830 W, is used to power and backup 48 in DC devices. It has its own battery disconnectors.More information

Producer

IMCO POWER

Part No.

EV001192

Code

00029996

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

766.92 EUR exc. VAT

VAT

21%

Your price inc. VAT

927.97 EUR inc. VAT

Ask for a better price

Description

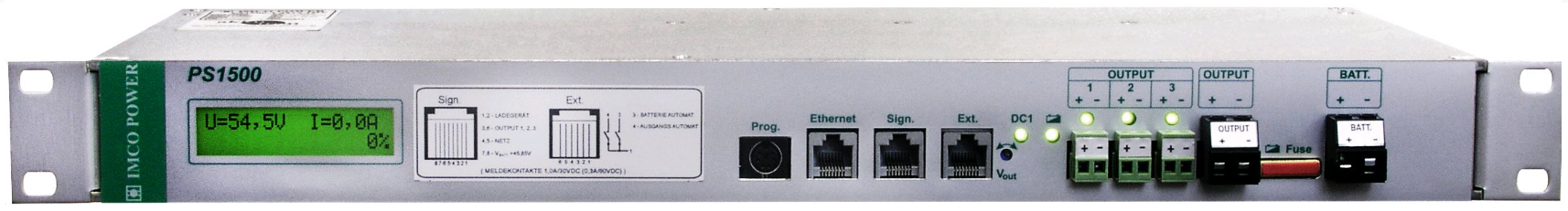

Backup source PS1500.JS 4815 in 19" for Backup 48 (55.2) V devices with overall power up to 830 W . />
The source is equipped with Local indication LED and LCD and remote connection via Ethernet and SNMP. In addition to the main 15 and output, the source 3 has other electronically secured outputs up to 6 A. The source has 4x remote signaling via relay contact-network failure, resource failure, output failure 1, 2, 3 and battery capacity decrease in 1. Source can monitor 2 binary input signals-eg contact protection and output. In the event of a network power failure, the connected battery ensures non-free load power supply. After renewing the network, the source ensures correct recharge of the battery to its full capacity.

The source is designed for mounting to 19"frame . The network connection is via the movable inlet on the back, connectors for connecting battery, outputs, external inputs, signaling and SNMP are on the front.

Package Contents: Source

Parameters

Ethernet parameters
Battery charging current	10 A
DC Output Voltage (V)	55.2
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Output Current (A)	15
Power consumption (W)	870
Rack mounting	ano
Remote signalling	Kontakty relé, Výpadek měniče, V bat <45.9V, SNMP
SNMP	Yes
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	196
Design	Rackmount
Efficiency (%)	94
Height (mm)	88
Odpojovač baterie (V)	42
Operating Temperature	-25° až +50°C
Weight (kg)	3.1
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
