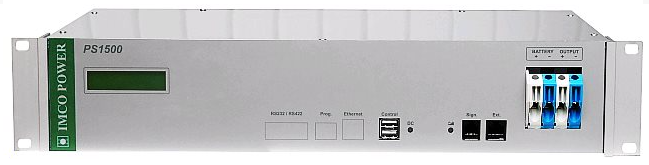

IMCO POWER PS1500.JS 2425, backup power supply 24V/25A, 690W, SNMP

Name: IMCO POWER PS1500.JS 2425, backup power supply 24V/25A, 690W, SNMP
Brand: IMCO POWER
SKU: 31104
Price: 1048.45 EUR
Availability: OutOfStock

the possibility of parallel shift, rychlonabíjeníZáložní supply 230V ~ 50Hz/27.6V (25A) 19"2U, with supervision PMVer1, SNMP,More information

Producer

IMCO POWER

Part No.

EV000370

Code

00029993

Warranty

36 Month

Availability

Availability in stores

Order

Your price exc. VAT

866.49 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 048.45 EUR inc. VAT

Ask for a better price

Description

Backup source PS1500.JS 2425 in 19", used to back up 24 (27.6) in devices. Compares from 1 (2) Modular converters with total power 690 W . In ~ 50 Hz.
The source is equipped with a local indication LED , the remote signaling is via free relay contacts. In the event of a network power failure, the connected battery ensures unloading the load power . After renewing the network, the source ensures correct high-speed battery for its full capacity and subsequently maintaining it, with the surrounding temperature.

Source is designed to install in 19"frames . Connecting to the net is via moving inlet on the back, clamps and connectors for battery connection, output.

Package content: Source

Parameters

Ethernet parameters
Battery charging current	10
DC Output Voltage (V)	27.6
DIN rail mounting	No
Input Voltage (V)	230
Insulation strength	4 kV
IP protection	IP20
Local signalling	LED, LCD
Output Current (A)	25
Power consumption (W)	720
Rack mounting	Ano
Remote signalling	Kontakty relé, Výpadek měniče, SNMP, V bat <22.9V
SNMP	Yes
Network interface (Mbps)	10/100/1000
Physical parameters
Depth (mm)	196
Design	Rackmount
Efficiency (%)	92
Height (mm)	88
Odpojovač baterie (V)	21
Operating Temperature	-25° až +50°C
Weight (kg)	2.9
Width (mm)	436
Powering
PoE	No
Typ zdroje	Zálohovaný
